Overview
Specification
| Parameter | Specification | Notes |
|---|---|---|

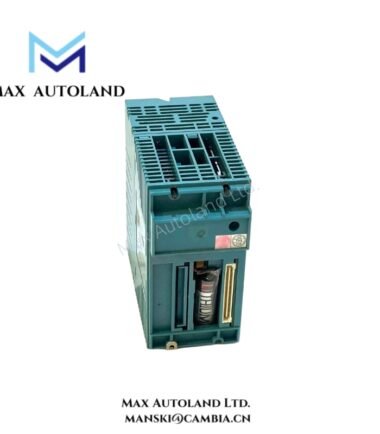

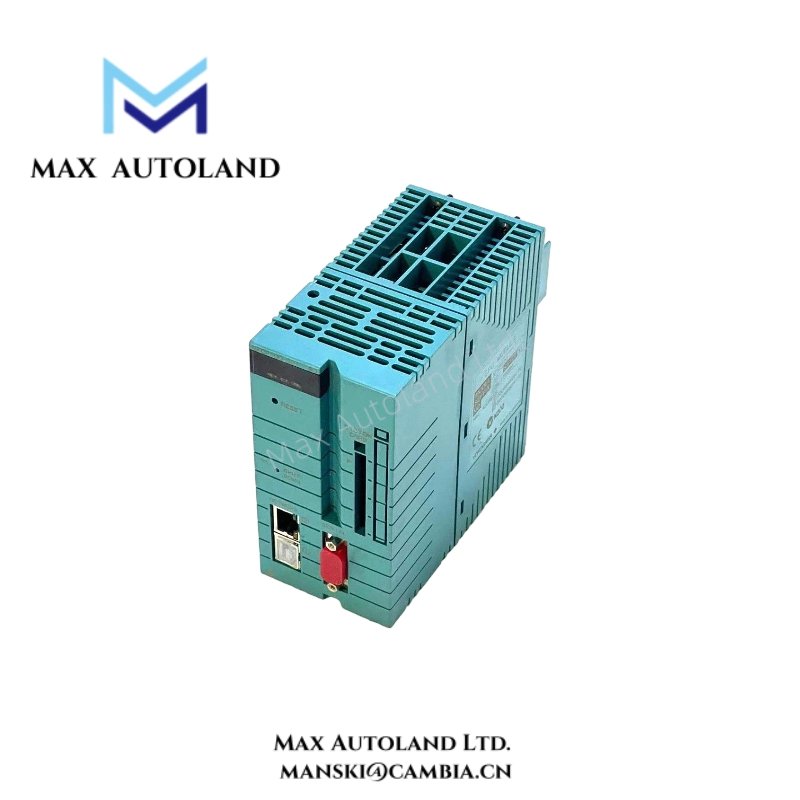

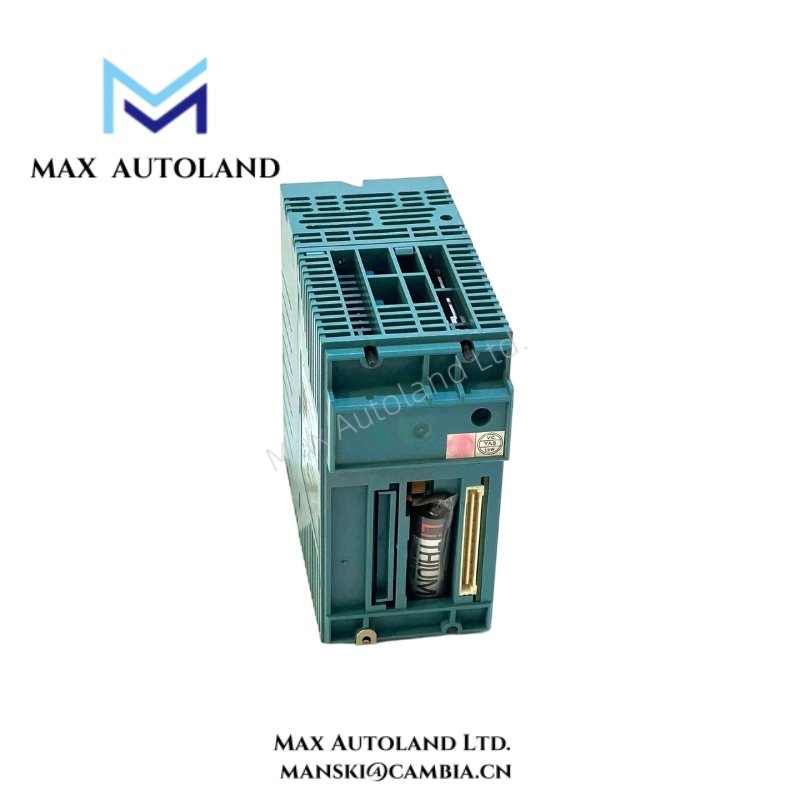

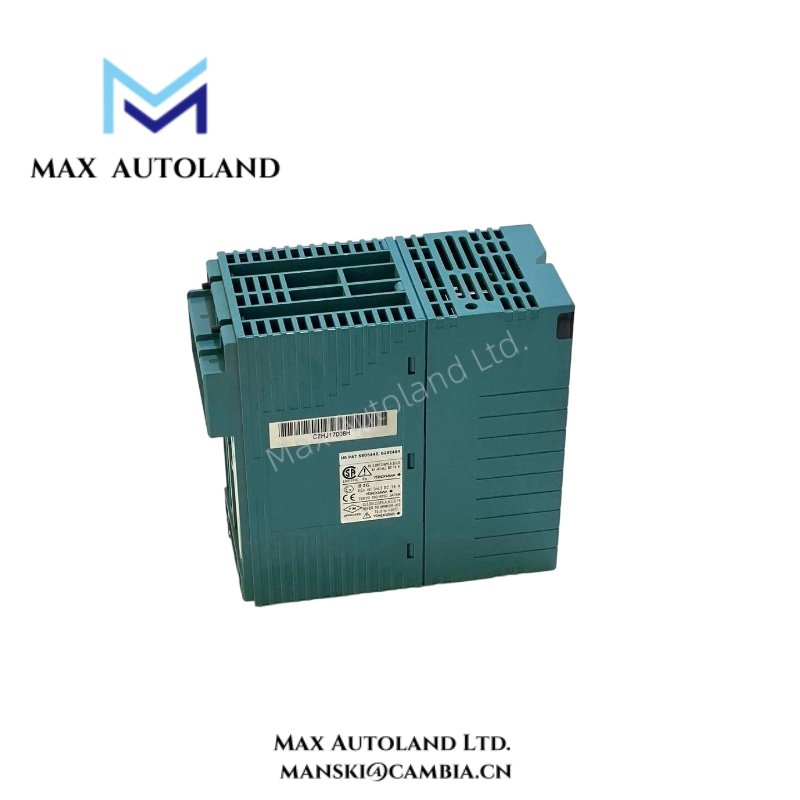

| Product Type | CPU Module | NFCP502-S05 S2 |
| Processor | High-performance embedded CPU | Optimized for industrial control tasks |
| Memory | 128 MB RAM, 64 MB Flash | Stores program and process data |
| Communication | IS-Link, Ethernet, PROFIBUS | Supports distributed and networked systems |
| I/O Support | CENTUM VP standard I/O modules | Compatible with digital and analog signals |
| Redundancy | Optional CPU redundancy | For continuous operation |
| Operating Voltage | 24 VDC ±10% | Standard industrial supply |
| Power Consumption | 25 W typical | Energy-efficient design |
| Mounting | Rack or cabinet mount | Fits standard CENTUM VP racks |
| Dimensions | 160 × 220 × 45 mm | Approximate module size |
| Weight | 0.8 kg | Lightweight industrial module |
| Operating Temperature | 0–55°C | Industrial temperature range |
| Storage Temperature | -20–70°C | Suitable for warehouse storage |
| Humidity | 5–95% non-condensing | Standard industrial environment |
| Certifications | CE, SIL2 | Meets safety and quality standards |
| Diagnostics | Status LEDs and self-monitoring | Facilitates troubleshooting |
| Maintenance | Hot-swappable module | Supports replacement without shutdown |
FAQ
A1: The CPU module provides high-performance logic execution, data processing, and communication for advanced process automation systems.
A2: Yes, it integrates seamlessly into the CENTUM VP architecture, supporting scalable and modular system upgrades.
Q3: Can this CPU module operate reliably in harsh industrial environments?
A3: Yes, its robust design ensures continuous operation and long-term reliability under demanding conditions.
Q4: What type of processes is the NFCP502-S05 S2 suited for?
A4: It is ideal for complex plant operations requiring precise control, real-time data handling, and reliable system communication.
Q5: Does the module support high-speed data processing?
A5: Yes, it efficiently executes logic and processes large volumes of plant data to ensure timely operational control.
