Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

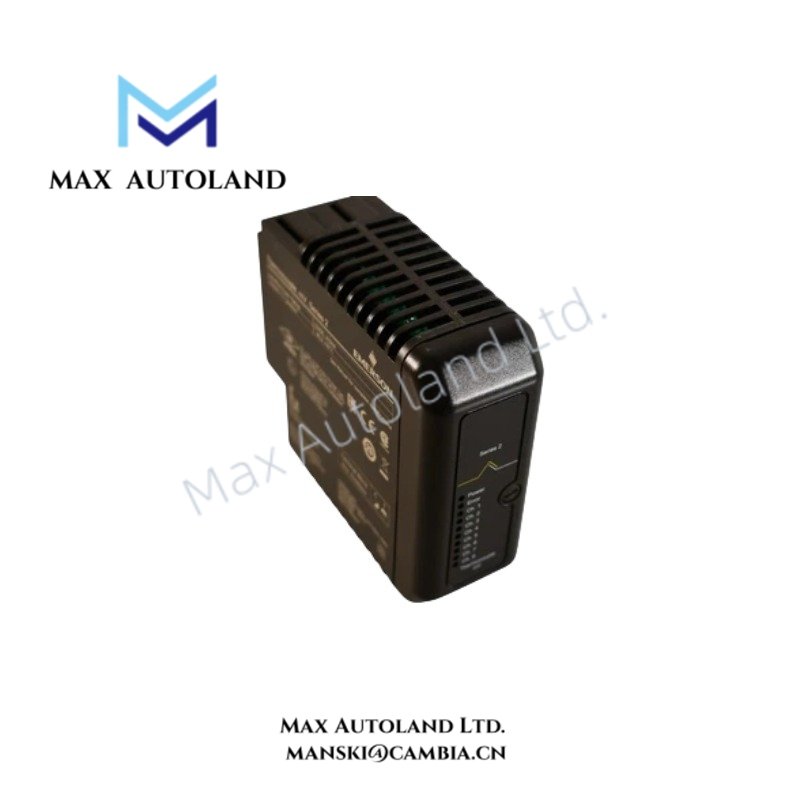

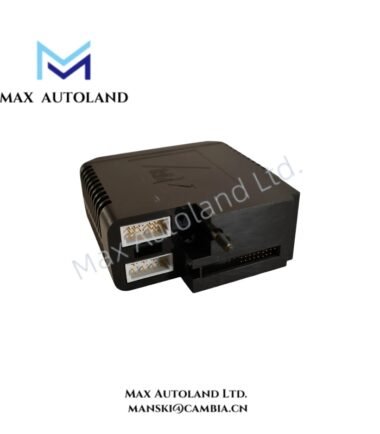

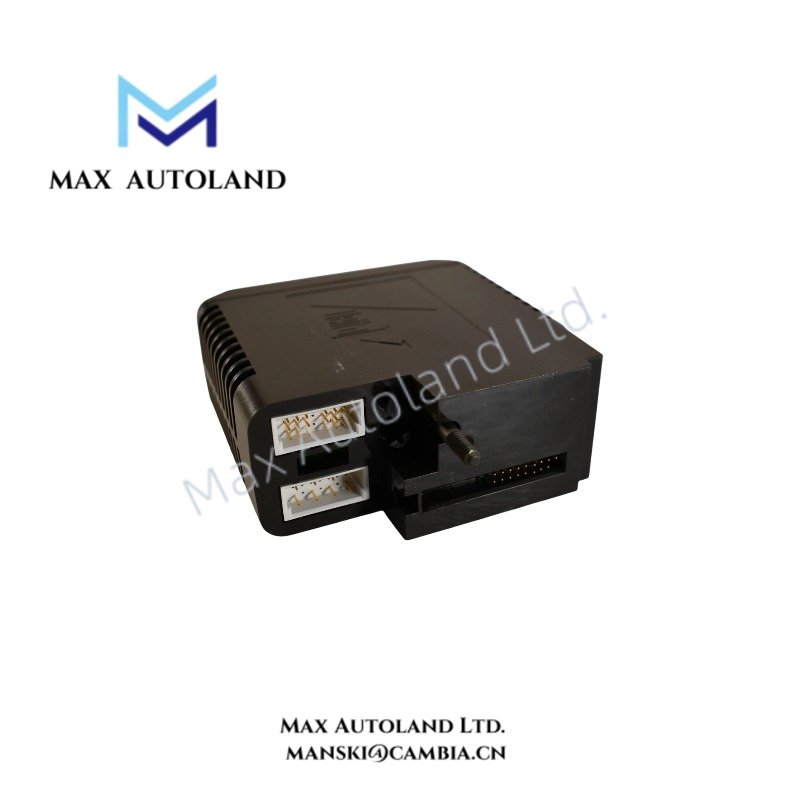

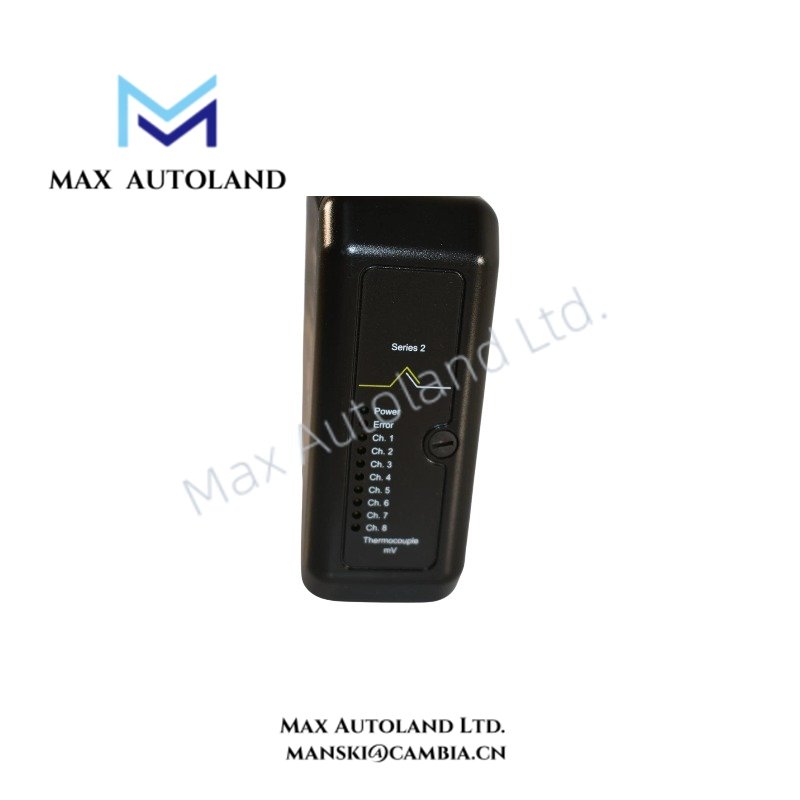

| Model | KJ3224X1-BA1 |
| Brand | Emerson |
| Product Type | Thermocouple / mV Input Module |
| System Platform | Emerson DeltaV S-series |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Local Bus Power: 12 VDC at 210 mA |
| Input Signal Type | Thermocouple and mV input |
| Hazardous Area Certification | II 3 G Ex nA [ic] IIC Gc; II 3 G Ex nA [nL] IIC Gc |
| Certification Reference | FM13ATEX0034U; IECEx FMG 13.0015U |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
Cold Junction Compensation and Signal Processing
The Emerson DeltaV KJ3224X1-BA1 performs thermocouple and mV signal acquisition through the DeltaV I/O architecture. The module supports temperature measurement applications through thermocouple input processing and provides cold junction compensation (CJC) functions required for thermocouple measurement accuracy.
Furthermore, the module design supports channel-level signal handling within the DeltaV S-series platform. It maintains electrical separation between field signal circuits and system communication paths to support industrial process measurement configurations.
Frequently Asked Questions
Q: Can the KJ3224X1-BA1 module be removed while system power is energized?
A: No. Field power supplied to the device must be removed before removing or connecting the module. The unit cannot be removed or inserted with system power energized.
Q: Does the KJ3224X1-BA1 require user calibration or internal adjustment?
A: No. The module contains no user serviceable parts and does not require calibration during normal operation.
Q: How is compatibility between the I/O card and terminal block maintained?
A: A rotary keying system ensures compatibility after installation. The terminal block keys must match the assigned I/O card configuration.
Field Installation Guidelines
- Verify that field power is removed before module installation or removal.
- Confirm terminal block key position settings before connecting the I/O card.
- Install the module according to the DeltaV S-series and CHARMs Hardware Installation manual.
- For hazardous area applications, follow the DeltaV Scalable Process System Zone 2 Installation Instructions document 12P2046.
- Maintain proper field wiring separation between thermocouple/mV signal cables and high-energy conductors.
- Apply appropriate shield grounding practices according to plant electrical standards.
- Inspect the product label for serial number, manufacturing date, and installation location information before commissioning.
