Overview
Specification
| Parameter | Specification | Details / Notes |
|---|---|---|

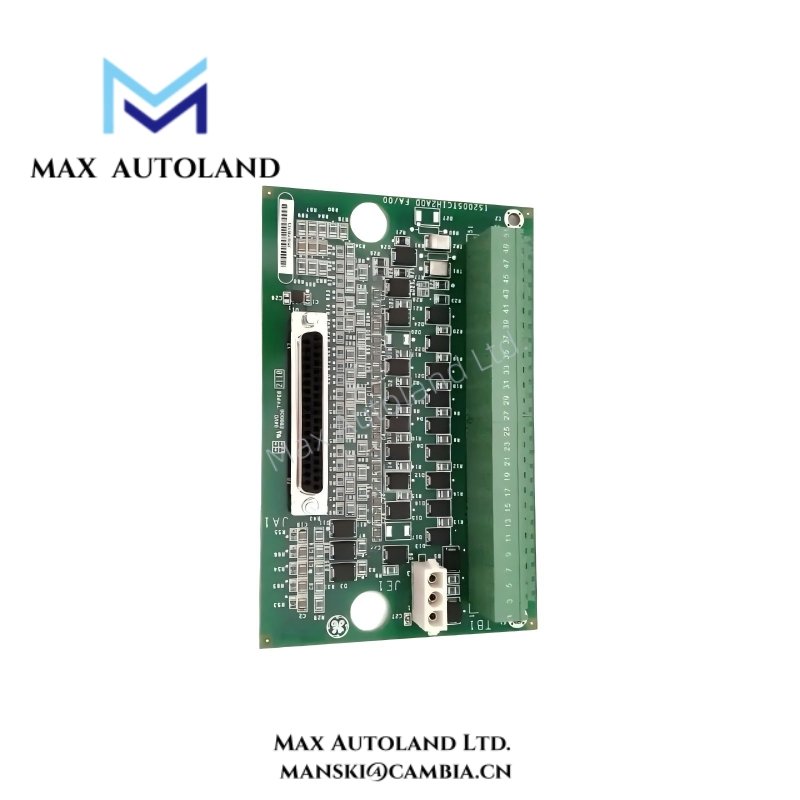

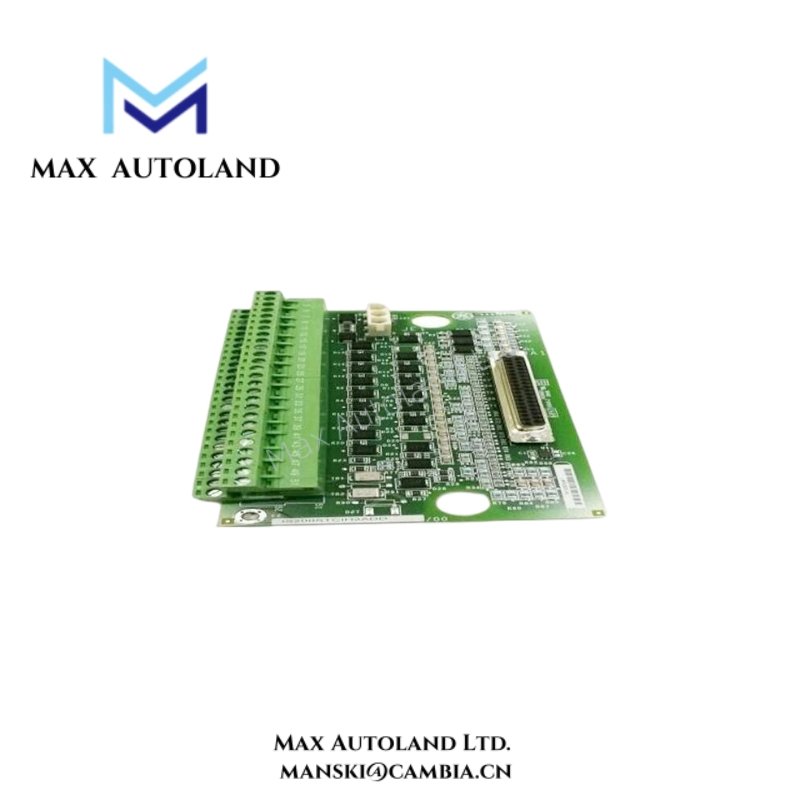

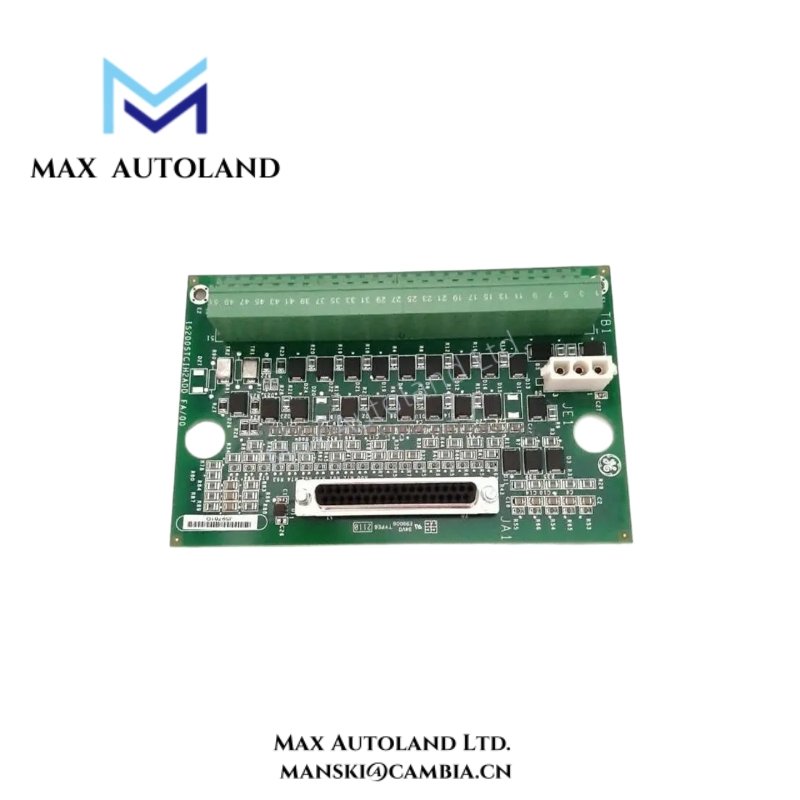

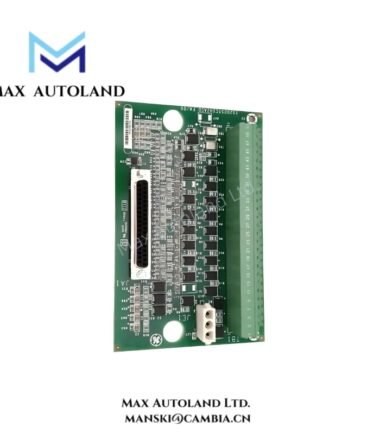

| Model | IS200STCIH2A（IS230SNCIH2A) | Standard GE Fanuc I/O Terminal Board |
| Module Type | I/O Module Terminal Board | Supports analog and digital I/O wiring |
| Function | Signal interface for turbine and process control | Provides organized connection points between field devices and control systems |
| Compatible Systems | GE Fanuc Mark V / Mark VIe | Supports both legacy and modern turbine control architectures |
| Terminal Points | 32 standard points | Each terminal clearly labeled for easy identification |
| Signal Types | Analog 4-20 mA, Digital | Supports both current loop and logic-level signals |
| Terminal Type | Screw-type | Ensures secure wiring and reduces contact resistance |
| Isolation | Channel-to-channel & channel-to-ground | Improves safety and signal integrity |
| Max Wire Size | 12–24 AWG | Compatible with standard industrial wiring sizes |
| Operating Voltage | 24 VDC nominal | Meets typical industrial control voltage standards |
| Current Rating | 1 A per terminal | Suitable for most sensor and actuator connections |
| Operating Temperature | 0°C to 70°C | Suitable for standard industrial environments |
| Storage Temperature | -40°C to 85°C | For long-term storage and shipment safety |
| Relative Humidity | 5% to 95% non-condensing | Supports high-humidity industrial conditions |
| Mounting | DIN rail or backplane | Flexible installation options for panels or racks |
| Dimensions | Approx. 150 mm x 100 mm x 35 mm | Compact form factor for efficient panel layout |
| Weight | Approx. 0.6 kg | Lightweight for easy installation |
| Diagnostics | Supports field circuit inspection and continuity checks | Enables preventive maintenance and troubleshooting |
| Compliance | CE, UL listed | Meets industrial safety and quality standards |
FAQ
A1: Yes, it integrates seamlessly with both GE Fanuc Mark V and Mark VIe control systems.
Q2: How many terminal points does this board support?
A2: It provides 32 terminal points for standard analog and digital signal connections.
Q3: What types of signals can be connected to this terminal board?
A3: The board supports both analog 4-20 mA and standard digital signals.
Q4: Can this board withstand harsh industrial environments?
A4: Yes, its rugged design ensures consistent performance in demanding conditions.
Q5: Does the board allow easy field inspection and maintenance?
A5: Yes, its modular layout and clear labeling facilitate straightforward access and inspection.
