Overview
Specification
| Feature | Specification |
|---|---|

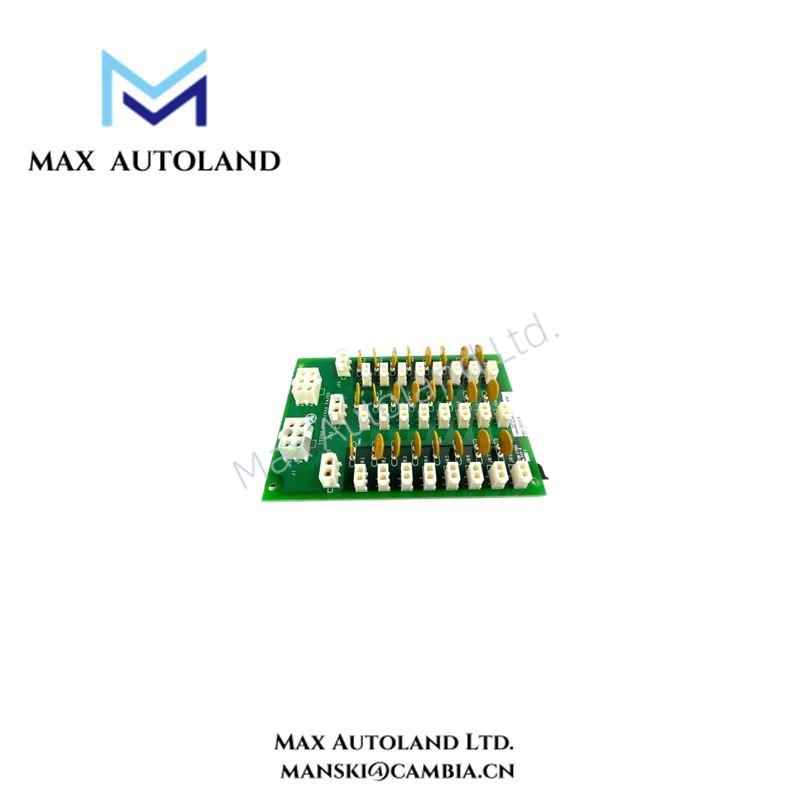

| Model | IS200JPDHG1AAA |
| Manufacturer | General Electric (GE) |
| Series | Mark VIe |
| Function | High-Density Power Distribution |
| Nominal Voltage | 24/28 V DC |
| Operating Temperature | -30°C to +65°C |
| Mounting | DIN-Rail Card Carrier |
| Connectors | 29 female plug connectors (2 six-pin, 27 two-pin) |
| Power Distribution Capacity | Supports up to 24 Mark VIe I/O packs and 3 Ethernet switches |
| Expansion Capability | Daisy-chain configuration for larger systems |
| Circuit Protection | PTC fuses on each I/O connector |
| Hazardous Location Certification | Yes, according to GEH-6725R Instruction Guide |
| Weight | Approximately 0.5 kg |
| Dimensions | 37 x 30 x 4 cm |
FAQ
A: Yes, the IS200JPDHG1AAA is certified for hazardous locations according to the GEH-6725R Instruction Guide.
Q: Can multiple IS200JPDHG1AAA cards be connected together?
A: Yes, multiple cards can be connected in a daisy-chain configuration to expand power distribution to additional I/O packs.
Q: What is the operating temperature range of the IS200JPDHG1AAA?
A: The operating temperature range is from -30°C to +65°C.
Q: What is the power distribution capacity of the IS200JPDHG1AAA?
A: It supports up to 24 Mark VIe I/O packs and 3 Ethernet switches.
