Overview

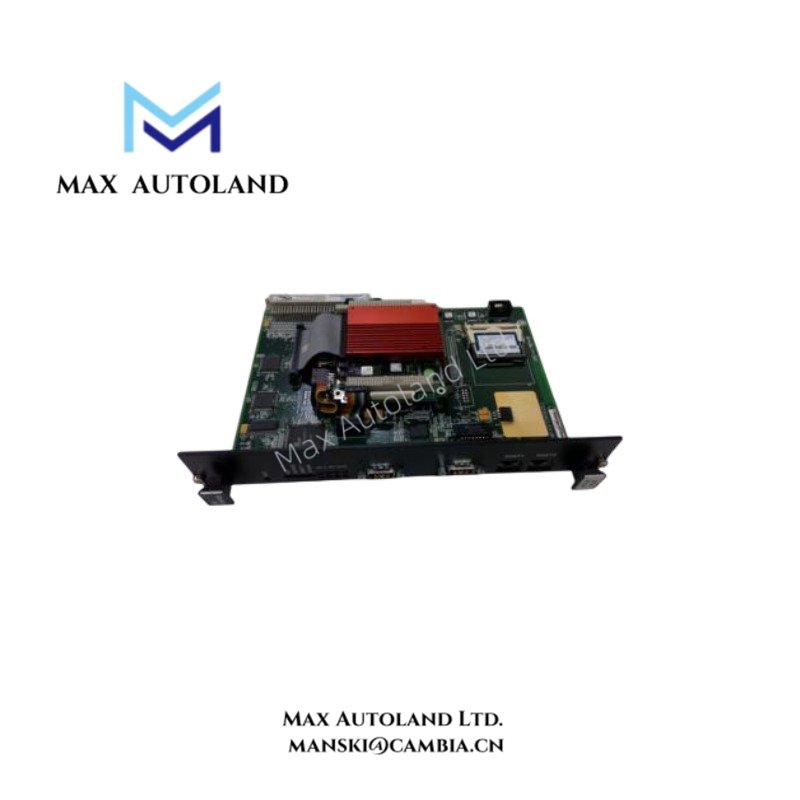

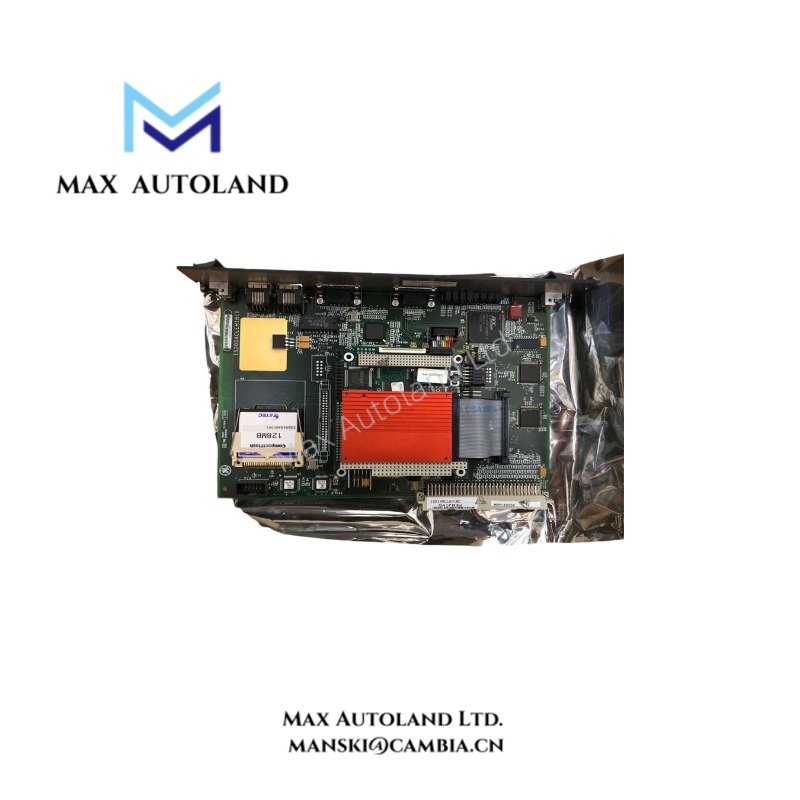

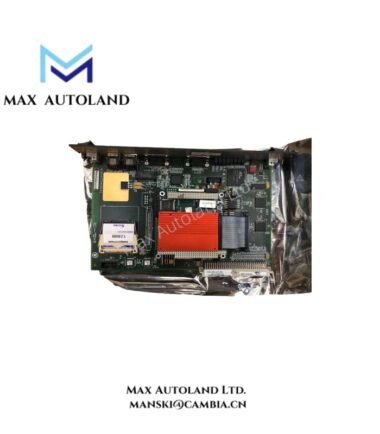

The GE IS200ACLEH1BAA is an Application Control Layer (ACL) module for the EX2100 control system. It serves as a microprocessor-based controller that manages control tasks and communicates with other system components through Ethernet and ISBus interfaces. The module includes 8 MB of DRAM, 4 MB of flash memory for BIOS, a PCI controller, and 128 KB of Level 2 cache.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IS200ACLEH1BAA |
| Brand | General Electric (GE) |
| Product Type | Application Control Layer Module |
| Series | EX2100 |
| Module Function | Microprocessor-based control and task management |
| DRAM | 8 MB |
| BIOS Flash Memory | 4 MB |
| Level 2 Cache | 128 KB |
| Integrated Controller | CPU and PCI controller |
| Communication Interfaces | Ethernet, ISBus |
| Additional Interfaces | COM1 and COM2 serial ports |
| Bus Interface | Bus target interface |
| Installation | Two half-slots in a compatible board rack |
| Drive Backplane Connection | P1 connector, 4-row, 128-pin |
| Exciter Backplane | EBKP |
| Weight | 2.9 lb |
| Country of Manufacture | United States |
| Availability | In stock |
| Manual Reference | GEI 100434A |
Functional Description
The IS200ACLEH1BAA processes control tasks within the EX2100 platform and exchanges data with other control components. Its CPU executes control software, while the PCI controller supports communication between internal hardware components. The cache memory provides fast access to frequently used instructions and data during processor operations.
Communication and Hardware Interfaces
The module supports Ethernet communication and an ISBus interface for exchanging information with connected system components. COM1 and COM2 provide additional serial communication channels. The exact protocols, transmission rates, and port configuration depend on the applicable system documentation.
Installation and Backplane Connection
The ACL module occupies two half-slots in a compatible Innovation Series drive or EX2100 exciter board rack. In drive applications, it connects to the Control Assembly Backplane Board (CABP) through a P1 connector with four rows and 128 pins. In EX2100 exciter applications, the module mounts on the Exciter Backplane (EBKP).
Before replacement, verify the complete part number, rack configuration, and backplane connection. The physical fit alone does not confirm electrical or functional compatibility with a particular control system.
Frequently Asked Questions
Q: What is the primary function of the IS200ACLEH1BAA?
A: It acts as a microprocessor-based Application Control Layer module, processing control tasks and exchanging data with other components in the EX2100 control system.
Q: Which communication interfaces does this module support?
A: The supplied specifications identify Ethernet, ISBus, and COM1/COM2 serial ports. Specific protocols and communication settings require confirmation against the applicable system documentation.
Q: How is the IS200ACLEH1BAA installed?
A: It occupies two half-slots in a compatible drive or exciter rack. Drive applications use the P1 connection to the CABP, while EX2100 exciter applications use the EBKP backplane.
