Overview

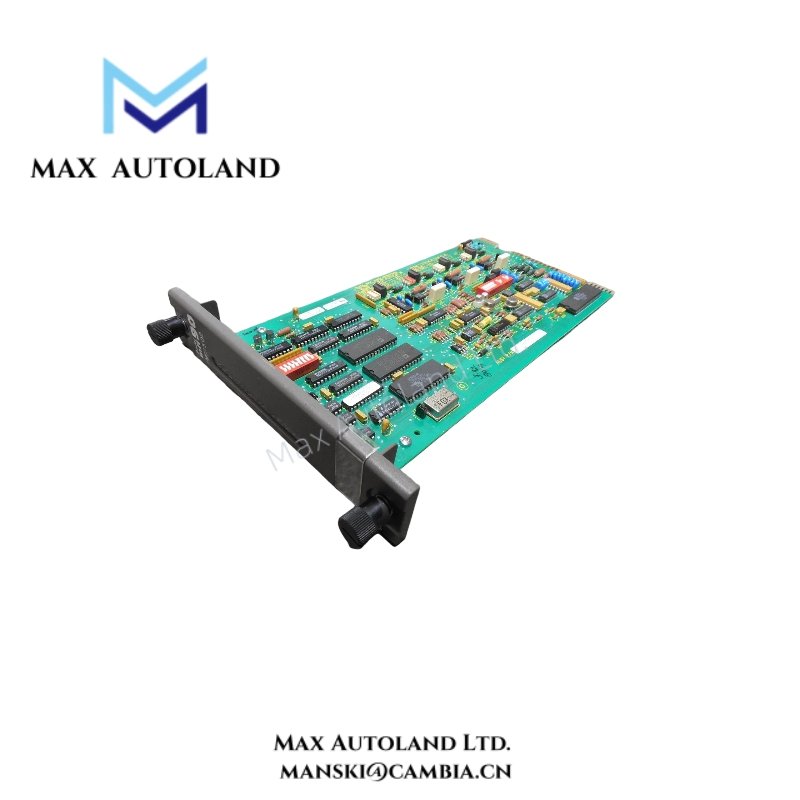

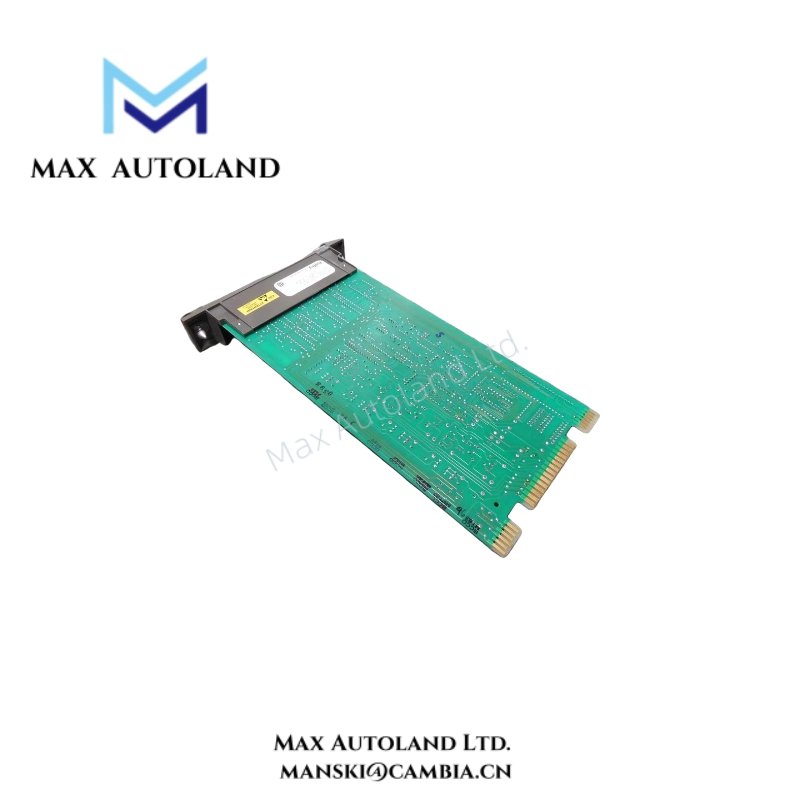

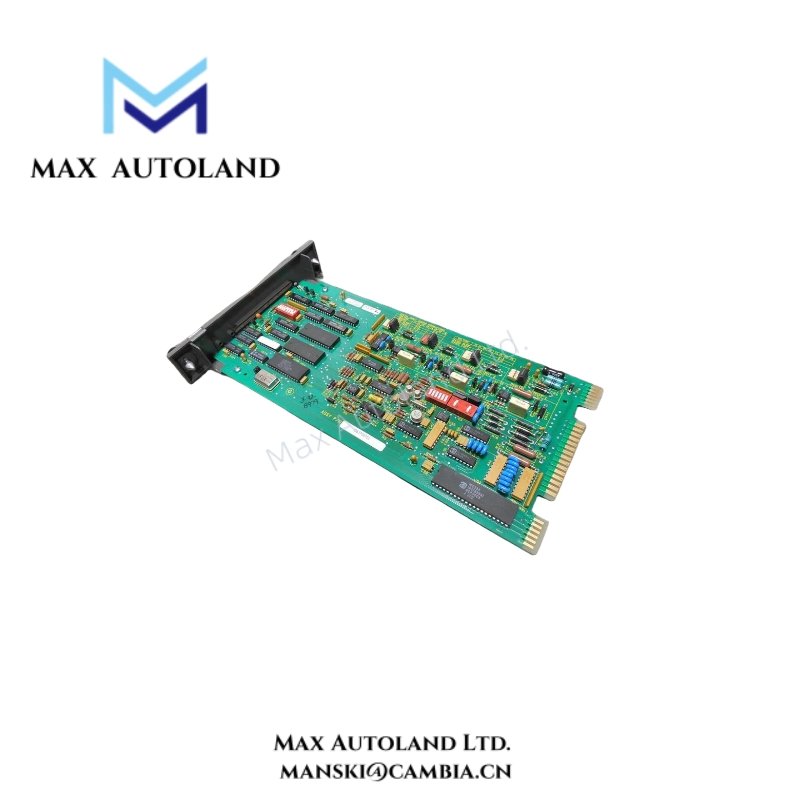

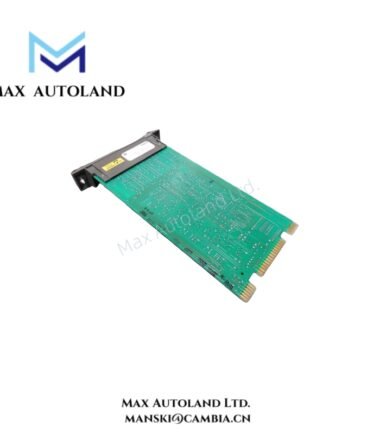

The ABB IMCIS22 Control I/O Slave Module provides reliable digital input and output interfacing for Infi 90 and Net 90 systems. Moreover, it enables seamless communication between field devices and the distributed control system. Its compact design allows for efficient integration into control racks, maintaining organized wiring and accessible installation. Engineers appreciate this module because it supports multiple I/O channels while simplifying system configuration. In addition, its rugged construction ensures consistent performance in industrial environments with demanding operational conditions.
Specification
| Parameter | Specification |
|---|---|
| Model | IMCIS22 |
| Brand | ABB Bailey Infi 90 / Net 90 |
| Module Type | Control I/O Slave Module |
| Input Channels | Multiple digital input channels, configurable |
| Output Channels | Multiple digital output channels, configurable |
| Signal Type | Discrete digital signals (ON/OFF) |
| Communication Protocol | Compatible with Infi 90 / Net 90 bus systems |
| Power Supply | 24 V DC nominal |
| Power Consumption | 5 W typical |
| Mounting | Rack-mounted or panel-mounted |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -20–70°C (-4–158°F) |
| Humidity | 5–95% RH non-condensing |
| LED Status Indicators | Yes, for power, input, and output activity |
| Isolation | Channel-to-channel isolation for signal integrity |
| Dimensions (HxWxD) | 150 x 80 x 120 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, CSA compliant |
| Environmental Compliance | RoHS and REACH |
FAQ
Q1: What type of signals does the IMCIS22 handle?
It supports multiple configurable digital input and output signals for process control systems.
Q2: Is the module compatible with Infi 90 and Net 90 systems?
Yes, it integrates seamlessly with ABB Infi 90 and Net 90 distributed control systems.
Q3: Can it support multiple I/O channels simultaneously?
Yes, the module supports multiple input and output channels for comprehensive monitoring.
Q4: Are there indicators for diagnostics and channel status?
Yes, LED indicators provide real-time operational and I/O channel status information.
Q5: Is the IMCIS22 suitable for harsh industrial environments?
Yes, the module is built to maintain reliable operation under demanding conditions.
