Overview

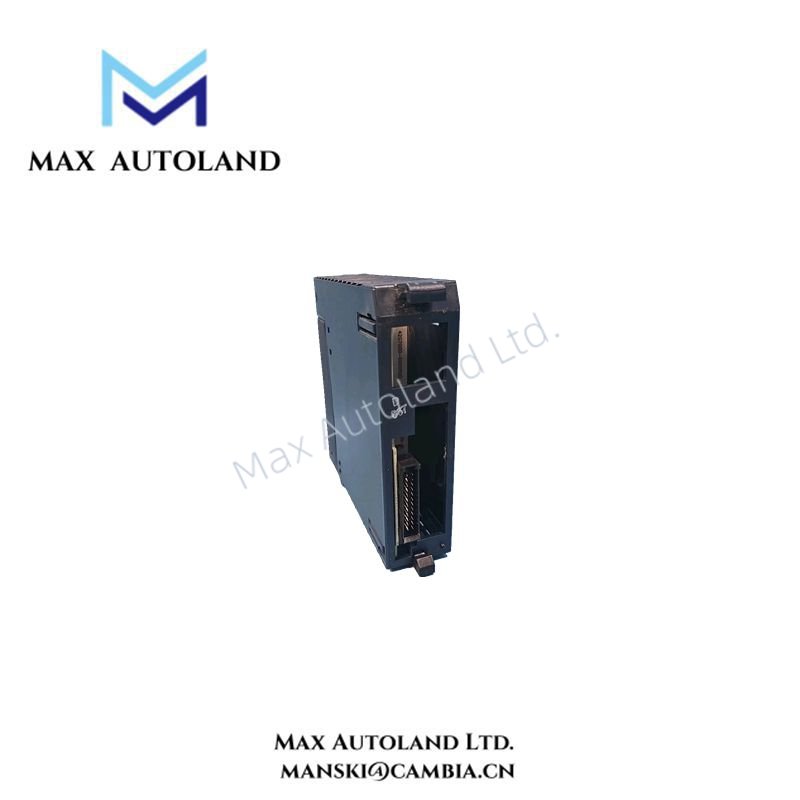

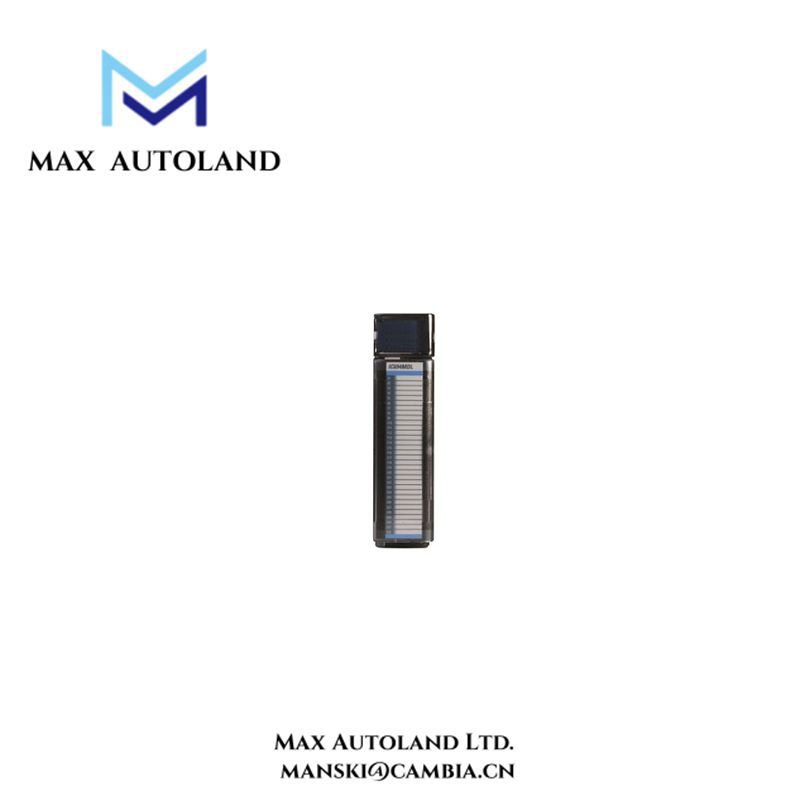

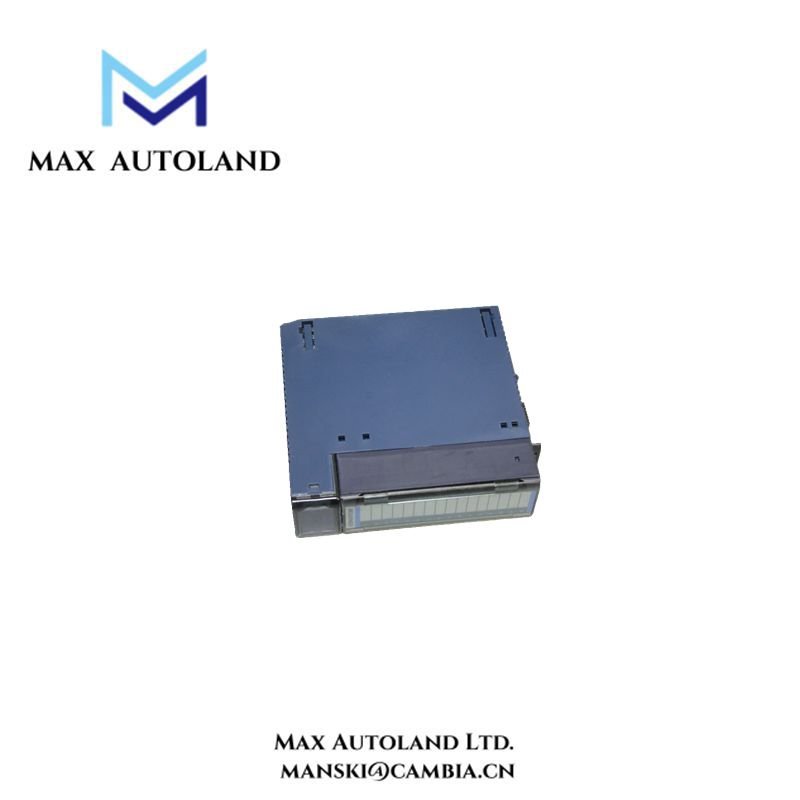

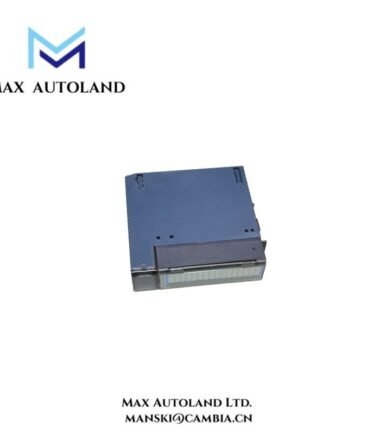

Engineers value the IC694MDL758 for its rugged build and reliable performance across demanding industrial applications. In addition, the module supports electrical isolation for improved safety and interference protection, ensuring stable operation in critical automation systems.
Specification
| Rated Voltage | 12 through 24 volts DC,positive logic |
| Output Voltage Range | 10.2 to 28.8 volts DC |
| Outputs per Module | 32(two groups of sixteen outputs each) |
| Isolation | |
| Field to Backplane(optical)and to Frame Ground | 250 VAC continuous;1500 VAC for 1 minute |
| Group to Group | 50 VAC continuous;500 VAC for 1 minute |
| Output Current UL Approved Load Ratings | 0.5 Amps per point with 8 Amps maximum per group without ESCP trip 0.5 Amps per point pilot duty 0.5 Amps per point resistive |
| Power Consumption | 250 mA(maximum)from 5 volt bus on backplane |
| 33mA(maximum)per group from user supplied isolated 24VDC with all sixteen outputs in group ON | |
| 20mA(maximum)per group from user supplied isolated 12VDC with all sixteen outputs in group ON | |
| Output Characteristics | |
| Inrush Current | 5.4 Amps for 10 ms without ESCP trip |
| On-state Voltage Drop | 0.3 volt DC |
| Off-state Leakage Current | 0.1mA maximum |
| On Response Time | 0.5ms maximum |
| Off Response Time | 0.5ms maximum |
| Installation Environment | Surrounding Air 60C maximum; For use in Pollution Degree 2 environments only |
FAQ
A: Yes, we only sell 100% original, brand-new factory-sealed modules.
Q: Do you keep the IC694MDL758 in stock?
A: Yes, we maintain stock, and shipping takes 3 days to 2 weeks depending on the order size.
Q: Which logistics services are available for delivery?
A: We typically ship through DHL, FedEx, or UPS for fast and secure delivery.
Q: How many output points does the IC694MDL758 provide?
A: It offers 32 DC output points, supporting efficient multi-device control.
Q: What is your return policy for this module?
A: We support returns within 30 days if there are confirmed quality issues.
