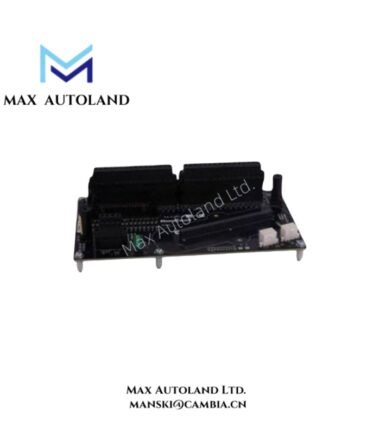

Honeywell 8U-TAIDB1 Analog Input IOTA

The Honeywell 8U-TAIDB1 is a differential analog input Input/Output Terminal Assembly (IOTA) for the Honeywell Series 8 I/O system. It provides a field wiring interface for analog signals and supports a redundant configuration. In addition, this uncoated version helps users identify the required terminal assembly when checking system configuration, signal wiring, and replacement parts.

Key Features

• Differential analog input configuration for supported field signals.
• Redundant configuration for compatible Series 8 I/O systems.
• Uncoated design.
• Field wiring interface for the associated analog input module.

Technical Specifications

Function and Configuration

The 8U-TAIDB1 provides the terminal interface between field wiring and the associated analog input module. A differential input measures the voltage difference between two signal terminals. As a result, the input configuration can help distinguish the intended signal from voltage changes shared by both input leads, within the limits of the connected module.

The redundant design also makes configuration checks important during replacement. Before ordering, verify the existing assembly model and the associated I/O module to ensure that the replacement matches the installed system.

Frequently Asked Questions

Q: What is the main function of the Honeywell 8U-TAIDB1?

A: It provides a differential analog input terminal interface for a compatible Honeywell Series 8 I/O configuration. The associated input module determines the supported signal types and ranges.

Q: Is the 8U-TAIDB1 coated?

A: No. The supplied model description identifies this version as uncoated. Therefore, confirm that the coating specification matches the requirements of the installation.

Q: Can the 8U-TAIDB1 handle both analog inputs and outputs?

A: The available model information identifies it as a differential analog input IOTA. It does not confirm analog output capability, so do not assume that it supports output signals.
