Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

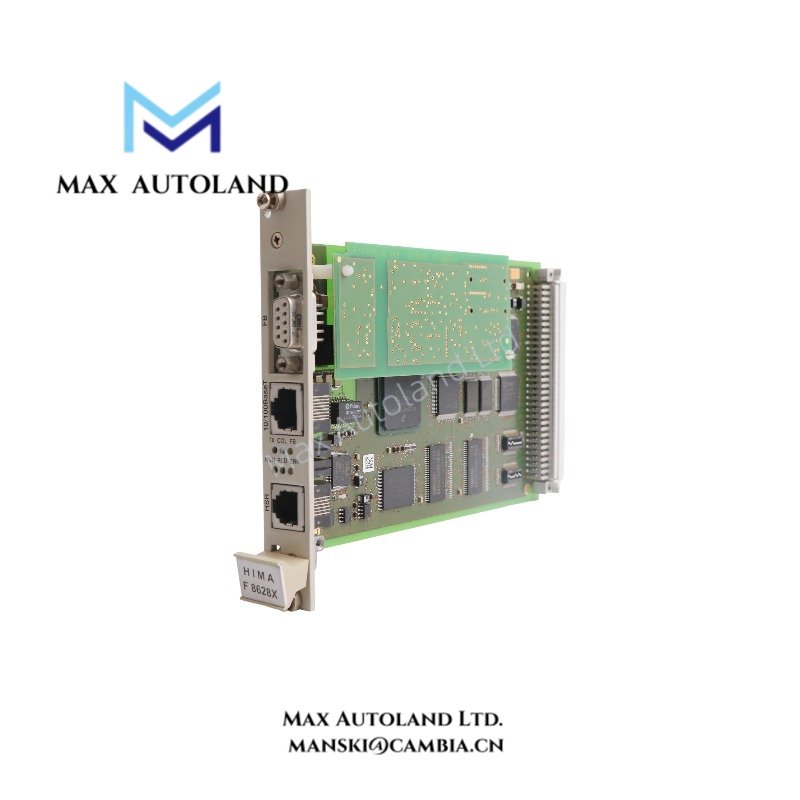

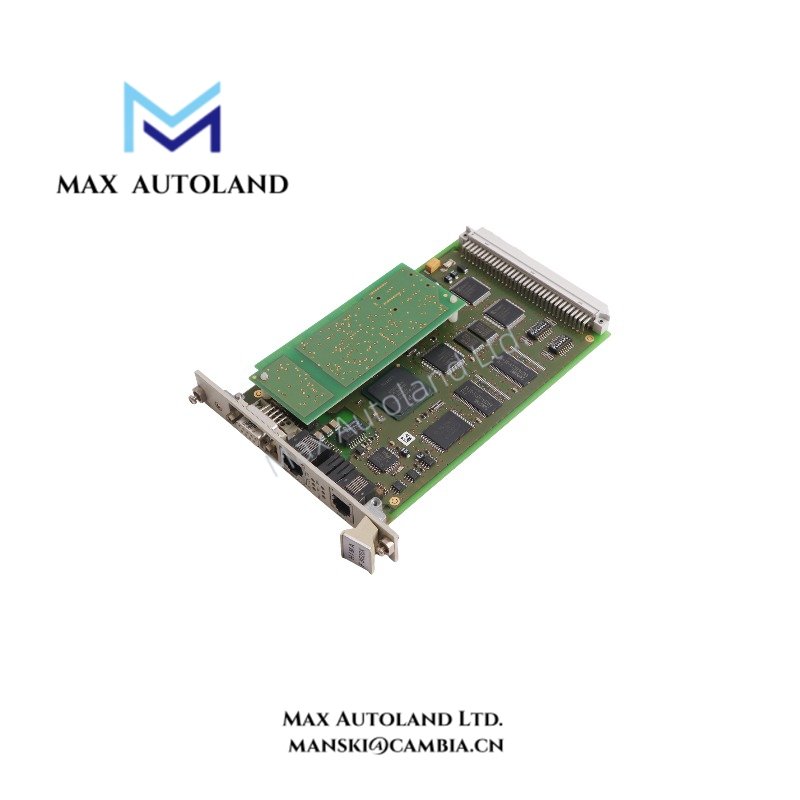

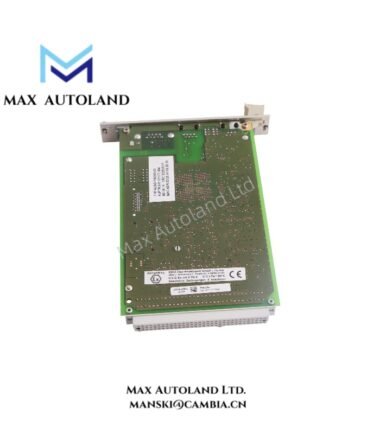

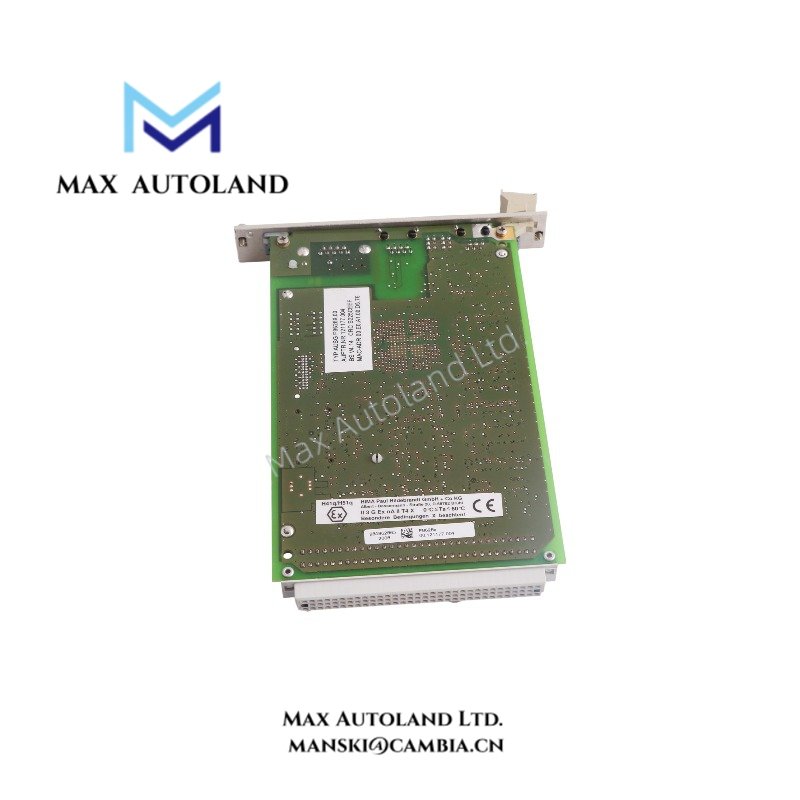

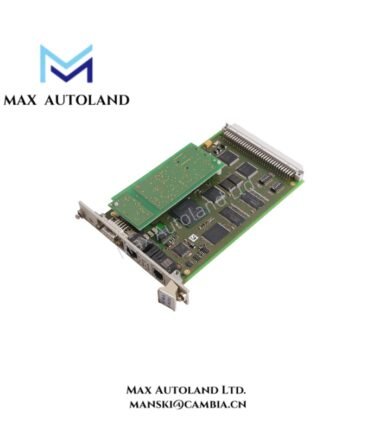

| Model | F8628X |
| Brand | HIMA |
| Product Type | PROFIBUS-DP Slave Communication Module |
| Compatible System | H41q / H51q PES |
| Processor | 32-bit Motorola MPC860T |
| Communication Controller | Integrated RISC communication controller |
| Communication Interface | PROFIBUS-DP via 9-pin SUB-D; 100Base-T Ethernet via RJ45 |
| Operating Voltage | 5 VDC |
| Current Consumption | 1 A |
| Maximum Input Data | 192 bytes |
| Rack Format | 19-inch module |
| Space Requirement | 3 HU x 4 WU |
| Module Height | 3 HU (3 x 44.45 mm) |
| Module Width | 4 WU (4 x 5.08 mm) |
| Weight | 0.16 kg |
| Country of Origin | Germany |
| Estimated Shipping Dimensions | 2 x 18.7 x 12.8 cm |
| HS Code | 8537101190 |
PROFIBUS-DP Communication
The F8628X operates as a PROFIBUS-DP slave, allowing a supported H41q or H51q system to exchange process data with a PROFIBUS-DP master. Its maximum input data capacity is 192 bytes. The master configuration and connected system must support the required data length and communication parameters.
Ethernet Programming
In addition to PROFIBUS-DP communication, the F8628X provides a 100Base-T Ethernet interface with an RJ45 connector. With ELOP II version 4.1 or later, the module supports CPU programming over Ethernet, providing an alternative to programming through a separate connection.
System Compatibility
The module is specified for H41q and H51q PES applications beginning with OS41q/51q V7.0-7 (9906). The associated function block is HK-COM-3. Confirm the installed operating system version and the required function block before selecting the module for an existing controller.
Frequently Asked Questions
Q: What is the primary function of the HIMA F8628X?
A: The F8628X provides PROFIBUS-DP slave communication for H41q and H51q PES applications. It also supports CPU programming via Ethernet when used with ELOP II version 4.1 or later.
Q: Which interfaces are available on the F8628X?
A: The module provides a 9-pin SUB-D interface for PROFIBUS-DP and an RJ45 interface for 100Base-T Ethernet. Confirm the required cabling and communication configuration for the intended system.
Q: Which system software version supports the F8628X?
A: The supplied specifications identify OS41q/51q V7.0-7 (9906) as the applicable system software baseline. Verify the installed version and HK-COM-3 function block requirements before commissioning.
