Overview

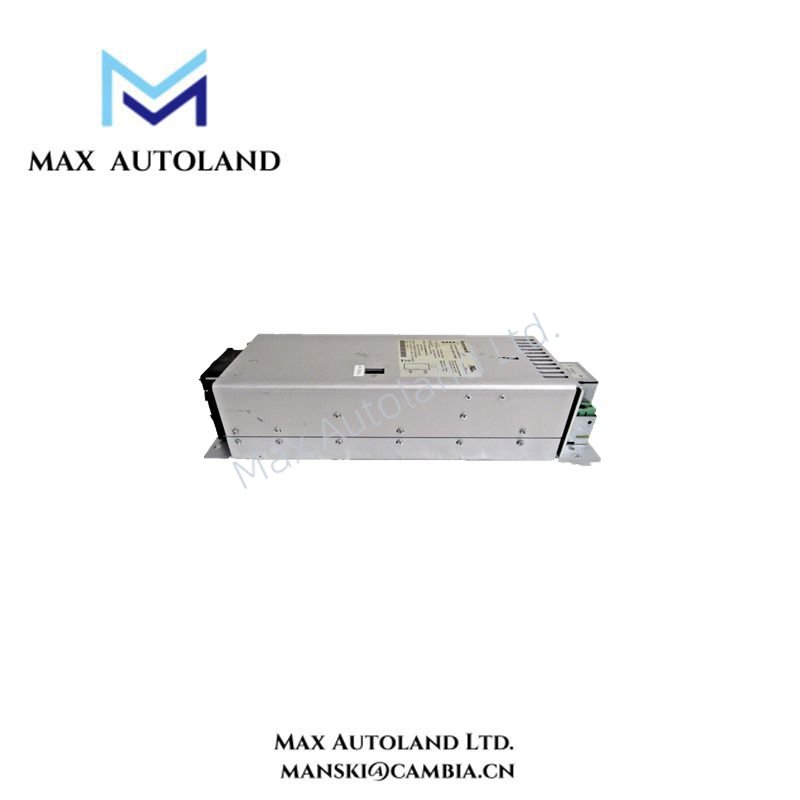

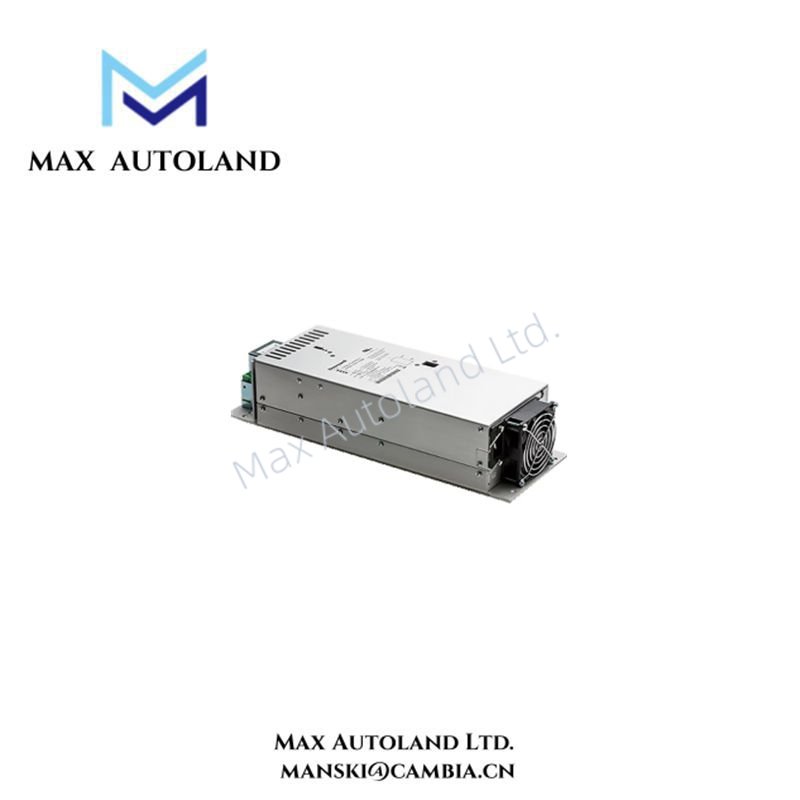

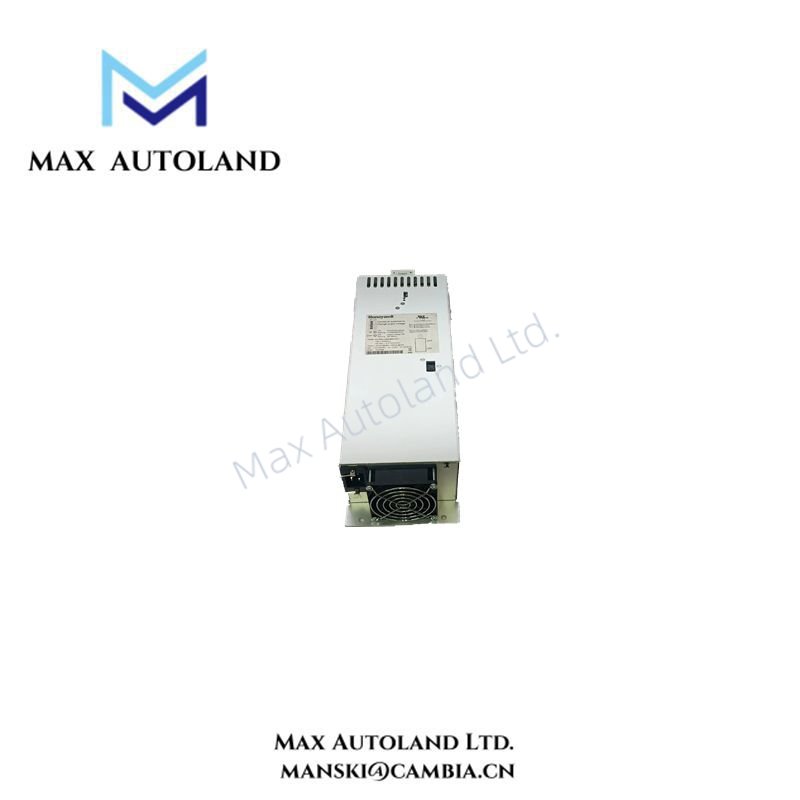

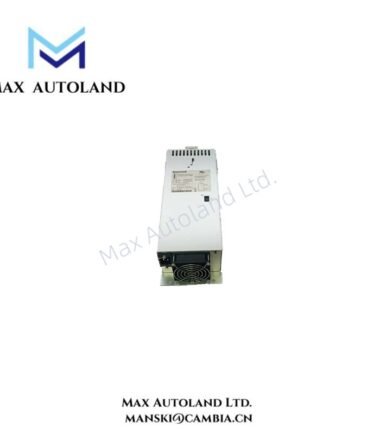

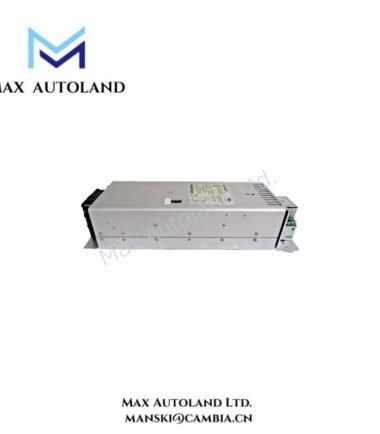

The Honeywell FC-PSU-UNI2450U is a high-performance power supply module in the Safety Manager series. It delivers stable 25 VDC or 28 VDC output, ensuring reliable operation in industrial automation and safety control applications.
This module supports a wide input voltage range of 110–240 VAC, adapting to diverse power conditions. Its 87% efficiency and low 13 W no-load consumption optimize energy usage while reducing operational costs.
The PSU-UNI2450U power supply is a UL approved switched-mode DC power supply with a high efficiency (>85% at 187 V AC and >80% at 93, 5 V AC). It accepts a wide range of input voltages to provide 25 V DC and 48 A output or 28 V DC and 43 A output.
Specification
| General | Type number: | FC-PSU-UNI2450U |
| Version3: | V2.1,V3.0 | |
| Approvals: | TUV; CE | |
| Power | Power requirements: | 110-240VAC |
| (operating limits:93-253 VAC) | ||
| Power consumption at no load: | 13W | |
| Power factor: | Close to 1 | |
| Input frequency range | 47-63Hz | |
| Physical | Dimensions: | 420.5×140×90 mm(W×H×D) |
| 16.57×5.51×3.54 in(W×H×D) | ||
| Weight: | 5.7 kg(12.5 Lb)-including the cable set | |
| Environment | Storage temperature: | -25℃ to+85℃(-13F to+185F |
| Operating temperature: | -5℃ to+70℃(23°F to+158°F) | |
| (see Figure 2 for derating of output current as a function of ambient temperature) |
