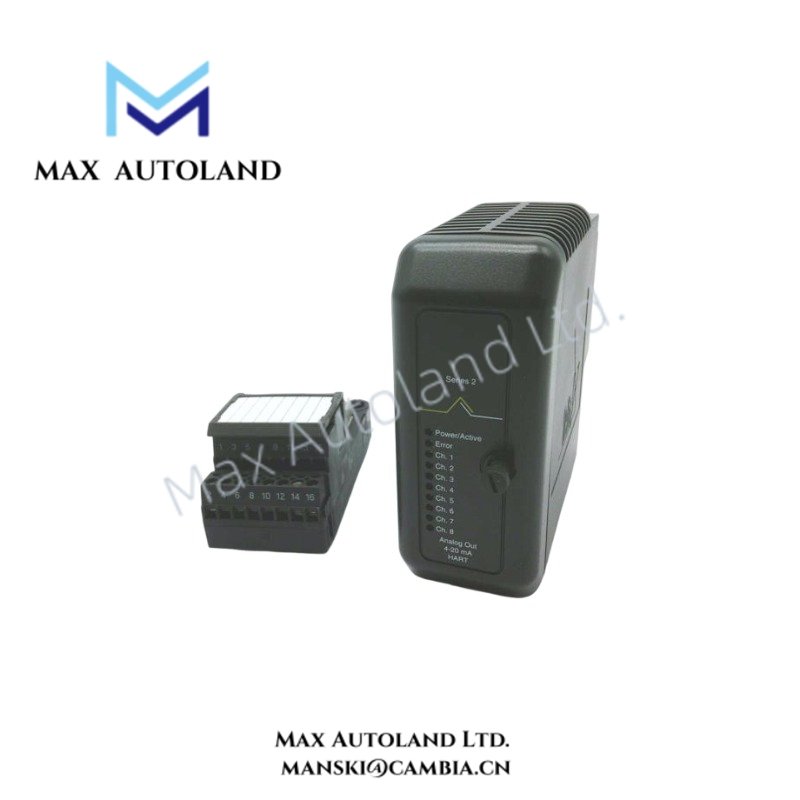

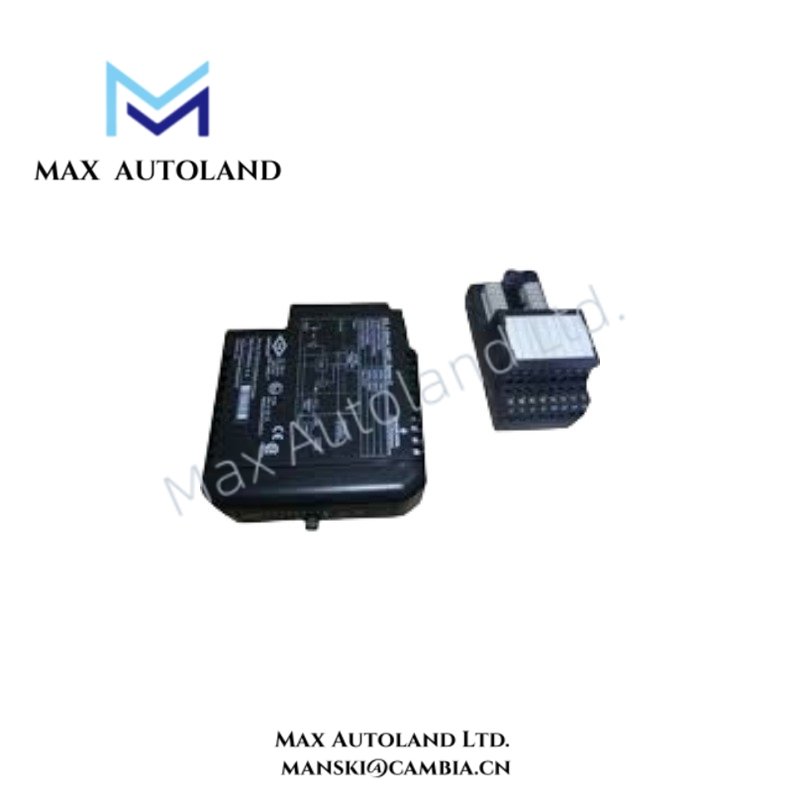

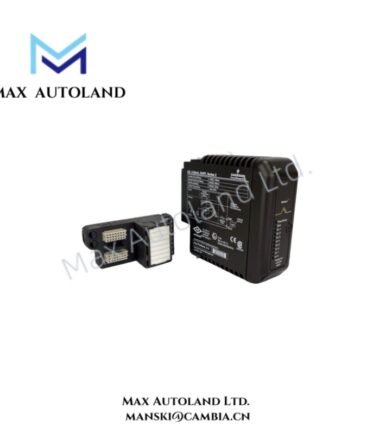

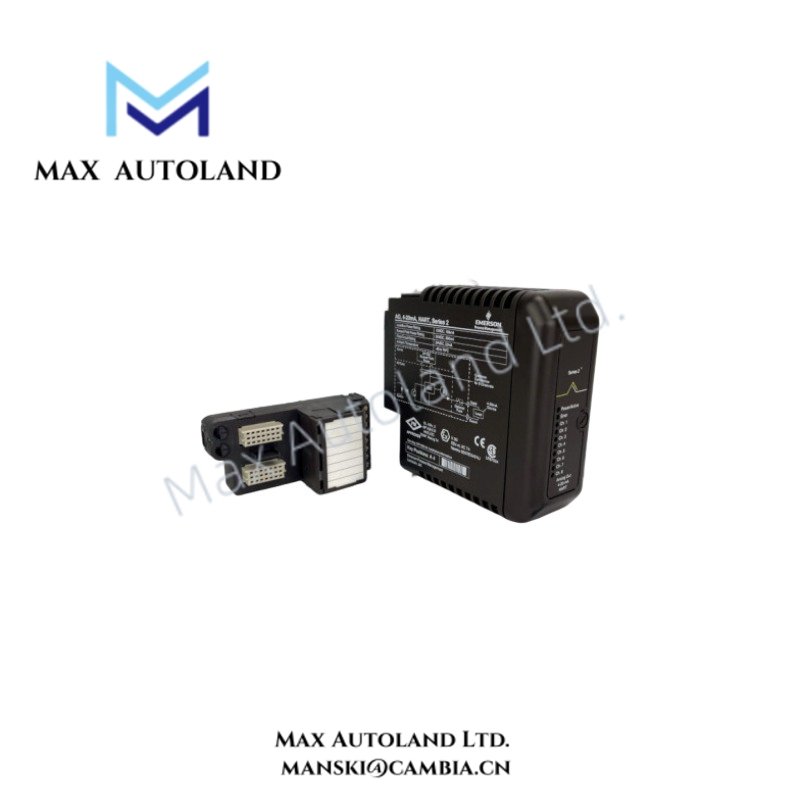

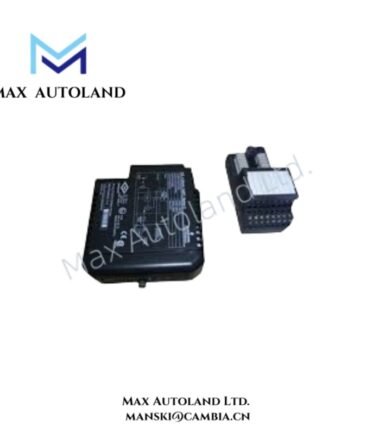

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | VE4005S2B1 |
| Brand | Emerson |
| Product Type | Analog Output Module |
| System Platform | DeltaV S-Series I/O System |
| Signal Type | 4-20 mA HART Analog Output |
| Channel Count | 8 Channels |
| Local Bus Power | 12 VDC at 150 mA |
| Bussed Field Power | 24 VDC at 300 mA |
| Field Circuit Power | 24 VDC at 23 mA per Channel |
| Origin | USA |
| Weight | 0.18 kg |
| Dimensions | 4.1 x 12.5 x 10.5 cm (Estimated Shipping Size) |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Local bus load 12 VDC at 150 mA |
| Shock Resistance | 10 g half sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Airborne Contaminants Class G3 |
| Tariff Code | 8537101190 |
| Shipment Location | Xiamen, China |
4-20 mA HART Loop and Channel Isolation Characteristics
The VE4005S2B1 processes analog output signals through eight independent 4-20 mA HART channels. Therefore, the module supports digital communication overlay on standard current loops while maintaining DeltaV S-Series I/O architecture compatibility.
The module provides field circuit power management through a 24 VDC bussed field supply. Additionally, the output channels interface with process instruments requiring controlled current transmission and HART communication functions.
The Emerson DeltaV platform applies channel-to-channel signal management methods for process I/O operation. As a result, the module supports stable analog loop execution with defined field power distribution.
Frequently Asked Questions
Q: What signal type does the VE4005S2B1 Analog Output Module provide?
A: The VE4005S2B1 provides eight 4-20 mA HART analog output channels for connection with compatible field devices.
Q: What power sources does the module require during operation?
A: The module uses a 12 VDC local bus power input and supports 24 VDC bussed field power distribution.
Q: What environmental conditions does the VE4005S2B1 support?
A: The module operates from -40 deg C to +70 deg C and meets ISA-S71.04-1985 airborne contaminant Class G3 requirements.
Field Installation Guidelines
- Install the VE4005S2B1 module according to Emerson DeltaV S-Series hardware installation procedures.
- Verify the local bus connection before applying field power.
- Use shielded instrument cables for 4-20 mA HART signal wiring where required by site standards.
- Connect cable shields according to the plant grounding design to reduce electrical interference.
- Separate analog signal wiring from high-voltage power cables and high-frequency switching sources.
- Confirm field device current requirements before connecting output channels.
- Check terminal assignments and wiring polarity before system commissioning.
