Overview

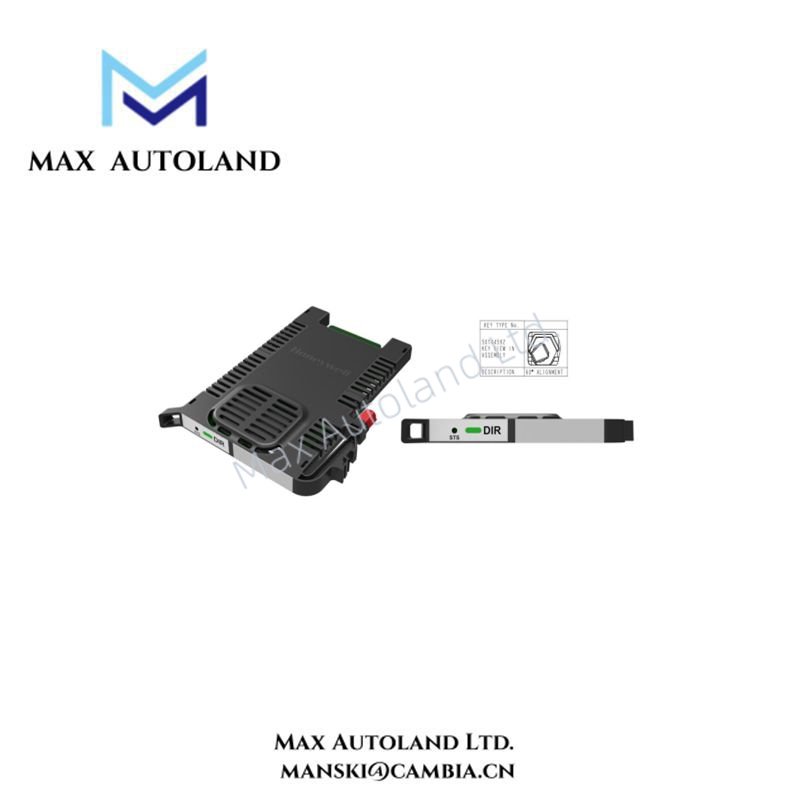

The Honeywell CC-UDIR01 is a single-channel relay input module that delivers reliable performance for low-voltage applications within the Experion® Series C I/O system. Furthermore, its coil side directly interfaces with field devices, while the contact side connects to the digital input channels of the I/O hardware. In addition, the module operates without external power, which simplifies installation and reduces overall system complexity.
Moreover, the CC-UDIR01 functions seamlessly with the CC-USCA01, making it an ideal solution for low-voltage relay input applications. Consequently, engineers can integrate this module quickly while maintaining robust digital input performance.
Specification
| Parameter | Specifications |
| Dimensions | 118mm(D)×85.5 mm(W)×10.0mm(H) |
| Assembly option | Backplane mount,screw less |
| Mistake proofing | By mechanical Keys |
| Indicators | Coil side activity indicator |
| Ambient temperature(opeation) | -40 degree Cto+70 degree C |
| Ambient temperature(storage/transport) | -40 degree C to+85degree C |
| Permissible humidity (operation) | 5%….95%(non-condensing) |
| Vibration | Non-Operational 1g 10Hz to 150Hz,Operational 0.5g 10Hz to 150Hz |
| Shock | 5g operational,15g Non-Operational |
| Coil Voltage | 24V DC |
| Typical Input Currentt | 8.0 mA |
| Power dissipation | 200mW |
| Coil Side Protection | Reverse Polarity Protection |
| Coil Side Indicator | Status LED-Green |
| Typical Response Time | 7 ms |
| Typical Release Time | 8ms |
| CoilSide Power | NA |
| Contact Type | SPDT with dedicated screw terminals on backplane for “COM”&”NO” |
| Contact Material | AgSnO2,gold plated |
| Contact side switching voltage | 24 VDC |
| Contact side Minimum Switching Current | 10 mA |
| Contact Maximum continuous current | 500 mA |
| Mechanical Endurance of Relay | 5 million operations |
| Coil to Contact Isolation | 1500 VAC RMS |
