Overview

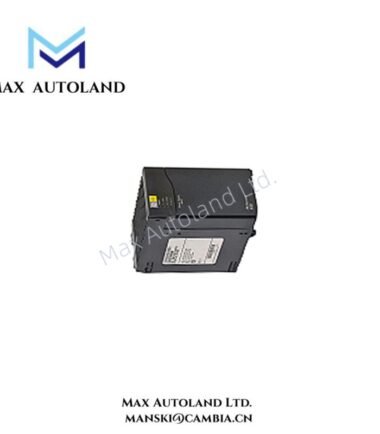

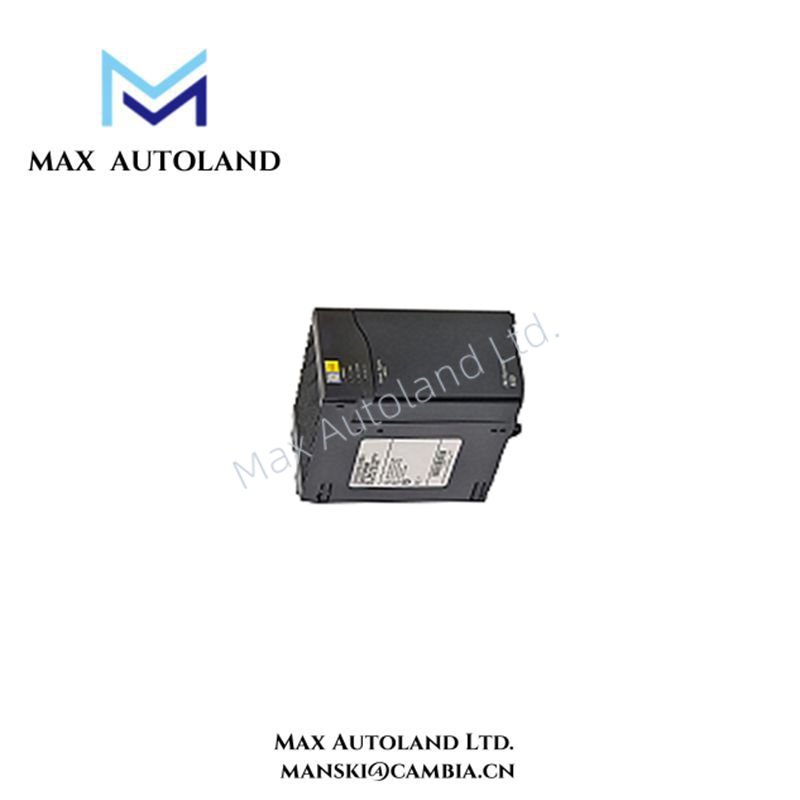

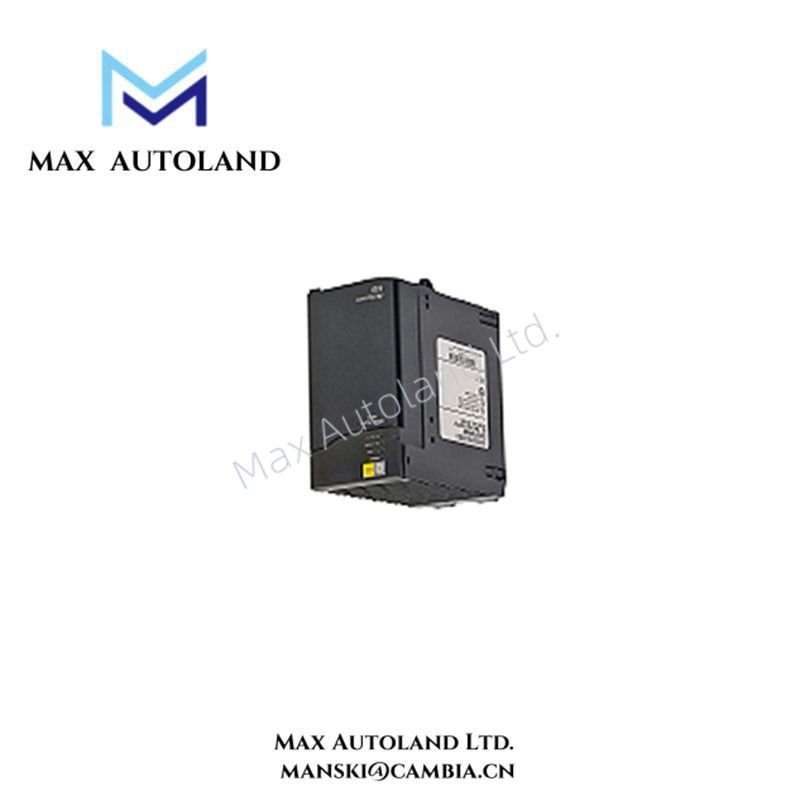

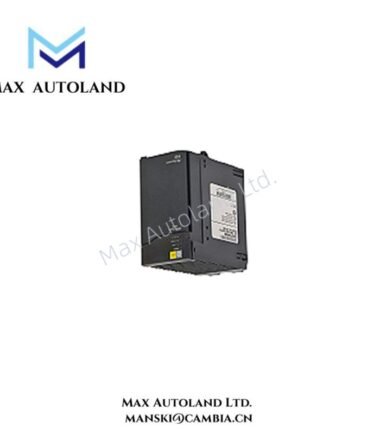

The CC-PWRB01 module, part of Honeywell’s Experion Series C power system, delivers robust and redundant 24 V DC power. It automatically switches between two 20 A supplies and includes a 24 V battery backup. This design ensures continuous operation even during AC power interruptions.
The model CC-PWRB01 power system has two 24 Vdc (20 amperes) output power
supplies for redundancy as well as a 24V backup assembly. The battery backup assembly
has rechargeable batteries and battery charger to sustain the 24 Vdc (20 amperes) output
for up to 30 minutes in the event of an ac power input failure. Each 24 Vdc power supply
can be powered by a separate ac power source (ac line or uninterrupted power supply), if
desired. The output is 25 to 26 Vdc (20 amperes) while the ac input is present and 24 to
25 (20 amperes) while the battery backup is available.
Specification
| Feature | Specification |
|---|---|
| Model | CC-PWRB01 |
| Manufacturer | Honeywell |
| Series | Experion PKS Series C Power System |
| Module Type | Redundant Power Supply with Battery Backup |
| Input Voltage | 120–240 VAC, 47–63 Hz |
| Output Voltage (AC) | 25–26 V DC @ 20 A per supply |
| Output Voltage (Battery) | 24–25 V DC @ 20 A |
| Output Current | 20 A × 2 redundant supplies |
| Battery Backup Duration | Up to 30 minutes @ 20 A load |
| Heat Dissipation | Approximately 145 W |
| Enclosure | Metal case with eight connectors for power and alarms |
| Weight | 1.36 kg |
| Alarm Indicators | LED and point-contact for power failure or backup activation |
Manual/Datasheet PDF
CC-PWRB01 Honeywell Experion PKS C300 Power Supply datasheet
