Overview

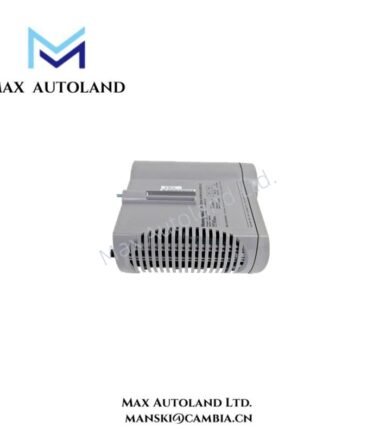

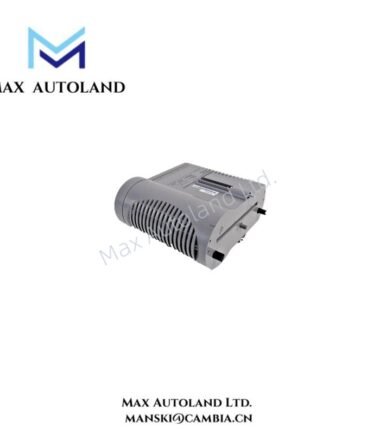

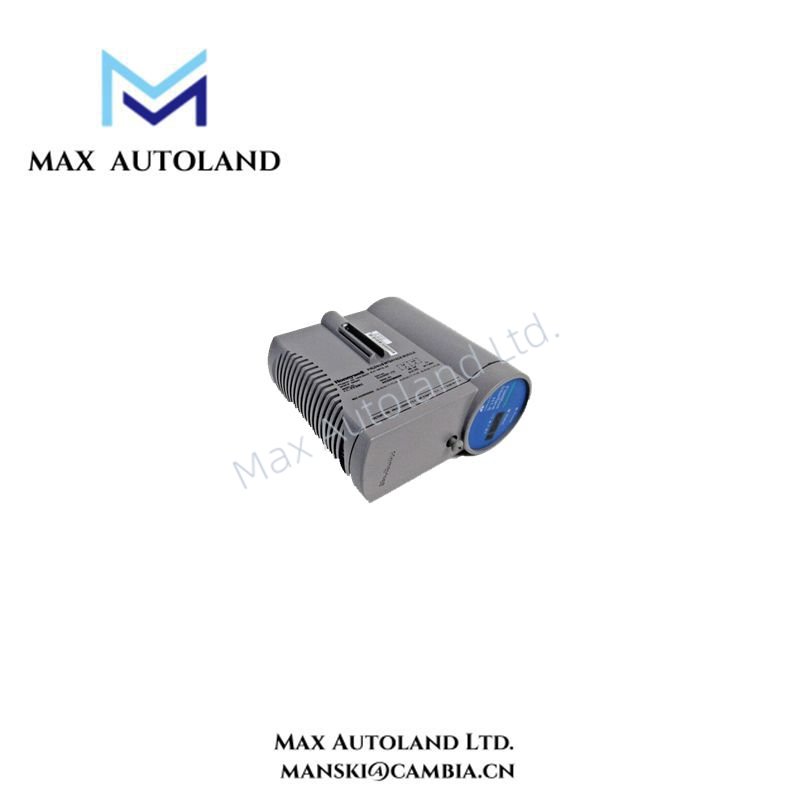

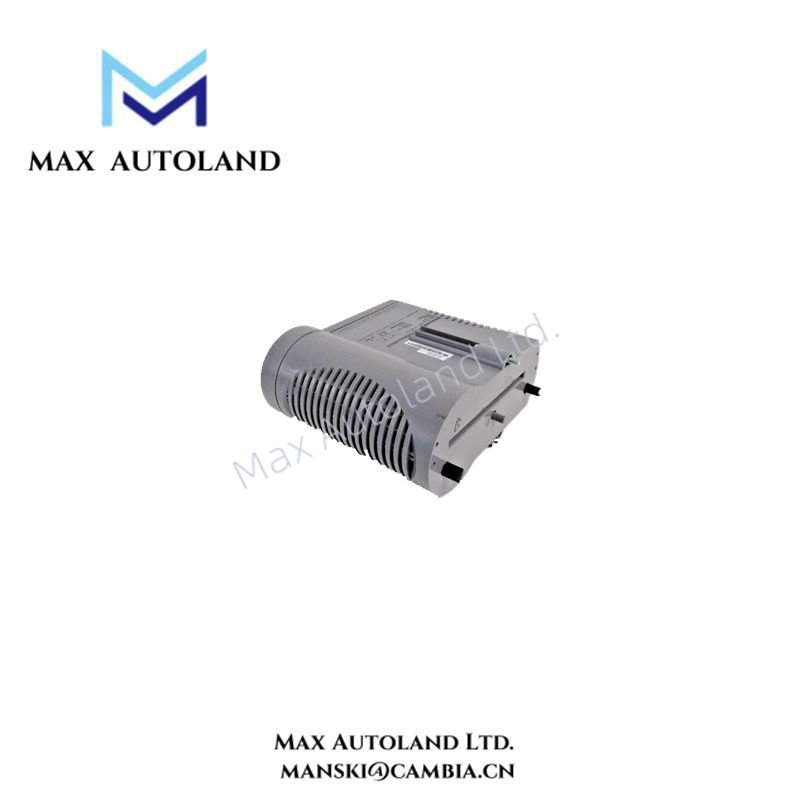

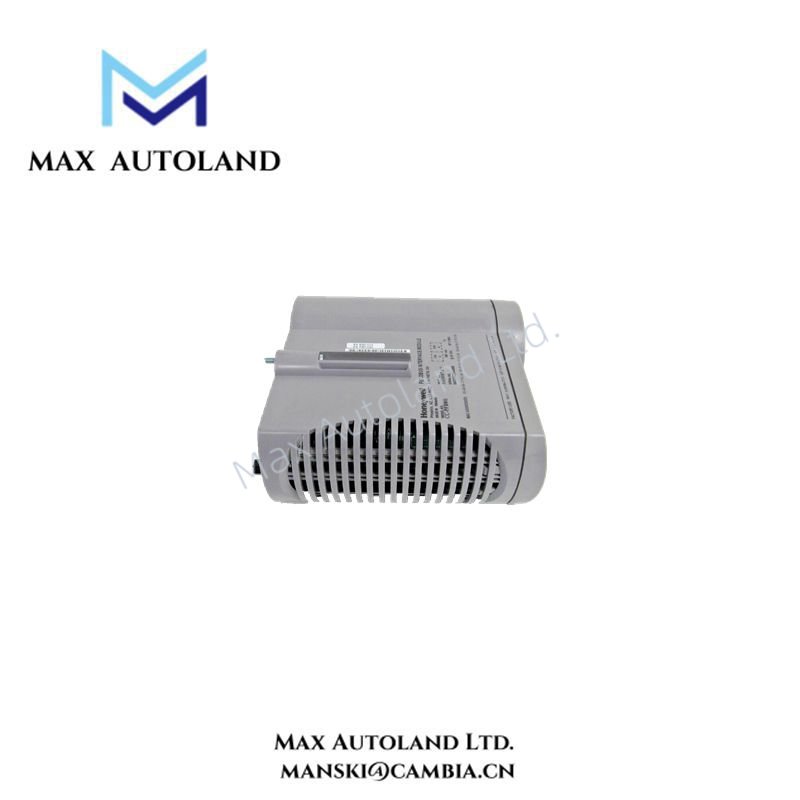

The Honeywell CC-PFB802 is a Fieldbus Interface Module (FIM) designed for integration into Honeywell’s Experion® Process Knowledge System (PKS). This module enables seamless communication between the control system and field devices, optimizing performance in industrial automation and process control applications.
Specification
| Feature | Specification |
|---|
| Model Number | CC-PFB802 |
| Product Type | Fieldbus Interface Module |
| Manufacturer | Honeywell |
| Communication Protocol | FOUNDATION™ Fieldbus |
| Supported Networks | Up to 8 H1 Fieldbus networks |
| H1 Networks per FIM | 4 |
| Max Devices per H1 Network | 16 |
| Macrocycle Periods | 250 ms, 500 ms, 1 sec, 2 sec, 4 sec, 8 sec, 16 sec, 32 sec |
| Power Supply | 24 VDC |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 120 mm (H) × 70 mm (W) × 35 mm (D) |
| Weight | 0.66 lbs (0.3 kg) |
| Mounting | DIN rail or panel |
| Certifications | CE, TUV, UL508, CSA |
