Overview

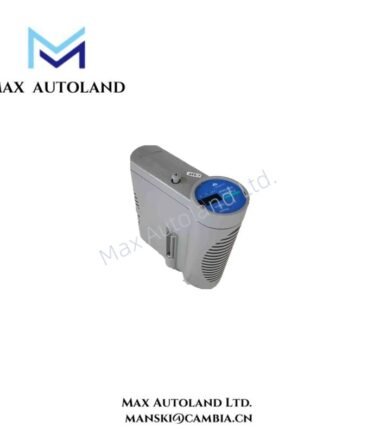

The Honeywell CC-PFB402 is a high-performance FOUNDATION™ Fieldbus Interface Module (FIM) designed for seamless integration with the Experion® C300 controller. It facilitates communication between the C300 and field devices using the Profibus DP protocol, supporting up to four independent H1 Fieldbus networks. This module is ideal for industrial automation systems requiring reliable data exchange and process control.
Specification
| Parameter | Specification |
|---|---|
| Model Number | CC-PFB402 |
| Manufacturer | Honeywell |
| Type | Fieldbus Interface Module |
| Communication Protocol | Profibus DP |
| Data Transmission Speed | Up to 12 Mbps |
| Input Voltage | 24 VDC |
| Number of H1 Networks | 4 independent links |
| Physical Interface | H1 FOUNDATION Fieldbus (IEC 61158-2 compliant) |
| Communication Speed | 31.25 kbit/s per H1 link |
| Operating Temperature | -25°C to +60°C |
| Weight | 0.5 kg |
| Dimensions | 176 × 35.2 × 212 mm |
| Mounting Type | DIN rail or panel mount |
| Certifications | CE, TUV, UL508, CSA |
| Warranty | 12 months |
