Overview

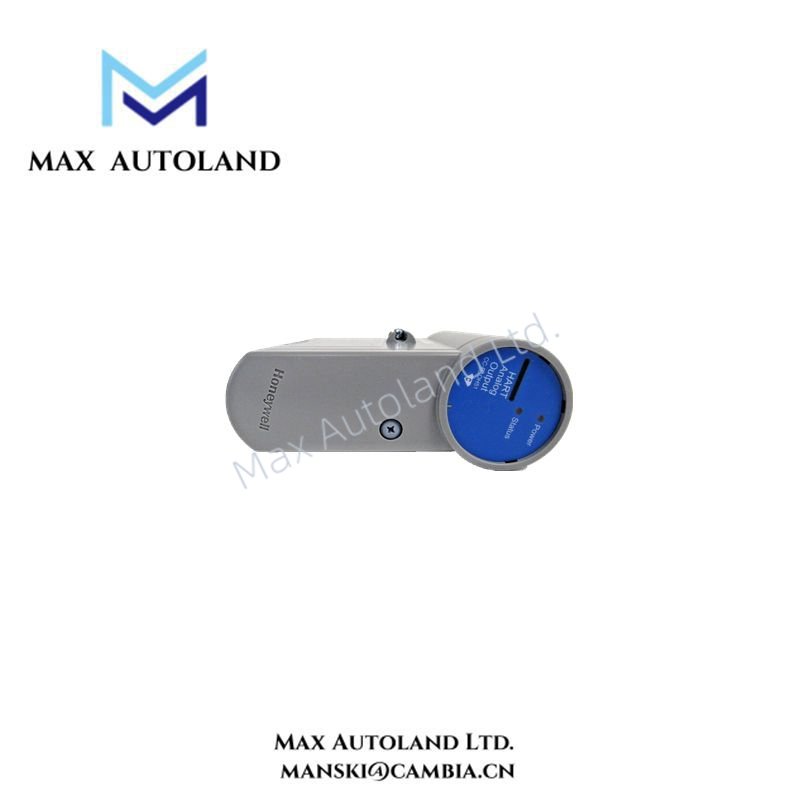

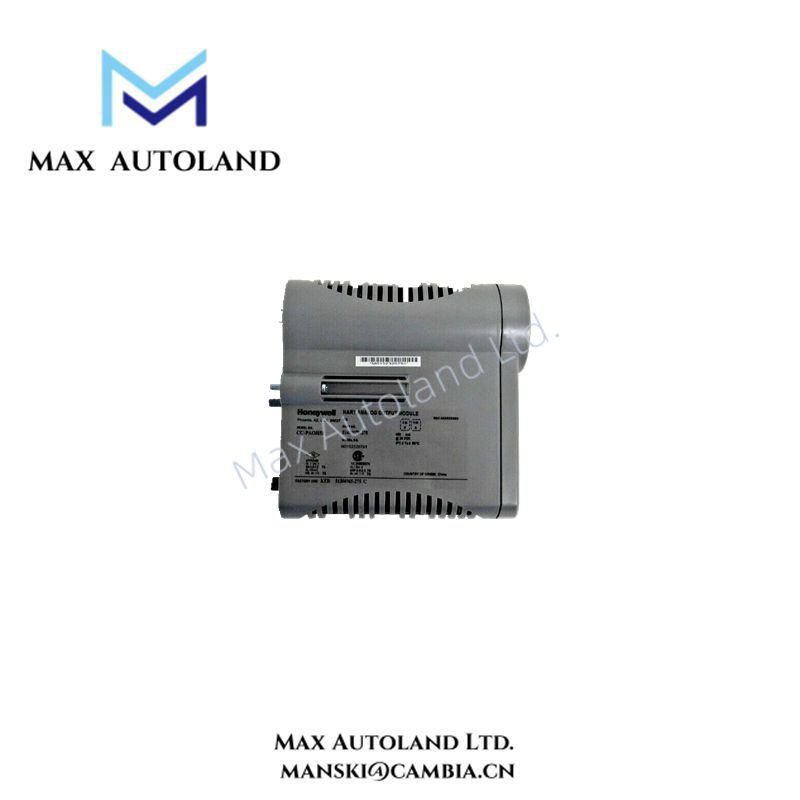

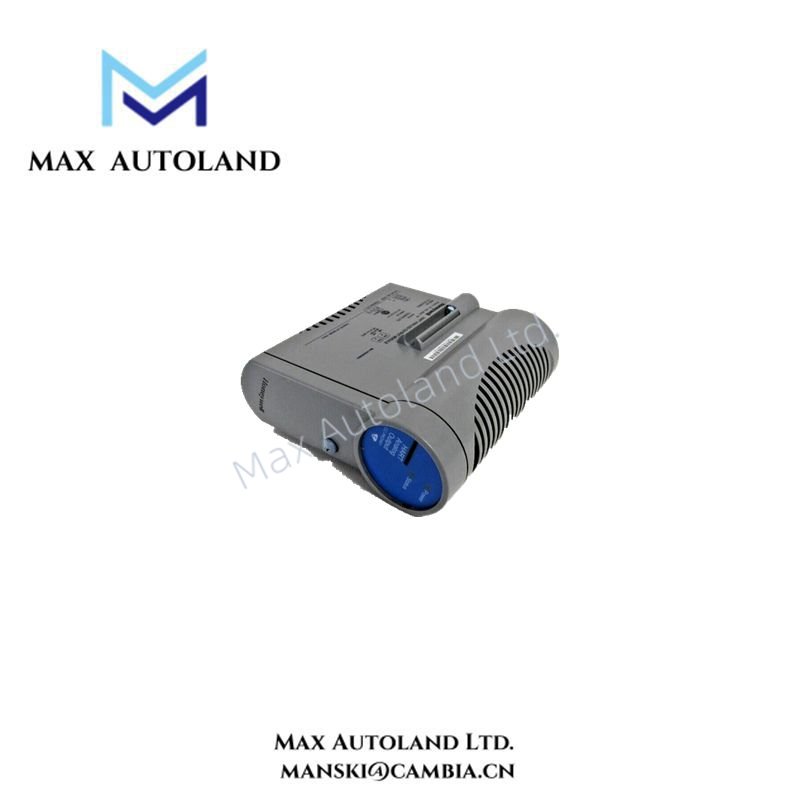

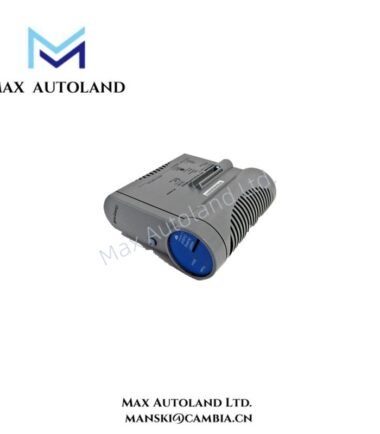

Honeywell introduces the CC-PAOH51, a robust analog output module equipped with HART communication for the Experion PKS Series C system. With 16 output channels, it precisely transmits analog control signals while enabling digital diagnostics and configuration via HART. The module supports FAILOPT safe-state behavior and open-wire detection, enhancing safety and reliability in critical process control applications.
The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices.Series C AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel to either HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOM device electronics fails.This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.
Specification
| Parameter | Specification | ||
| Input/Output Model | CC-PAOH51-High-Level Analog Output with HART | ||
| IOTA Models | CC-TAOX51 | Non-Redundant | 6″ |
| CC-TAOX61 | Redundant | 12” | |
| Output Type | 4-20 mA | ||
| Output Channels | 16 | ||
| Output Ripple | <100 mV peak-to-peak at power line frequency,across 250 Ω load | ||
| Output Temperature Drift | 0.005%of Full Scale/℃ | ||
| Output Readback Accuracy | ±4%of Full Scale | ||
| Output Current Linearity | ±0.05%of Full Scale nominal | ||
| Resolution | ±0.05%of Full Scale | ||
| Calibrated Accuracy | ±0.35%of Full Scale(25°℃)including linearity | ||
| Directly Settable Output Current Range | 0mA,2.9mA to 21.1 mA | ||
| Maximum Resistive Load (24 V supply=22 VDC through 28 VDC) | 800 ohms | ||
| Maximum Output Compliant Voltage (24 V supply=22VDC through 28 VDC) | 16V | ||
| Maximum Open Circuit Voltage | 22V | ||
Manual/Datasheet PDF
