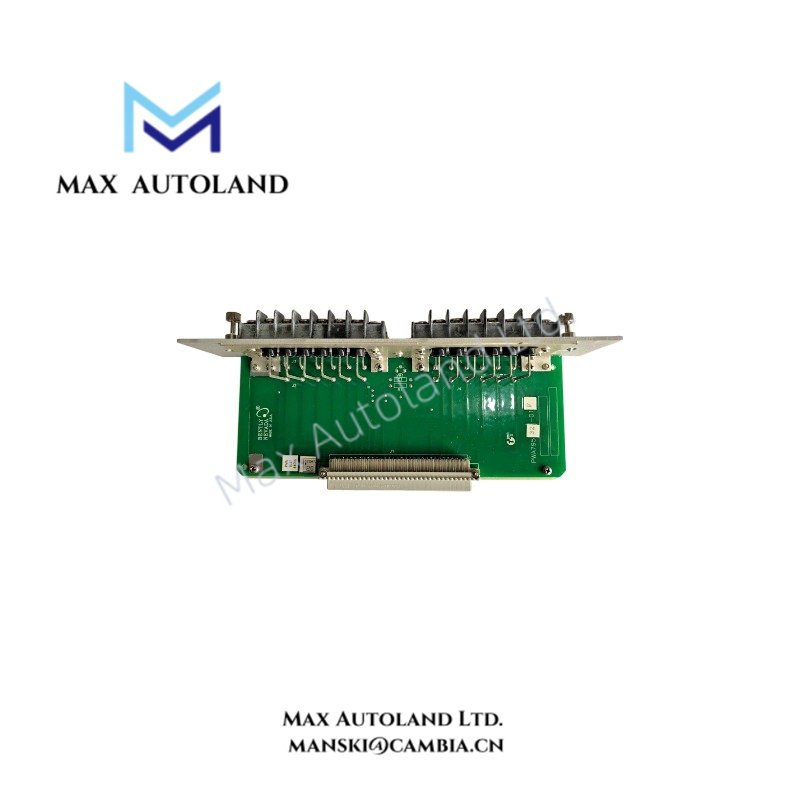

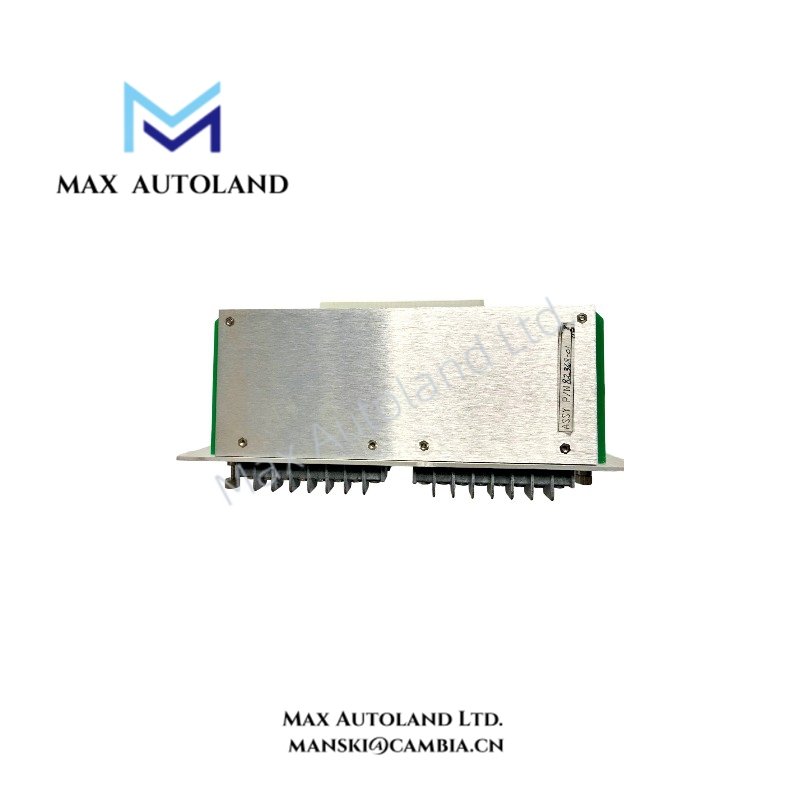

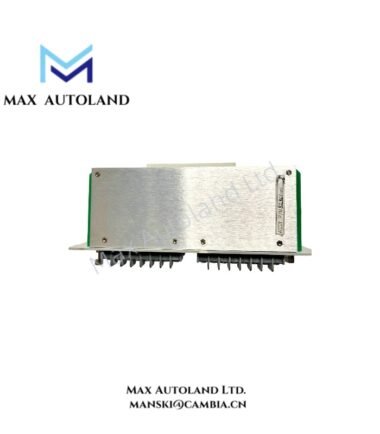

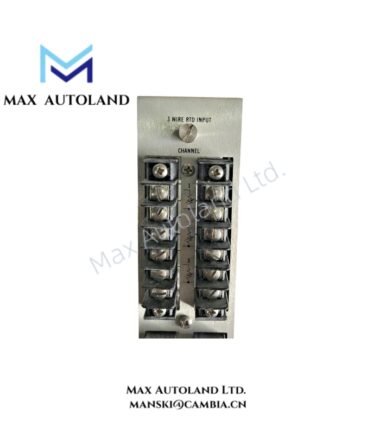

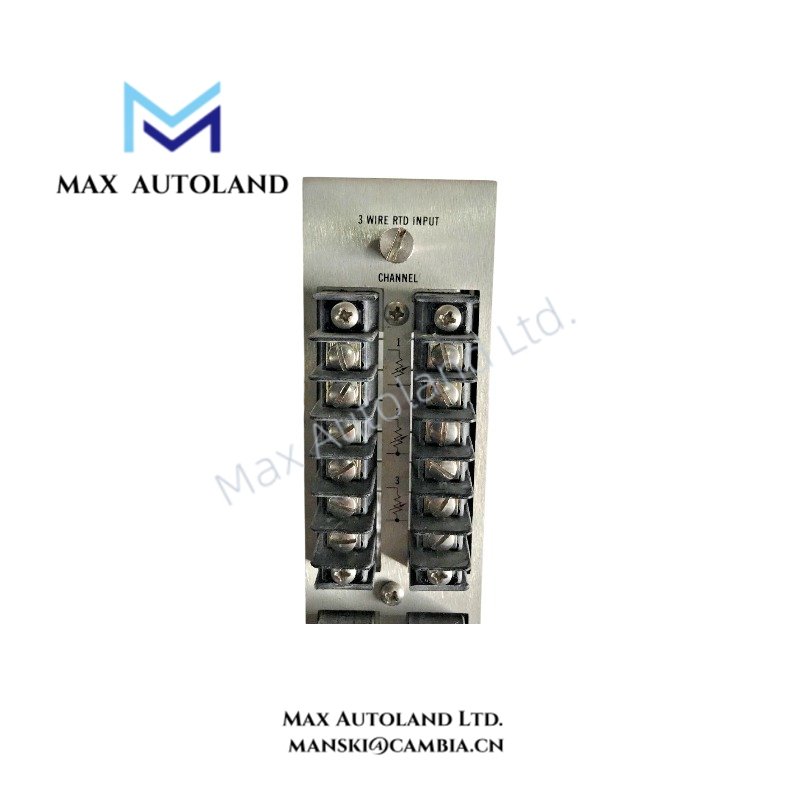

Bently Nevada 82368-01 Three-Wire RTD Input Assembly

Hardware Specifications

Function and Signal Processing

An RTD measures temperature through changes in electrical resistance. A three-wire connection helps compensate for lead-wire resistance, depending on the input circuit design. The monitor uses the RTD signal to track temperature changes across its configured channels.

The 3300/35 RTD Monitor supports six independent temperature-monitoring channels and accepts inputs from separately supplied RTDs. These features describe the monitor rather than the standalone 82368-01 assembly. Therefore, verify the input configuration before ordering a replacement.

Spare Identification and Replacement

Check the existing assembly markings and the installed monitor documentation before selecting a replacement. The supplied spare references include PWA9532-01, 82368, and 78599-02. However, the available information does not confirm that all three references are interchangeable.

The supplied data also does not specify electrical ratings, supported RTD types, terminal assignments, hardware revision, or independent replacement compatibility. Confirm these details against the applicable equipment documentation before installation.

Frequently Asked Questions

Q: Is the 82368-01 a complete six-channel temperature monitor?

A: No. The available documentation identifies it as a three-wire RTD input assembly. The six-channel monitoring function belongs to the referenced 3300/35 RTD Monitor.

Q: Which monitor family is associated with the 82368-01?

A: The supplied information references the Bently Nevada 3300/35 RTD Monitor. Confirm the installed monitor configuration before ordering the spare.

Q: Can PWA9532-01, 82368, and 78599-02 be used interchangeably?

A: Interchangeability is not confirmed by the available information. Check the original spare-parts documentation and assembly markings before substituting one reference for another.
