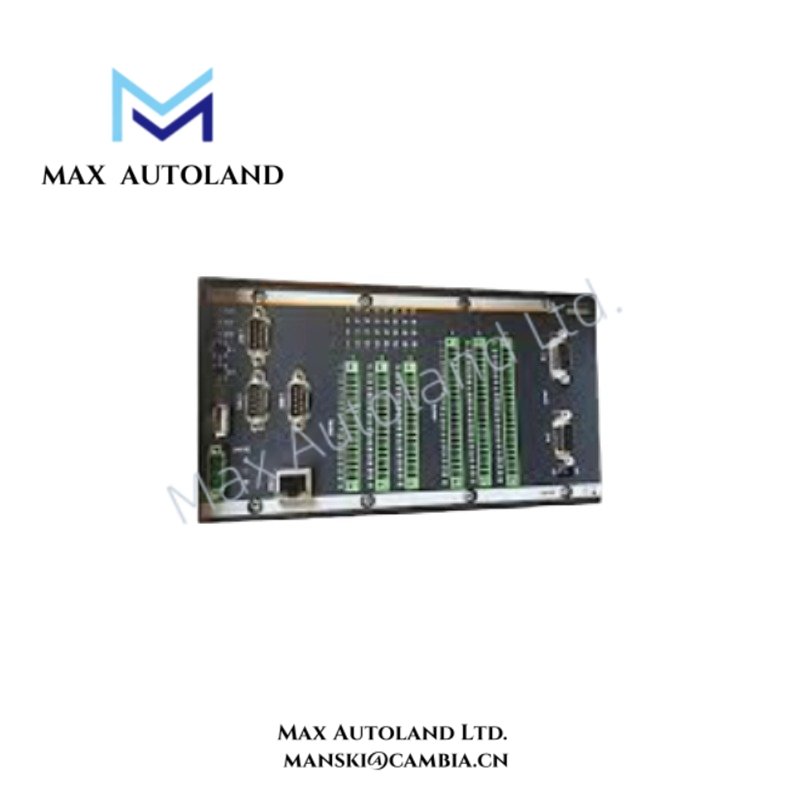

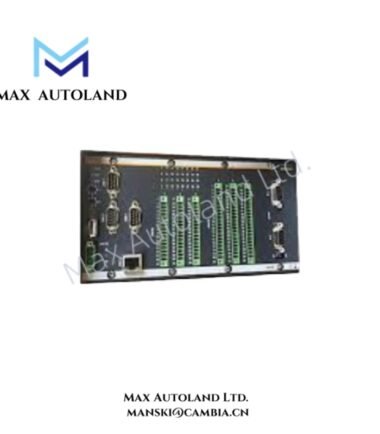

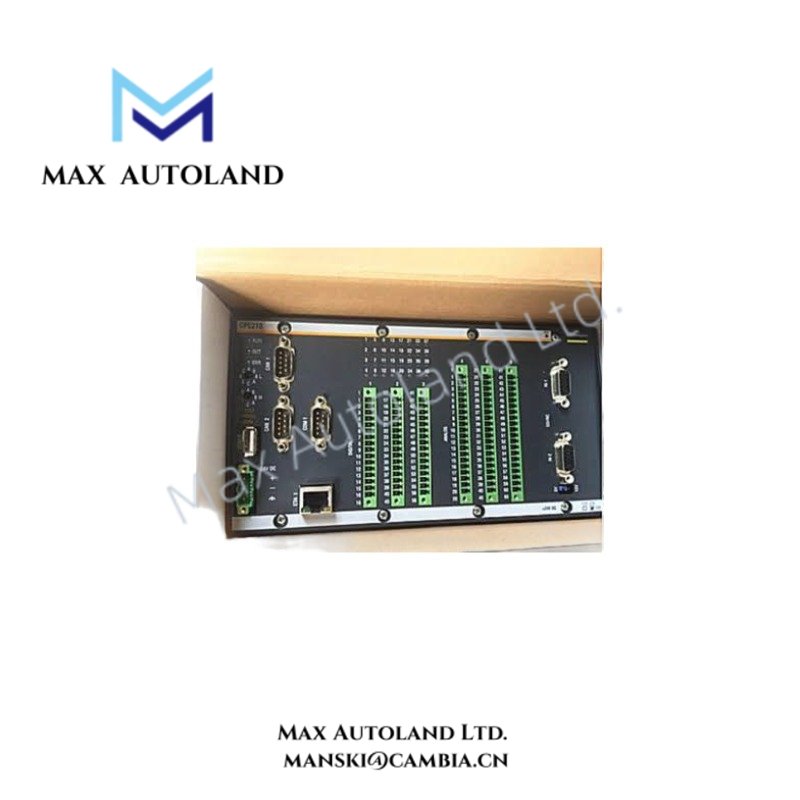

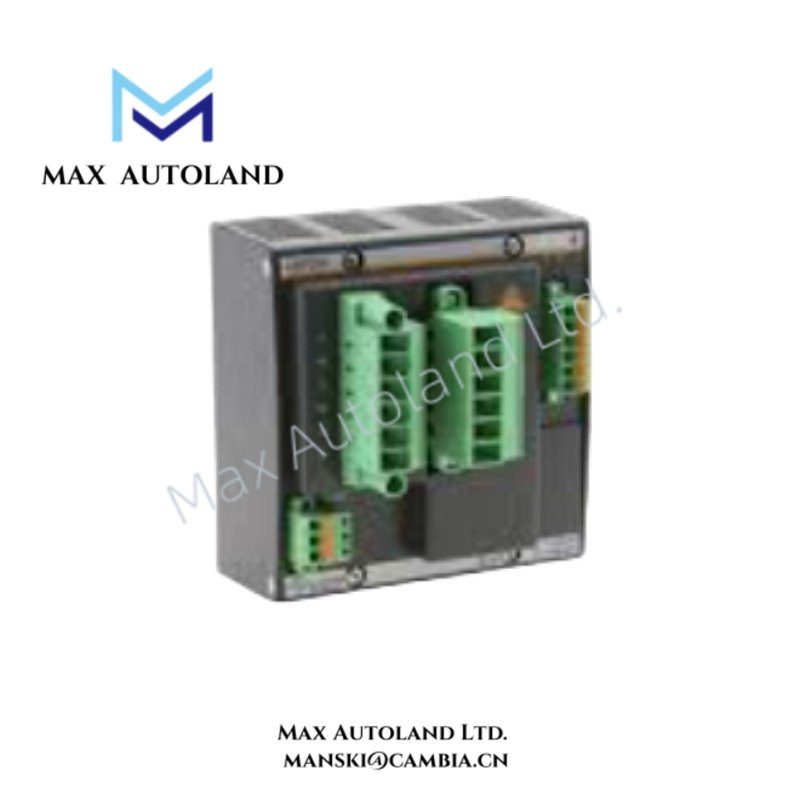

Bachmann CPC210 Control Module

Hardware Specifications

Industrial Control and Ethernet Architecture

The CPC210 combines local control processing with dual 10/100 Mbps Ethernet interfaces. Therefore, the module can exchange control and diagnostic data through standard Ethernet connections while maintaining local program and data storage.

The module provides 256 MB RAM and 128 MB flash memory. In addition, it supports external memory expansion for applications requiring additional storage capacity.

For power integration, the CPC210 accepts 24 VDC nominal input across an 18 V to 34 V operating range. The maximum specified power consumption is 10 W. Consequently, the external DC supply and wiring should accommodate the module’s specified voltage and load requirements.

Bachmann automation systems use backplane-based module communication for system integration. However, the supplied CPC210 data does not specify a backplane communication rate, supported network protocol, or firmware compatibility matrix. These parameters should therefore be verified against the applicable Bachmann system documentation before system configuration.

Frequently Asked Questions (FAQ)

Q: What supply voltage does the CPC210 require?
A: The CPC210 operates from 24 VDC and accepts an input range of 18 V to 34 V.

Q: How much memory does the CPC210 provide?
A: The module provides 256 MB RAM and 128 MB flash memory for program and data storage. It also supports external memory expansion.

Q: How many Ethernet interfaces are provided?
A: The CPC210 provides two 10/100 Mbps Ethernet interfaces. The supplied specifications do not define the supported higher-level Ethernet protocols.

Field Installation Guidelines

• Install the CPC210 in the designated Bachmann system mounting position and secure the module according to the system hardware requirements.
• Verify the DC supply polarity and confirm that the supply remains within the specified 18 V to 34 V operating range.
• Size the external power supply and wiring for the specified maximum 10 W module consumption.
• Route Ethernet cables separately from high-current switching conductors where practical to reduce electromagnetic interference.
• Maintain appropriate cable bend radius and avoid excessive mechanical stress on Ethernet connectors.
• Connect cable shields according to the control cabinet grounding concept and applicable installation standards.
• Confirm ambient temperature remains within -25 deg C to +60 deg C during operation.
• Do not exceed the specified storage temperature range of -40 deg C to +85 deg C during storage or transport.
• Verify vibration and shock conditions against EN 60068-2-6 and EN 60068-2-27 requirements.
• Confirm firmware, external memory, Ethernet protocol, and backplane compatibility before commissioning.
