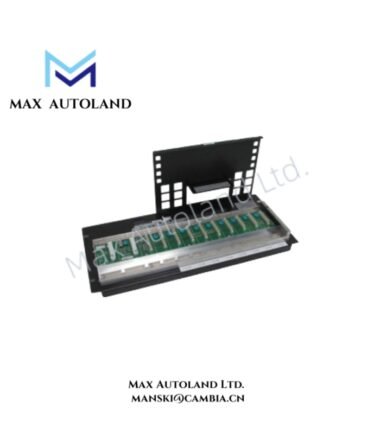

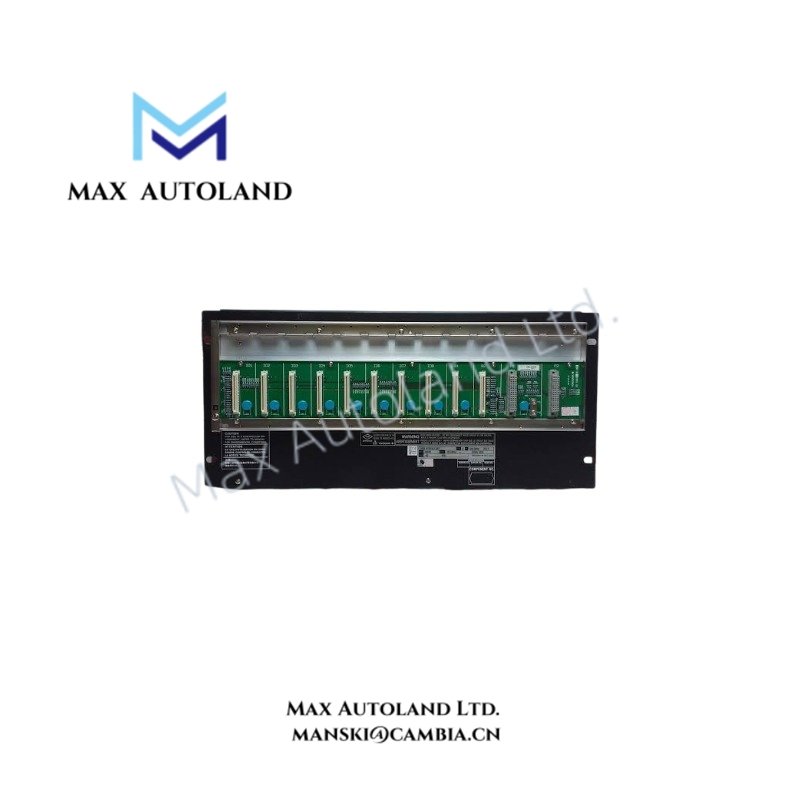

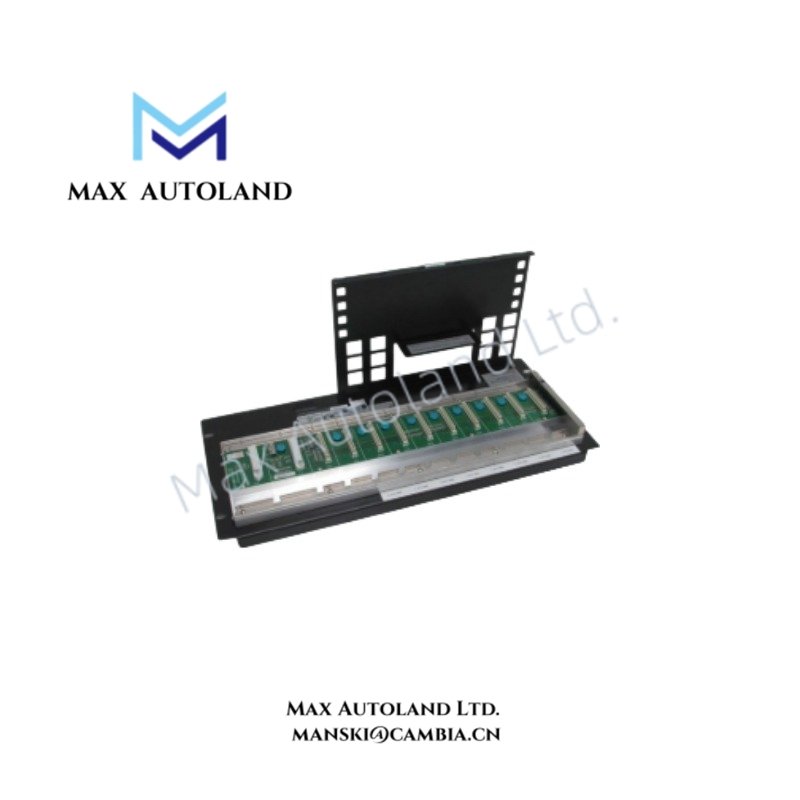

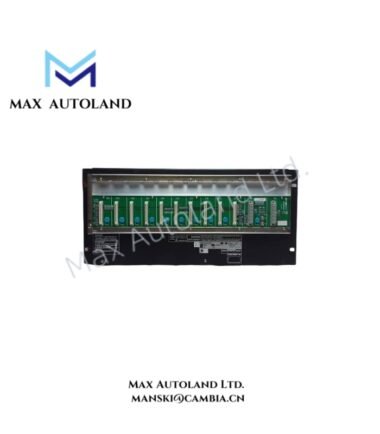

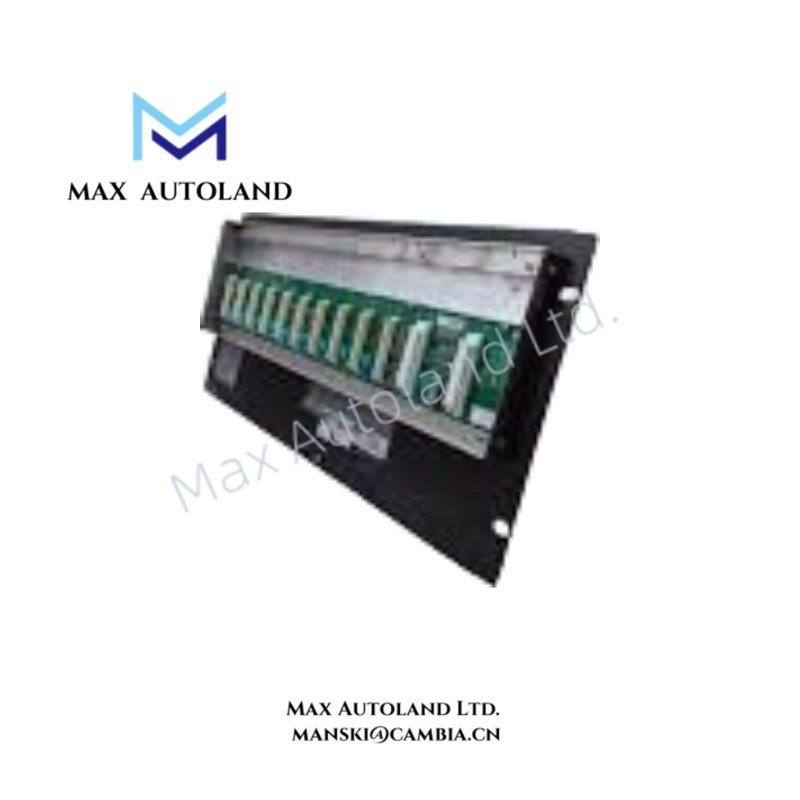

ANR10D-420/NDEL Yokogawa ERBus Node Unit

Yokogawa ANR10D-420/NDEL ERBus Node Unit

The Yokogawa ANR10D-420/NDEL, also cataloged as the ANR10D ERBus Node Unit, operates as a dedicated hardware component for communicating field analog I/O and contact I/O signals with Field Control Units in Yokogawa CENTUM systems.

Hardware Specifications

Yokogawa DCS Field Communication and I/O Signal Interface

The ANR10D-420/NDEL provides the physical interface between field I/O modules and the Field Control Unit through the ERBus communication structure. It transfers analog input/output signals and contact I/O signals while supplying operating power to connected I/O modules.

In addition, the node unit supports connection expansion through ESB Bus Node Units and ERBus Node Units. When an ERBus Node Unit connects to an ESB Bus Node Unit or Field Control Unit, the EB401 ERBus Interface Master Module must be installed in the corresponding unit.

For single configuration operation, the EB401 module requires installation in an odd-numbered slot with an empty slot maintained on the right side.

The Yokogawa DCS architecture uses structured communication paths, including Vnet/IP database connections, ESB Bus communication, and ERBus remote node expansion. Therefore, the ANR10D supports scalable field signal distribution within supported CENTUM control station configurations.

FOUNDATION Fieldbus and Process I/O Signal Compatibility

Yokogawa ANR10D series hardware integrates within CENTUM process control architectures where field signal acquisition and distribution require stable electrical interfaces. The unit supports analog I/O and contact I/O signal transmission between field modules and FCU processing layers.

The module configuration supports process instrumentation systems using Yokogawa DCS communication structures. Furthermore, field I/O expansion maintains separated signal handling paths between connected node units and control functions.

Frequently Asked Questions

Q: What communication interface does the Yokogawa ANR10D-420/NDEL use for field node connection?
A: The ANR10D-420/NDEL uses the ERBus communication interface to exchange field analog I/O and contact I/O signals with Field Control Units.

Q: How many ERBus Node Units can connect to one FCU?
A: The maximum ERBus Node Unit connection is 4 per FCU when using remote node connection configuration.

Q: What power supply options are available for the ANR10D-420/NDEL?
A: The unit supports 100-120 VAC, 220-240 VAC, and 24 VDC power supply configurations according to suffix code selection.

Field Installation Guidelines

• Install the ANR10D-420/NDEL in a standard 19-inch rack using the specified mounting screws.
• Verify the selected power supply voltage before energizing the node unit.
• Maintain correct slot positioning when installing the EB401 ERBus Interface Master Module.
• Keep an empty slot on the right side of an EB401 module when configuring a single arrangement.
• Separate field signal wiring from high-voltage power cables to reduce electrical interference.
• Apply appropriate grounding methods for rack installation and shielded field cables according to system engineering standards.
• Confirm ERBus and ESB Bus cable routing before commissioning communication between node units and FCUs.
• Check connected I/O module power requirements before adding expansion modules.
