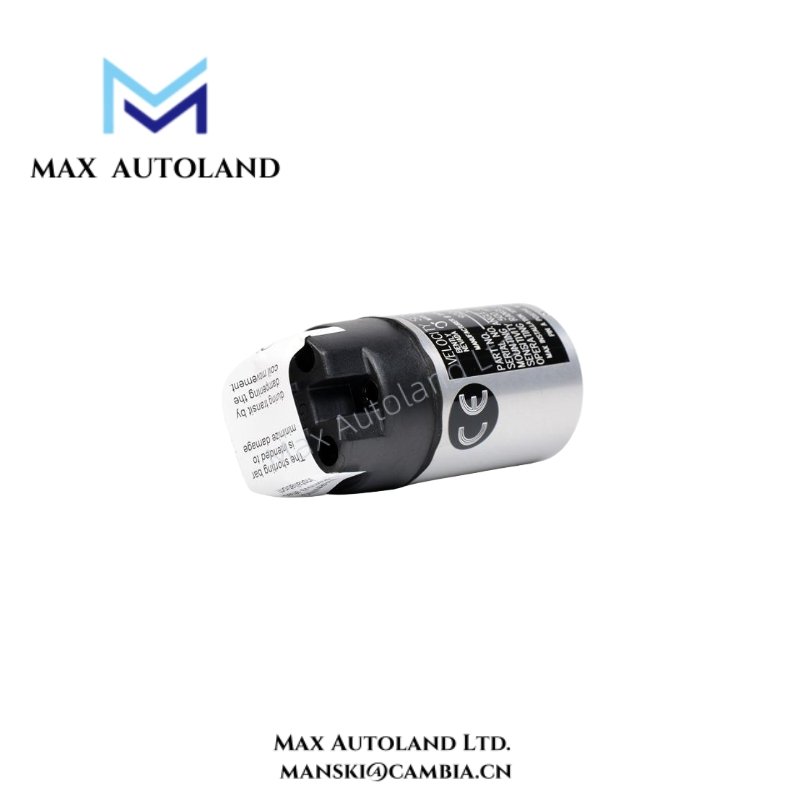

Overview
Unlike solid-state velocity transducers, the 9200 demonstrates reduced sensitivity to impact or impulsive excitation, making it suitable for challenging industrial environments. In addition, the transducer is compatible with both continuous monitoring systems and periodic measurement instruments. Integral cable options improve resistance to corrosive conditions, while the 74712 high-temperature variant allows operation in extreme thermal environments.
Engineers benefit from the long lead-wire capacity, robust shock resistance, and precise frequency response. With flexible mounting options and durable construction, the 9200 ensures consistent and accurate vibration monitoring across a variety of industrial machinery applications.
Specification
| Parameter | Specification |
|---|---|

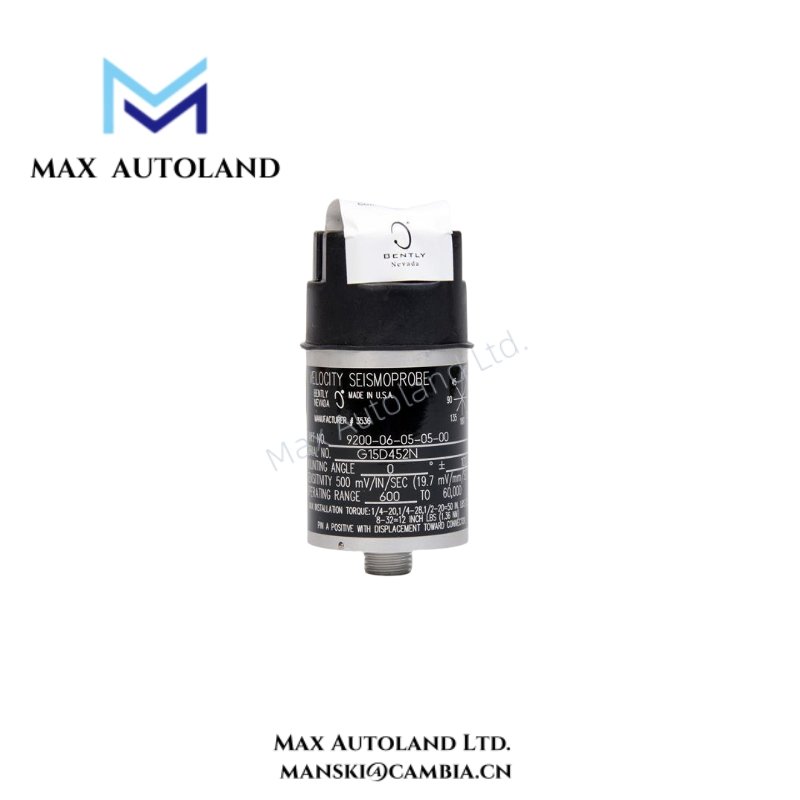

| Model | 9200-06-05-05-00 |
| Transducer Type | Seismoprobe Velocity Two-Wire |
| Output Signal | Voltage proportional to vibration velocity |
| Sensitivity | 20 mV/mm/s (500 mV/in/s) ±5% |
| Calibration Load | 10 kΩ terminal “A” to “B” |
| Sensitivity Temperature Coefficient | 0.2%/°C |
| Frequency Response | 4.5 to 1000 Hz (+0, -3 dB typical, depending on min. operating frequency) |
| Dynamic Operating Range | 2.54 mm (0.100 in) peak-to-peak displacement |
| Velocity Range | 25 mm/s (1 in/s) at 100 Hz, 10 kΩ load |
| Coil Resistance | 1.25 kΩ ±5% |
| Locked Coil Inductance | 125 mH typical |
| Amplitude Linearity | ±5% from 0.01 to 5.0 in/s (0.254 to 127 mm/s) at 100 Hz |
| Shock Resistance | 50 g peak along non-sensitive axis |
| Transverse Sensitivity | ±10% maximum of sensitive axis at 100 Hz |
| Polarity of Output Signal | Pin A positive relative to Pin B when transducer case moves toward connector |
| Lead Wire Length | Up to 305 m (1,000 ft) |
| Operating Temperature | 9200: -29°C to +121°C; 74712: -29°C to +204°C |
| Storage Temperature | Same as operating |
| Relative Humidity | Up to 95% non-condensing; 100% non-submerged with integral cable |
| Maximum Altitude | 2000 m (6,561 ft) above sea level |
| Mounting Base Option | Circular; M10X1 stud |
| Connector/Cable Option | Terminal block top mount (no cable) |
| Agency Approval Option | No Approvals |
Ordering Information
Here’s a clean table based on the details you provided:
| Parameter | Specification |
|---|---|
| Transducer Mounting Angle/Minimum | 0 ±100° |
| Operating Frequency Option | 10 Hz (600 cpm) |
| Connector/Cable Option | Terminal block top mount (no cable) |
| Mounting Base Option | No base; 1/2-20 UNF-3A stud |
| Agency Approval Option | No Approvals |
FAQ
A: It provides a voltage output directly proportional to vibration velocity.
Q: Does the 9200 require external power?
A: No, the two-wire design allows operation without any external power source.
Q: Can the transducer operate in high-temperature environments?
A: Yes, the 74712 variant supports extreme temperatures up to +204°C.
Q: How far can the lead wire extend?
A: Lead wire can extend up to 305 meters (1,000 feet) to the monitor.
Q: What is the frequency response of the 9200?
A: From the minimum operating frequency (4.5 Hz) up to 1 kHz (+0, -3 dB typical).
