Specification
| Parameter | Specification |
|---|---|
| Model | 74712-06-09-04 |

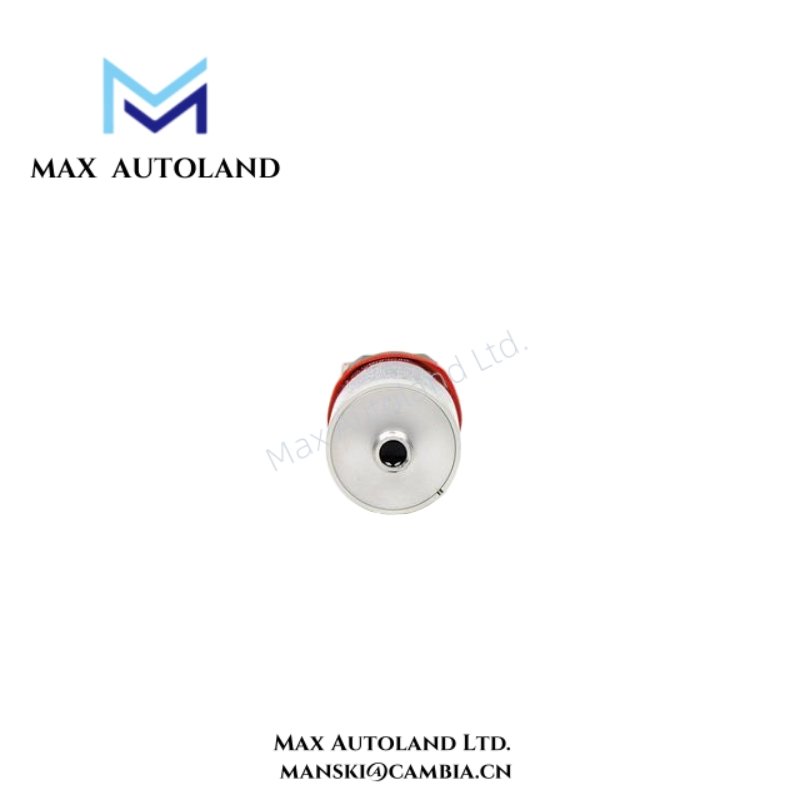

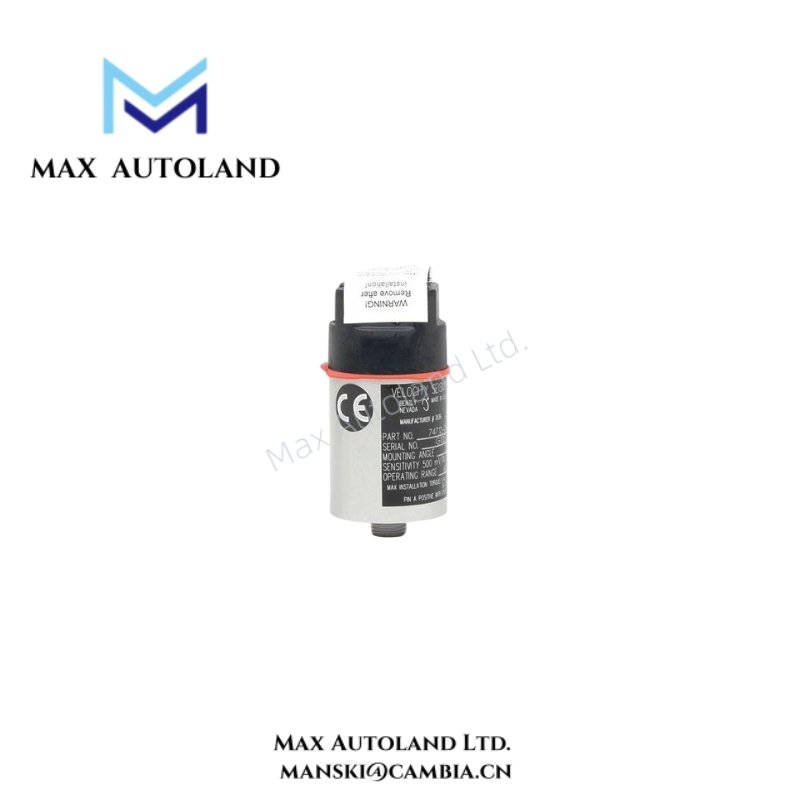

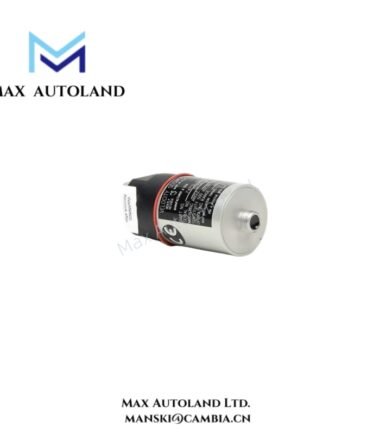

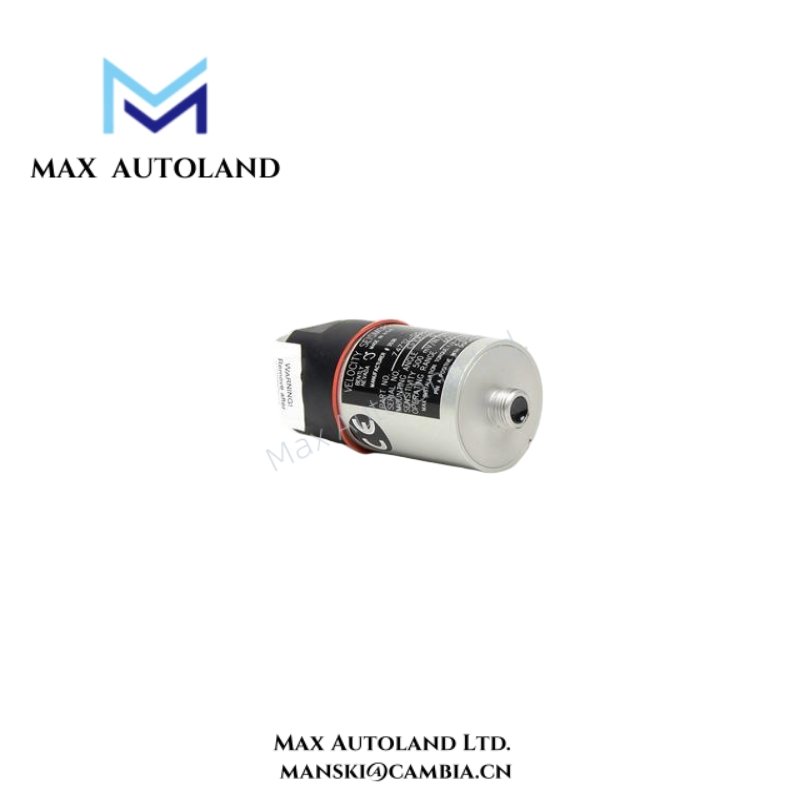

| Product Type | Seismoprobe Velocity High-Temperature Two-Wire Transducer |
| Sensitivity | 20 mV/mm/s (500 mV/in/s), ±5% |
| Calibration Load | 10 kΩ across pins A and B |
| Sensitivity Temperature Coefficient | 0.2% / °C |
| Frequency Response | 4.5 to 1000 Hz (+0, -3 dB typical) |
| Dynamic Operating Range | 2.54 mm (0.100 in) peak-to-peak max displacement |
| Velocity Range | 25 mm/s (1 in/s) |
| Coil Resistance | 1.25 kΩ ±5% |
| Locked Coil Inductance | 125 mH typical |
| Amplitude Linearity | ±5% from 0.01 to 5 in/s (0.254–127 mm/s) at 100 Hz |
| Shock Resistance | 50 g peak along non-sensitive axis |
| Transverse Sensitivity | ±10% max at 100 Hz and 1 in/s |
| Polarity of Output Signal | Pin A positive relative to Pin B when case moves toward connector |
| Lead Wire Maximum Length | 305 m (1,000 ft) |
| Operating Temperature | -29°C to +204°C (-20°F to +400°F) |
| Storage Temperature | -29°C to +204°C (-20°F to +400°F) |
| Relative Humidity | Up to 95% non-condensing; 100% non-submerged with integral cable |
| Maximum Use Altitude | 2,000 m (6,561 ft) above sea level |
| Environmental Protection | Dust and moisture resistant; consult for radiation environments |
| Transducer Mounting Angle | 0 ±100, minimum operating frequency 10 Hz (600 cpm) |
| Connector/Cable Option | Terminal block top mount or side mount |
| Mounting Base Option | Rectangular flange or isolated circular 5/8-18 UNF stud |
| Agency Approval Option | No Approvals |
FAQ
A1: Yes, it reliably operates from -29°C to +204°C (-20°F to +400°F) while maintaining accurate vibration readings.Q2: What is the maximum distance between the transducer and monitor?
A2: Lead lengths up to 305 meters (1,000 ft) are supported, though frequency roll-off may occur at longer distances.
Q3: Does it require external power?
A3: No, this two-wire moving-coil design functions without external power, enabling flexible deployment.
