Overview

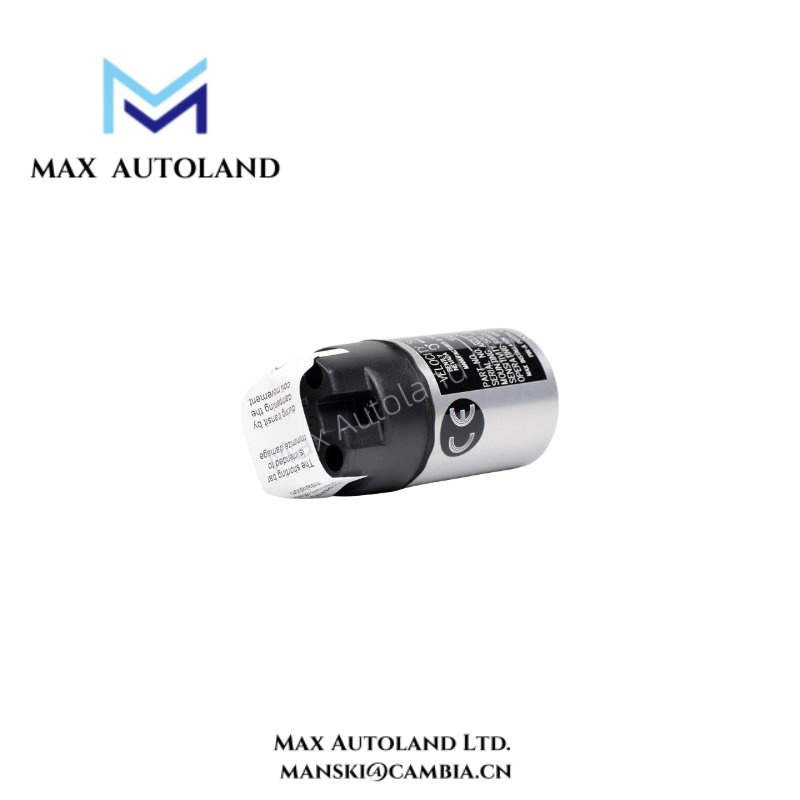

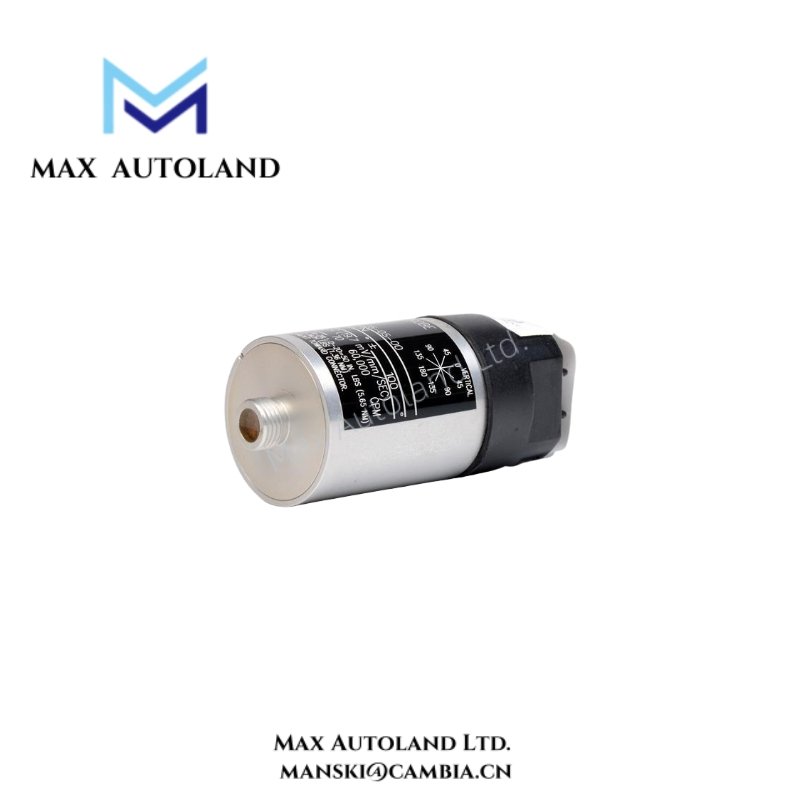

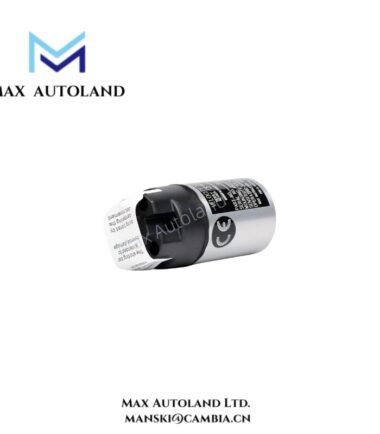

Built for harsh industrial environments, the 9200 series combines proven Bently Nevada engineering with rugged mechanical design. In addition, the 9200-06-01-11-04 version features a top-exit connector and a compact side-mount housing, making it ideal for tight installation spaces and field monitoring setups. Therefore, it supports plant operators in maintaining safe, efficient, and predictive machinery performance.
Specification
| Category | Specification |
|---|---|
| Electrical | |
| Sensitivity | 20 mV/mm/s (500 mV/in/s) ±5% |
| Load | 10 kΩ between terminals A and B |
| Sensitivity Temperature Coefficient | 0.2% per °C |
| Frequency Response | 4.5 to 1000 Hz (+0, -3 dB typical) |
| Dynamic Range | 2.54 mm (0.1 in) peak-to-peak maximum displacement |
| Velocity Range | 25 mm/s (1 in/s) at +22°C and 100 Hz |
| Coil Resistance | 1.25 kΩ ±5% |
| Inductance | 125 mH typical |
| Amplitude Linearity | ±5% from 0.01 to 5.0 in/s at 100 Hz |
| Shock Resistance | Withstands 50 g peak along non-sensitive axis |
| Transverse Sensitivity | ±10% maximum at 100 Hz and 1 in/s |
| Polarity | Pin A positive relative to Pin B when case moves toward connector |
| Maximum Cable Length | 305 m (1,000 ft) |
| Environmental | |
| Operating Temperature | −29°C to +121°C (−20°F to +250°F) |
| Dust/Moisture Resistance | Dust- and moisture-sealed for field reliability |
| Relative Humidity | Up to 95% non-condensing; 100% non-submerged with integral cable |
| Maximum Altitude | 2000 m (6,561 ft) above sea level |
| Mechanical | |
| Transducer Mounting Angle / Minimum Operating Frequency Option | 0° ±100, 10 Hz (600 cpm) |
| Connector / Cable Option | Top Mount (no cable) |

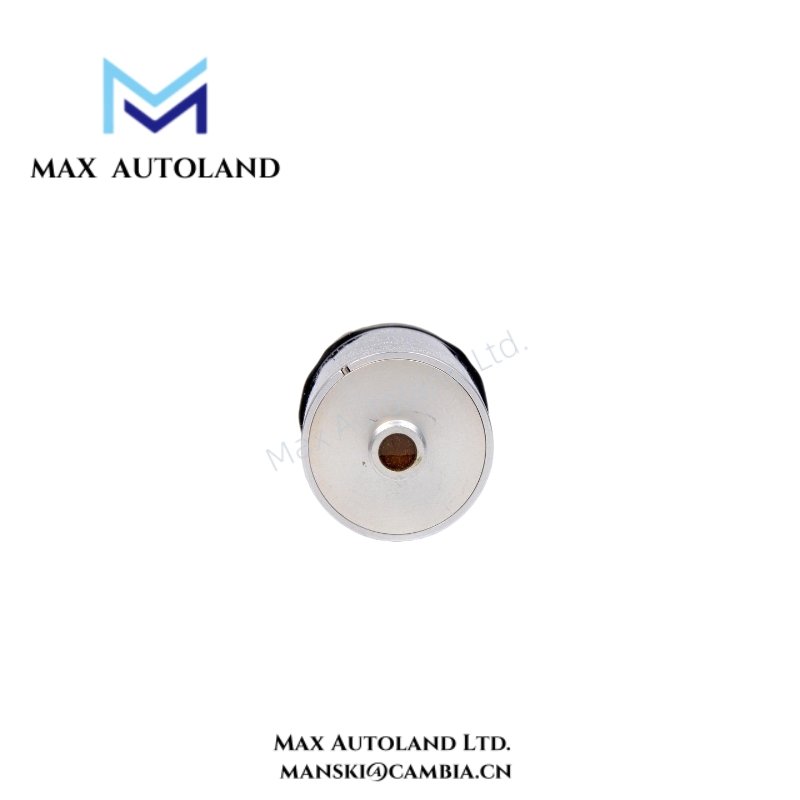

| Mounting Base Option | Isolated circular base, M10×1 stud |
| Material | Stainless steel housing |
| Agency Approval Option | ATEX / IECEx certified |
FAQ
No. It is a self-generating two-wire device that produces a signal directly from vibration.
Q2: Can this transducer work with the 3500 Machinery Protection System?
Yes, it is fully compatible with Bently Nevada 3300 and 3500 systems.
Q3: What makes the 9200 series different from solid-state sensors?
It uses moving-coil technology, which provides linear and impact-resistant velocity measurement.
Q4: Is this model suitable for outdoor or offshore use?
Yes, it is dust- and moisture-sealed for reliable operation in harsh industrial environments.
Q5: What is the advantage of the top-exit connector?
It simplifies cable routing and prevents strain during installation in confined spaces.
