Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | 74712-06-05-03-00 |

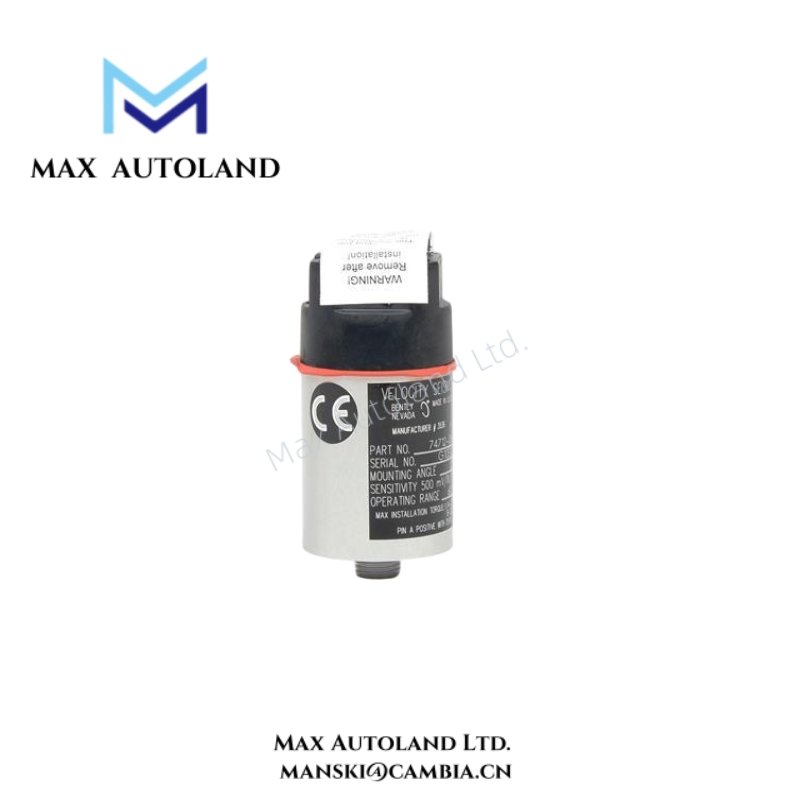

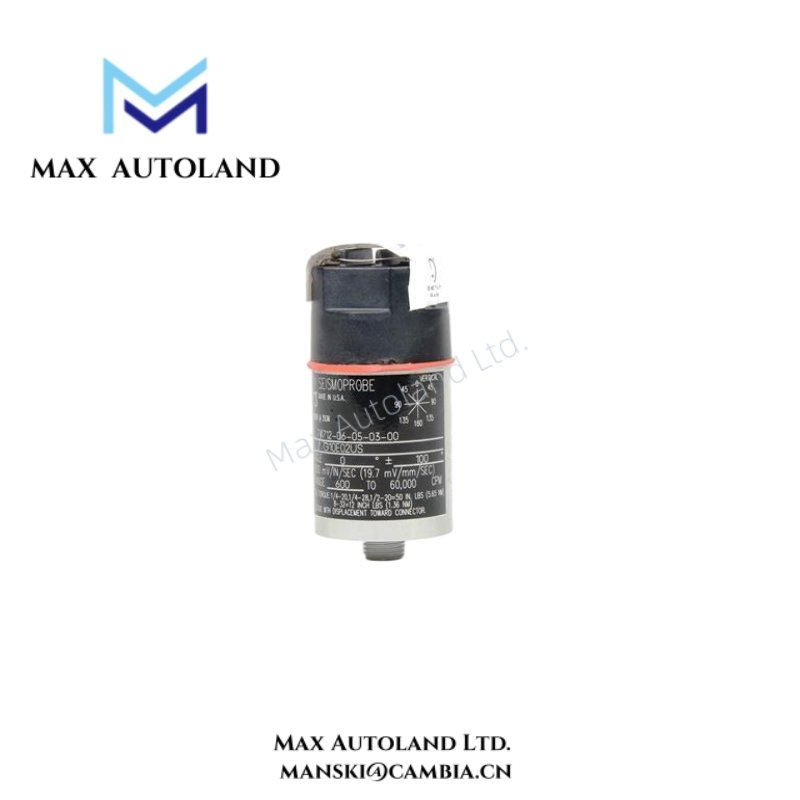

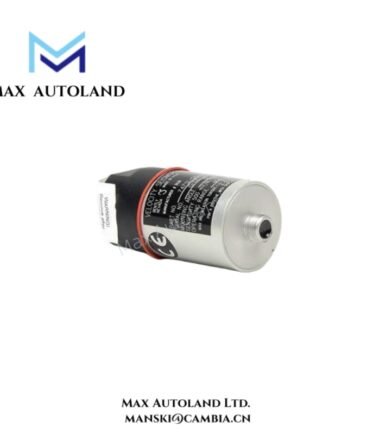

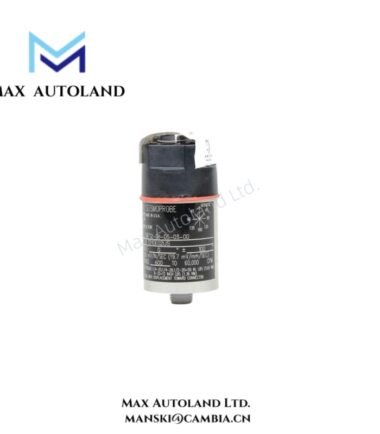

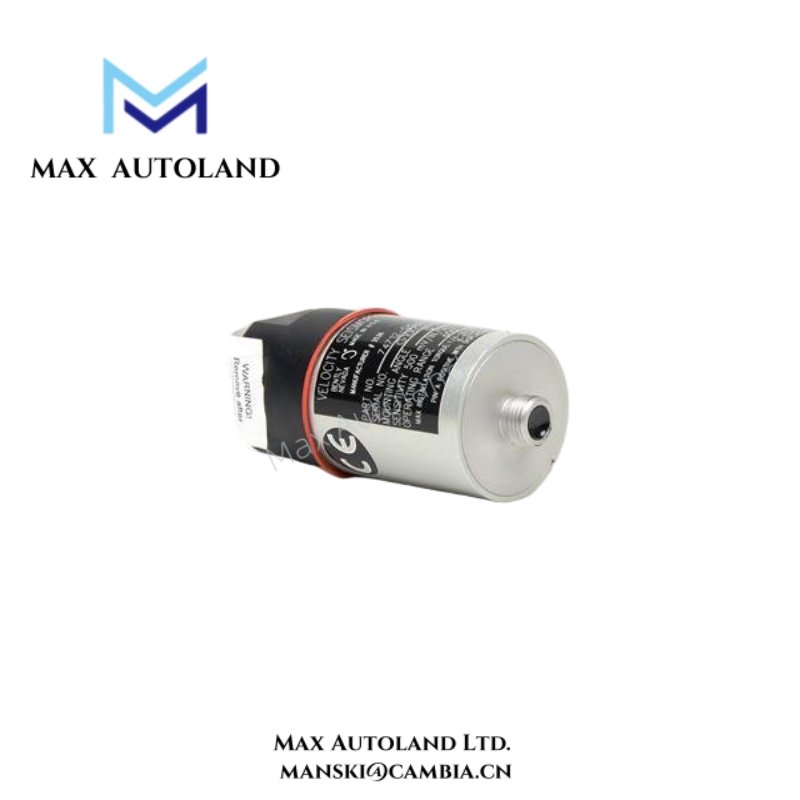

| Transducer Type | Seismoprobe Velocity High-Temperature Two-Wire Transducer |
| Output Sensitivity | 3.94 mV/mm/s (100 mV/in/s) |
| Frequency Response | 10 to 1,000 Hz (±5%) |
| Dynamic Range | 50 mm/s peak (2 in/s peak) |
| Operating Temperature | –54°C to +200°C |
| Power Type | Two-wire externally powered |
| Current Consumption | < 15 mA typical |
| Polarity | Positive output with increasing velocity |
| Mounting Method | Stud or bracket mounting |
| Mounting Thread | 1/4-28 UNF or model-specific thread |
| Housing Material | Stainless steel |
| Environmental Rating | Designed for harsh and corrosive industrial sites |
| Humidity Resistance | 95% non-condensing |
| Shock Limit | 500 g peak |
| Cable Connection | Integral cable or connector configuration |
| Weight | Approximately 225 g |
| System Compatibility | Fully compatible with Bently Nevada monitoring systems |
FAQ
Its stainless-steel housing and optimized internal components allow continuous operation in extreme temperatures.Q2: Can it integrate with Bently Nevada monitoring systems?
Yes, it works smoothly with standard Bently Nevada protection and vibration-monitoring platforms.Q3: How should engineers mount the transducer?
A rigid stud-mount or approved bracket ensures accurate vibration readings and stable mechanical coupling.
Q4: What equipment commonly uses this sensor?
It is widely used on compressors, steam turbines, industrial pumps, and other high-temperature rotating machinery.
