Overview

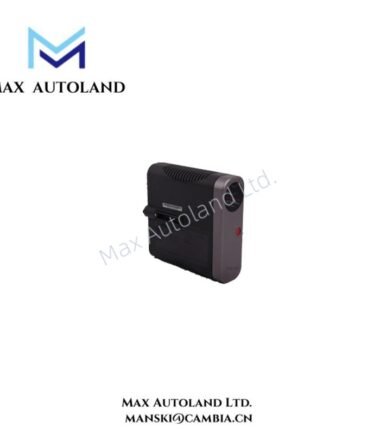

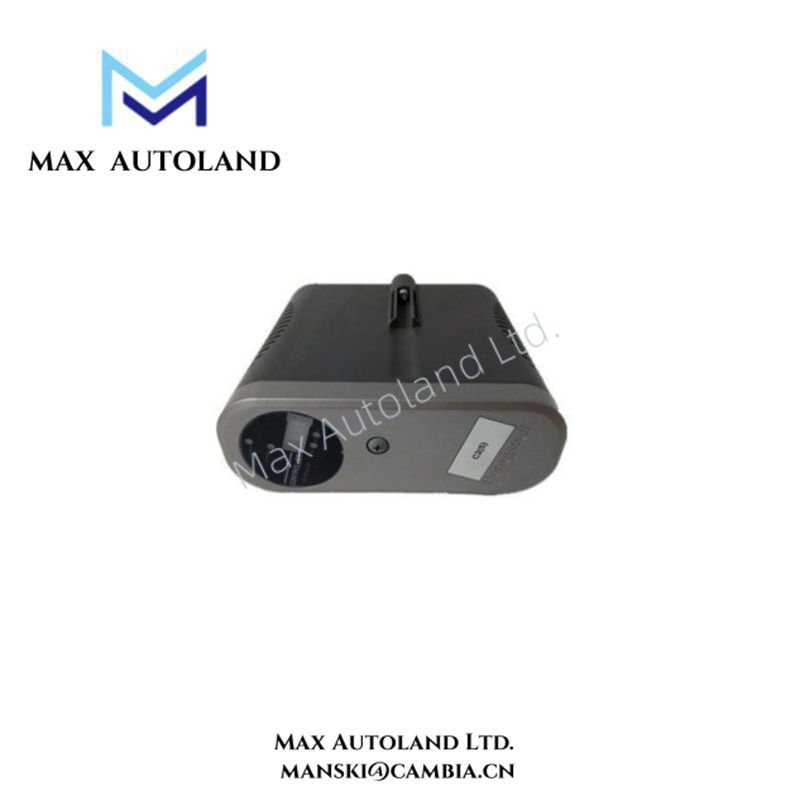

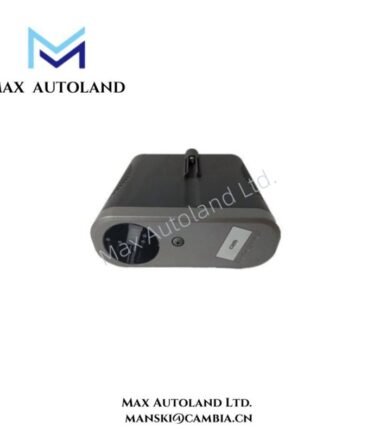

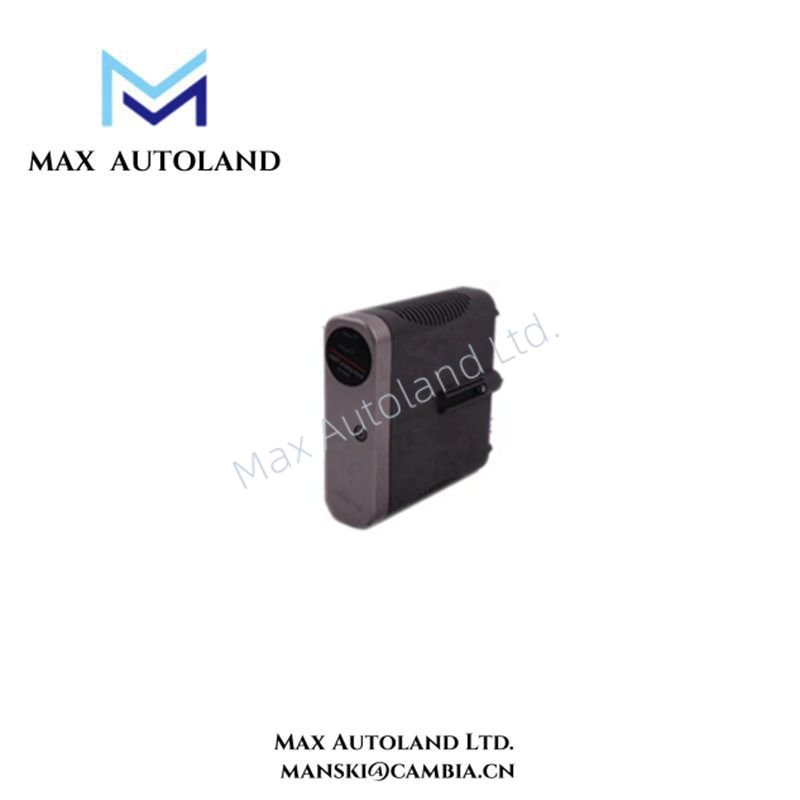

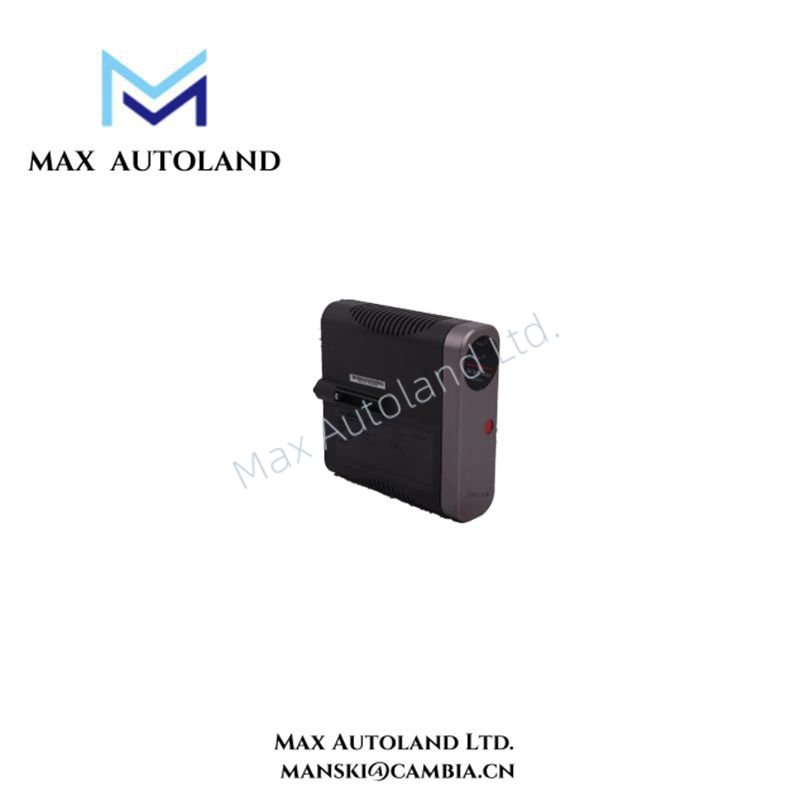

The Honeywell 8C-SDOX01 functions as a relay extension board designed to work with Digital Output (DO) I/O modules in the Honeywell Series 8 system. Every module provides 32 isolated Form C relay outputs. Furthermore, the board supports hot-swapping under power, enhancing system uptime and maintenance efficiency.
The Digital Output Relay provides a dry contact for isolated low voltage / low current or high voltage / high current discrete output applications. Each relay supports a Form-C output contact. The Relay extension board connects the Digital Output 24V (DO24V) IOM with DO IOTA to support the Relay output.
Specification
| Parameter | Specification | |||
| Relay Extension Board | 8C-SDOX01 | Relay Extension,Coated | 15″ | |
| Output Channels | 32 isolated Form C(SPDT)contacts.Three screws per channel(NC, NO,COM)for Normal Open or Normal Close usage. | |||
| Contact Type | Au over AgSnO2 | |||
| Maximum Load Voltage | 250 VAC(RMS/125VDC | |||
| Maximum Steady State Load Current per Output | Current | Voltage | ||
| 5A | 125/250 VAC(resistive) | |||
| 3A | 30 VDC(resistive) | |||
| 1A | 48 VDC(resistive) | |||
| 0.2 A | 125 VDC(resistive) | |||
| 2A | 125/250 VAC(inductive=0.4 power factor) | |||
| 1A | 30 VAC(inductive L/R=100 ms) | |||
| 0.3 A | 48 VAC(inductive L/R=100 ms) | |||
| 0.1A | 125 VAC(inductive L/R=100 ms) | |||
| Minimum Load Voltage | 5VDC1 | |||
| Minimum Load Current | 10 mAor 100mA1 | |||
| Inrush Current(Max) | 10A for 4s at a 10%duty cycle | |||
| Voltage Rating | 24 VDC | |||
| Module current rating | 1010 mA | |||
| Isolation(Channel-to-channel,and channel-to-logic common) | 1500 VAC RMS or±1500 VDC | |||
| Turn On Time | 20 ms maximum | |||
| Turn Off Time | 20 ms maximum | |||
Manual/Datasheet PDF
Honeywell Series 8 Controller and IO Specification
