Overview

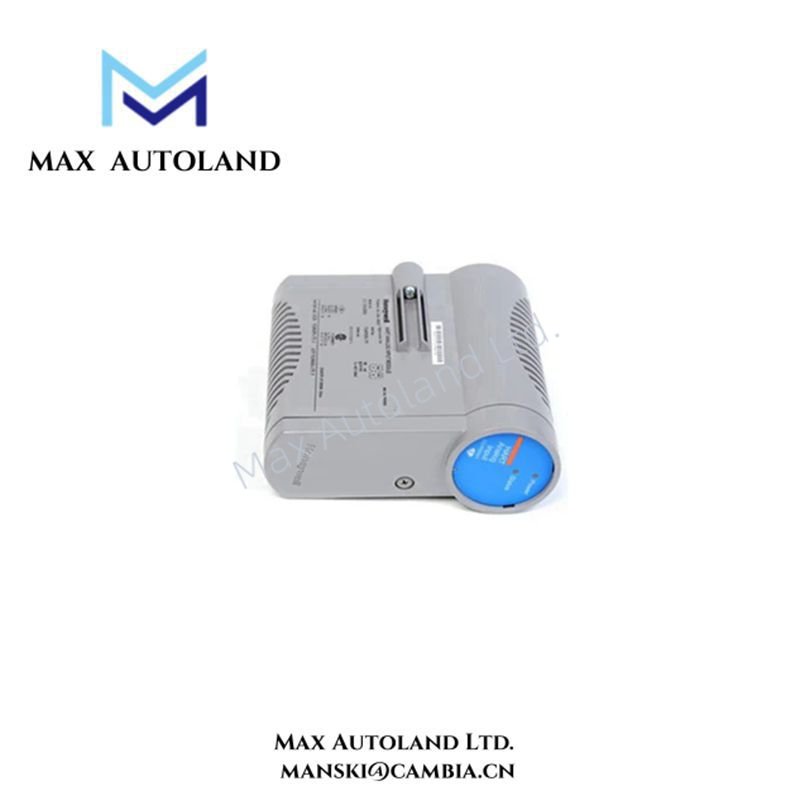

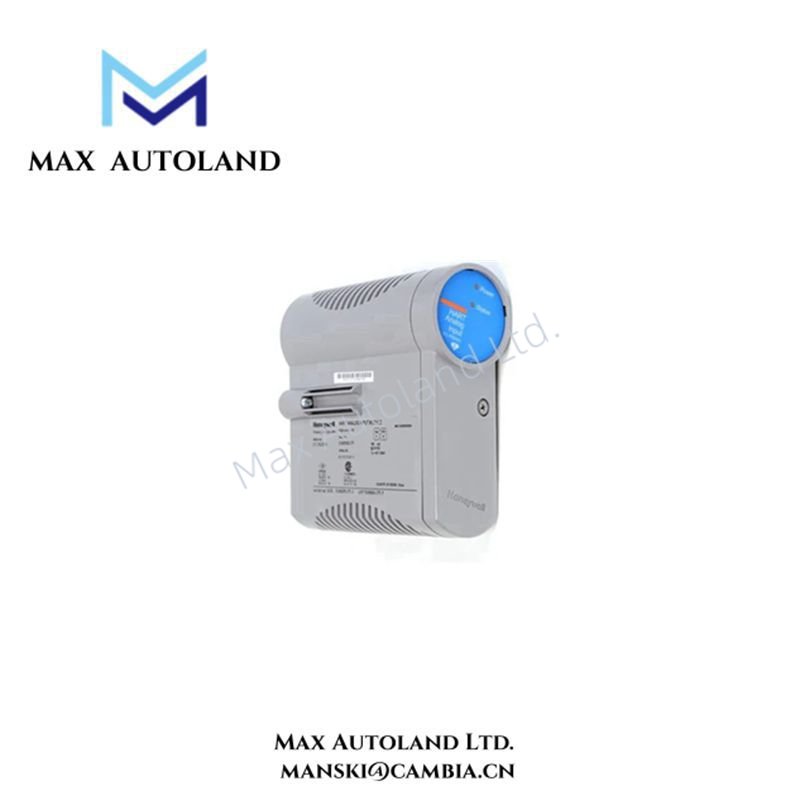

The Honeywell 8C-PDISA1 51454473-200 is a high-performance digital input module engineered to integrate seamlessly with the Honeywell Experion C300 Controller. Consequently, it delivers precise and reliable digital input functionality, which makes it ideal for industrial automation systems.
Moreover, the Digital Input Sequence of Events (DISOE) module accepts 24VDC discrete signals as inputs. Additionally, it time-tags all inputs, supporting Sequence of Events with 1ms resolution, which ensures highly accurate event tracking and diagnostics.
Specification
| Parameter | Specification | ||
| Input/Output Module | 8C-PDISA1-Digital Input Sequence of Events,Coated | ||
| IOTA Modules | 8C-TDILA1 | Non Redundant,Coated | 9″ |
| 8C-TDILB1 | Redundant,Coated. | 12″ | |
| Input Channels | 32 | ||
| nput Channel Scanning(PV) | Normal=20ms;Fast=5ms | ||
| Digital Input Resolution for Sequence of Events (SOE) | 1ms | ||
| Voltage Rating | 24 VDC | ||
| DI Power Voltage Range | 18 to 30 VDC | ||
| Module current rating | 95 mA | ||
| Galvanic lsolation(any input terminal voltage referencedto common) | 1000 VAC RMS or±1000 VDC | ||
| Isolation Technique | Optical(in IOM) | ||
| ON Sense Voltage/Current | 13 VDC(min)or 3 mA(min) | ||
| OFF Sense Voltage/Current | 5 VDC(max)or 1.2mA(max) | ||
| Input Impedance | 4.2 KQ | ||
| Absolute Delay Across Input Filter and lsolation | 5ms±20% | ||
| Field Resistance for Guaranteed ON Condition | 300 Qmax @15VDC | ||
| Field Resistance for Guaranteed OFF Condition | 30 KQmin @30 VDC | ||
| Module Removal and Insertion under power | Supported | ||
