Overview

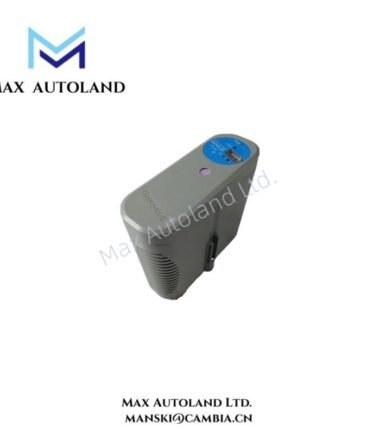

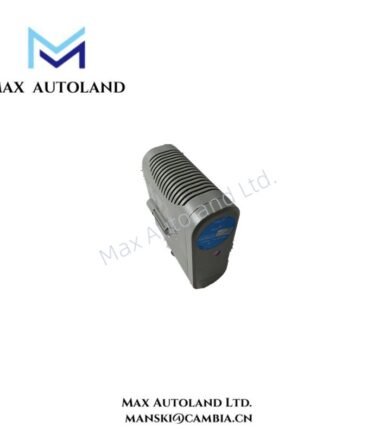

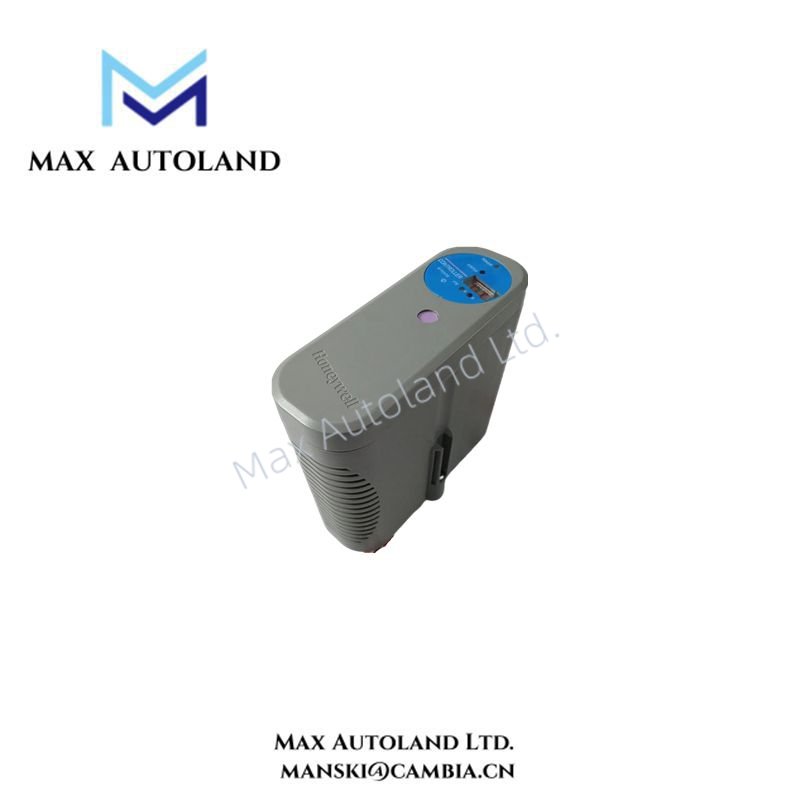

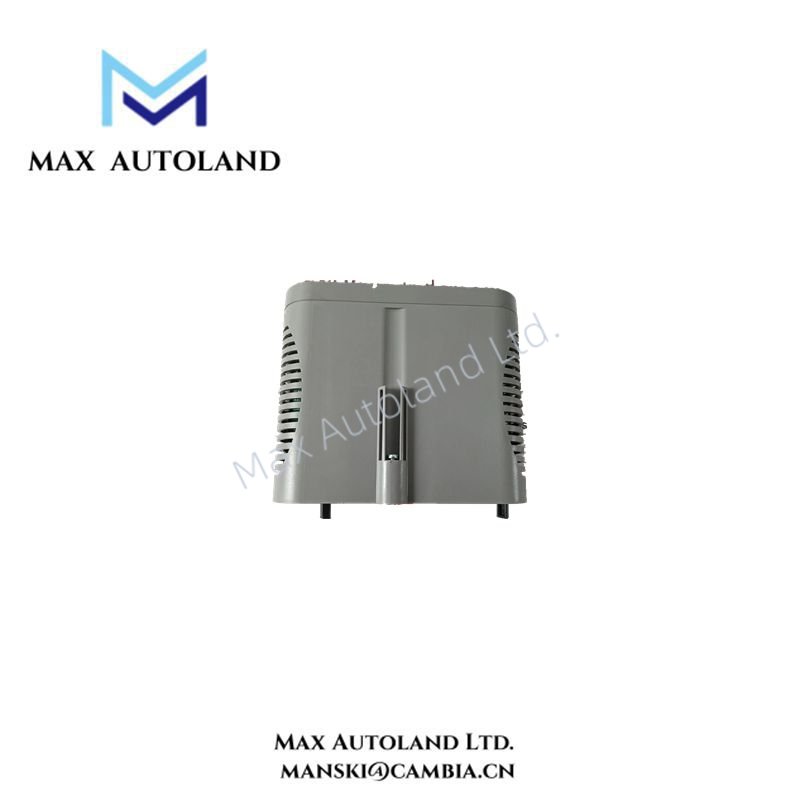

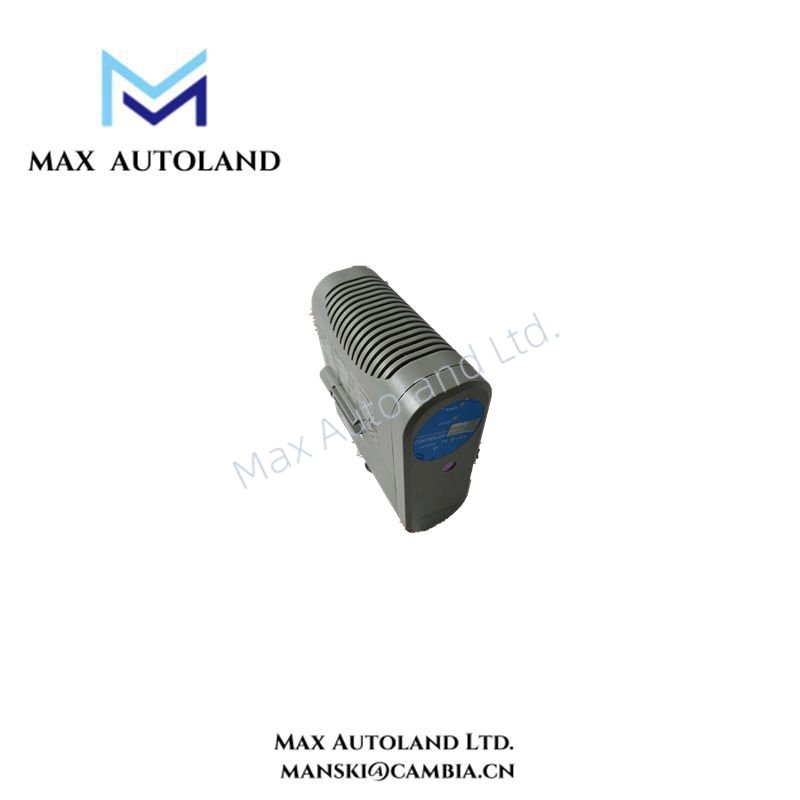

The Honeywell 8C-PCNT02 is a coated Processor Controller Module designed for the Experion C300 Series 8 system. It integrates dual ARM Cortex-A9 processors to manage control tasks and ensures seamless communication with I/O modules. This module supports optional redundancy, providing reliable operation in critical industrial applications.
Specification
| Attribute | Specification |
|---|
| Model Number | 8C-PCNT02 |
| Manufacturer | Honeywell |
| Series | Experion Series 8 |
| Module Type | Processor Controller Module (Coated, Non-Redundant/Redundant Capable) |
| Processors | Dual ARM Cortex-A9 |
| Memory | 512MB RAM, 1GB Flash |
| I/O Link Interfaces | Redundant |
| Mounting Type | DIN Rail or Panel |
| Operating Voltage | 24V DC nominal (20–30 V DC range) |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –55°C to +85°C |
| Dimensions (L × W × H) | 9 inches (22.9 cm) length |
| Weight | Approximately 1 kg |
