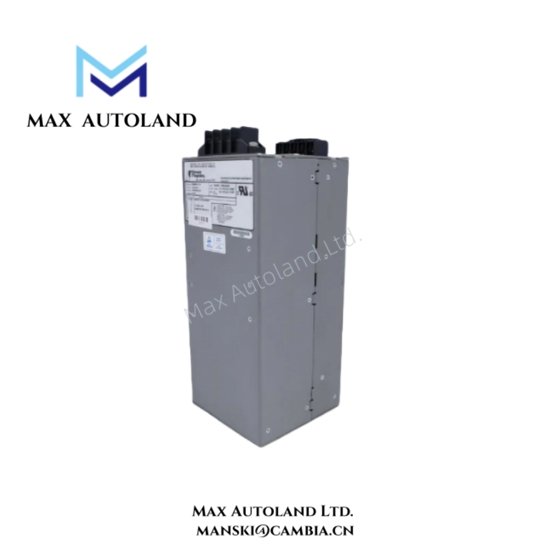

Overview
Specification
| Parameter | Specification / Description |
|---|---|
| Model Number | 80026‑524‑01 |
| Module Type | Redundant / Fault‑Tolerant Power Supply Module |
| Power Rating | 1500 W (AC/DC) |
| Input Voltage Range | 100–240 VAC, single‑phase, 50/60 Hz |
| Input Current (typical) | Approx. 23 A |
| Output Voltage | 56 V DC (regulated) |
| Maximum Output Current | ~27 A (dependent on load and thermal conditions) |
| Efficiency | ~85–92% typical |
| Ripple & Regulation | Meets industrial power supply standards |
| Protection Features | Overload, overvoltage, undervoltage, overheat protection |
| Diagnostics / Indicators | Status LEDs for input/output, fault, and load conditions |
| Operating Temperature Range | –20°C to +70°C |
| Storage Temperature Range | –40°C to +85°C |
| Humidity | 5–95% RH (non‑condensing) |
| Vibration Resistance | Industrial vibration tolerance per specification |
| Shock Resistance | Withstands industrial shock profiles |
| Mounting Options | DIN rail or panel mount |
| Protection Rating | Industrial enclosure rating (robust for harsh environments) |
| Certifications & Compliance | CE, UL, CSA rated |
| Dimensions (approx.) | ~250 × 150 × 100 mm (varies slightly by region) |
| Weight (approx.) | ~3.5–3.8 kg |
| Altitude Capability | Up to ~2000 m without derating (standard industrial) |
FAQ
A1: Yes, it provides dual power paths with automatic failover for fault-tolerant operation.
Q2: What output voltage and current does it provide?
A2: The module delivers 24 V DC with a maximum output current of 12.5 A.
Q3: Does it include protection against short circuits or overloads?
A3: Yes, it features overload, short-circuit, and thermal protection for safe operation.
Q4: How can engineers monitor the module’s status?
A4: Integrated LEDs and diagnostics provide real-time monitoring and troubleshooting guidance.
Q5: What industrial environments is this module suitable for?
A5: It is ideal for oil & gas, chemical plants, power generation, and manufacturing facilities.
Q6: What certifications does the power supply have?
A6: The module is certified to UL, CE, and CSA standards.
