Overview
Engineered for flexibility, the 1734-IB4 allows easy integration into large-scale automation networks. Its modular design supports quick installation and scalable system expansion. Furthermore, field-side indicators deliver real-time status for each input channel, improving operational visibility.
Specification
| Attribute | Specification |
|---|---|
| Module Type | Digital Input Module |
| Channels | 4 isolated digital inputs |
| Input Voltage | 24 VDC nominal |
| Input Voltage Range | 10–30 VDC |
| Input Current | 2 mA nominal per channel |
| Input Filter | 0.5 ms typical |

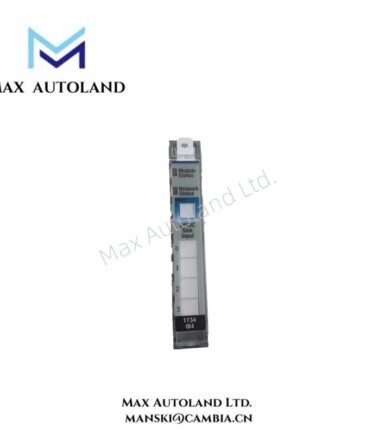

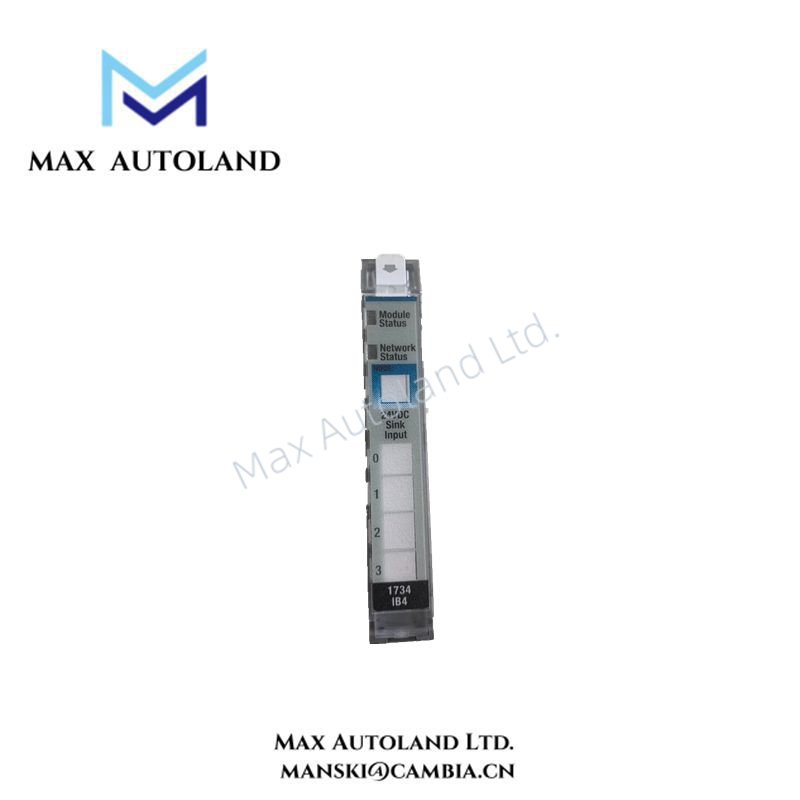

| Status Indicators | 4 yellow – input status, 2 green/red – module/network status |
| Terminal Base | 1734-TB or 1734-TBS |
| POINTBus Current | 75 mA max @ 5 V DC |
| Power Dissipation | 0.8 W max |
| Isolation Voltage | 50 V continuous, reinforced insulation |
| Dimensions (HxWxD) | 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in) |
| Weight | 33 g (1.17 oz) |
| Enclosure Type | Open-style |
| Temperature Rating | T4 – North America, UKEX/ATEX, IECEx |
FAQ
A: Yes, 1734-IB4 is 100% original Rockwell Automation, factory-sealed.
Q: How fast can you ship?
A: We ship within 3 days to 2 weeks depending on order quantity.
Q: What logistics services are used?
A: We typically use DHL, FedEx, and UPS for safe and timely delivery.
Q: Can I return if there’s a quality issue?
A: Yes, we support returns within 30 days.
Q: What is the input voltage range for this module?
A: The 1734-IB4 accepts 10–30 VDC signals for all four channels.
Q: Which wiring base is compatible?
A: Use 1734-TB or 1734-TBS wiring base assemblies.
