Overview
Specification
| Specification | Details |
|---|---|

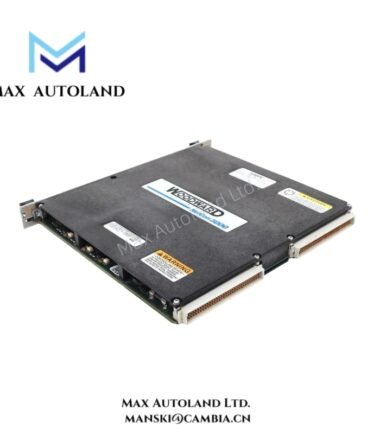

| Model / Part Number | 5466-258 |
| Module Type | Simplex Discrete Input/Output Module |
| Inputs | 48 discrete inputs, configurable |
| Outputs | 24 discrete outputs, relay or transistor-driven |
| Input Voltage Range | 24 VDC nominal |
| Output Voltage Range | 24 VDC nominal |
| Maximum Output Current | 0.5 A per output |
| Input Isolation | Optically isolated |
| Output Protection | Overvoltage, short-circuit, thermal protection |
| System Compatibility | MicroNet Digital Control Simplex configuration |
| Operating Temperature Range | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature Range | -20°C to +70°C (-4°F to 158°F) |
| Relative Humidity | Up to 95% RH, non-condensing |
| Vibration Resistance | 5–25 Hz: 0.3 mm, 25–100 Hz: 2 g |
| Shock Resistance | 10 g / 11 ms half-sine pulse |
| Indicators / LEDs | Input status, output status, module health |
| Connectors / Interface | Standard MicroNet VME connectors |
| Enclosure / Mounting | Rack-mounted, VME standard |
| Weight | Approximately 1.8 kg |
| Dimensions (H x W x D) | 125 mm x 50 mm x 200 mm |
| Safety & Compliance | CSA, CE, ATEX (as applicable) |
FAQ
A1: This module supports 48 discrete inputs and 24 discrete outputs for versatile control applications.
Q2: Can this module be installed in an active system without shutdown?
A2: Yes, it supports hot-swappable installation, allowing safe replacement without powering down.
Q3: What type of protection does the module provide for outputs?
A3: Each output is safeguarded against overvoltage, short-circuit, and thermal overload conditions.
Q4: Is the module compatible with MicroNet simplex configurations?
A4: Yes, it is fully compatible with MicroNet Simplex Digital Control systems for seamless integration.
Q5: What is the operating temperature and humidity range?
A5: It operates reliably between 0°C to 55°C and supports up to 95% relative humidity, non-condensing.
Q6: Does the module provide visual indicators for diagnostics?
A6: Yes, LEDs display input and output status as well as module health for fast troubleshooting.
