Overview
Specification
| Parameter | Description |
|---|---|

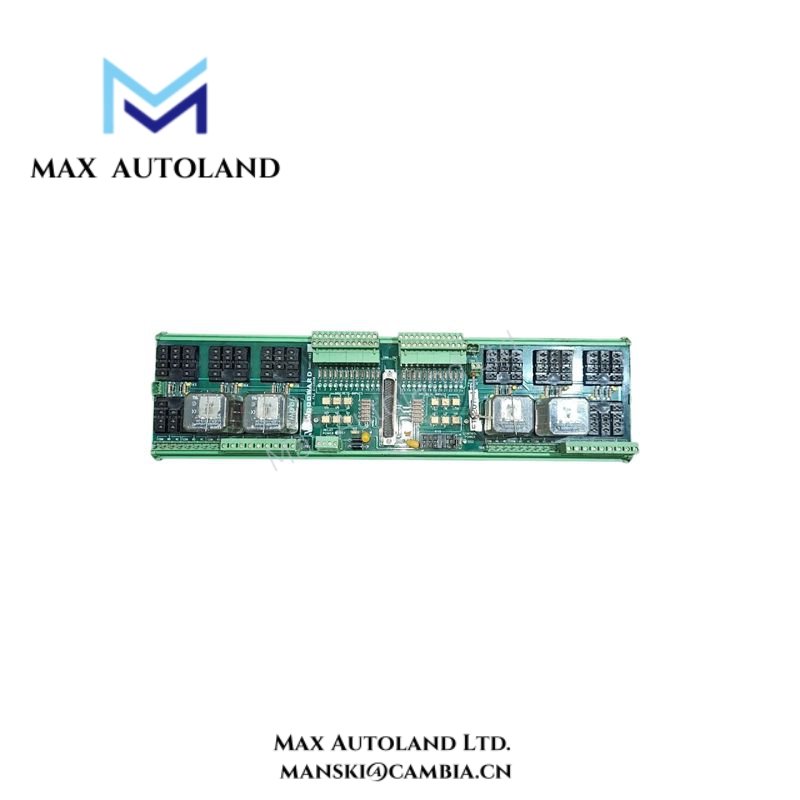

| Model | 5441-693 |
| Manufacturer | Woodward |
| Module Type | Discrete I/O Module |
| Inputs | 16 digital inputs (configurable) |
| Outputs | 16 digital outputs (configurable) |
| Input Voltage Range | 18 to 32 VDC |
| Output Voltage Range | 18 to 32 VDC |
| Output Current | Up to 0.5 A per channel |
| Isolation | Galvanic isolation between channels |
| Communication Interface | Compatible with Woodward control networks |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Cooling | Convection-cooled, fanless |
| Dimensions | Compact DIN-rail or panel-mount design |
| Compliance | CE, UL, and marine certifications (where applicable) |
FAQ
A1: It integrates with Woodward turbine and engine control platforms such as the Peak® 150 and MicroNet™ systems.Q2: Can the module operate in high-temperature environments?
A2: Yes. It supports continuous operation from -40°C to +70°C without performance degradation.
Q3: Does the module support both input and output configurations?
A3: Absolutely. Each channel can be configured as either input or output depending on system requirements.
Q4: How is maintenance performed on this module?
A4: Maintenance is straightforward through built-in diagnostics and front-access terminals that simplify testing and replacement.
