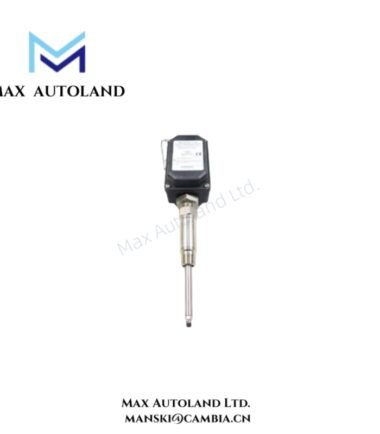

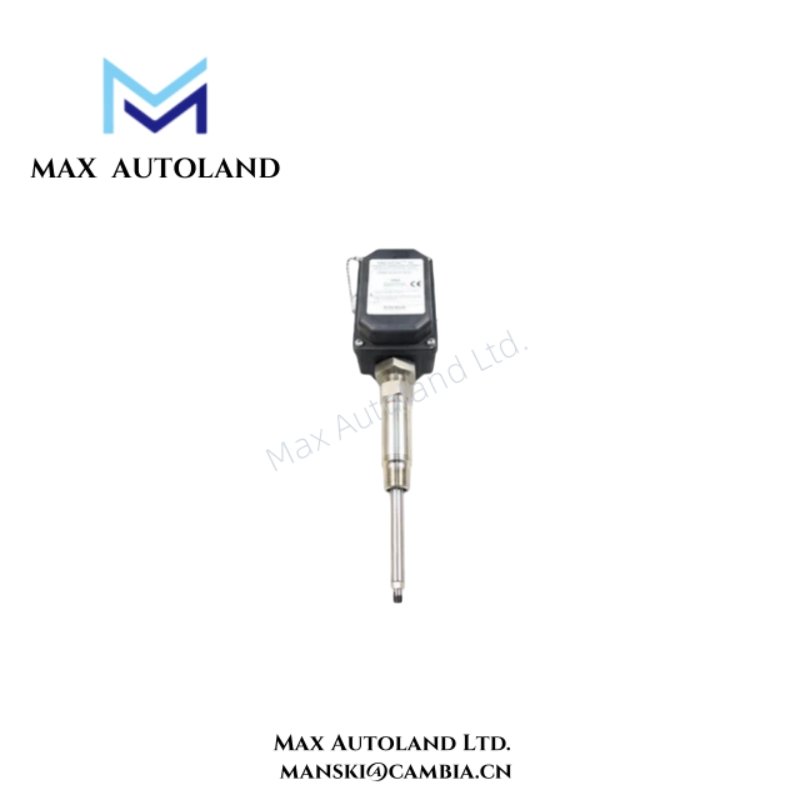

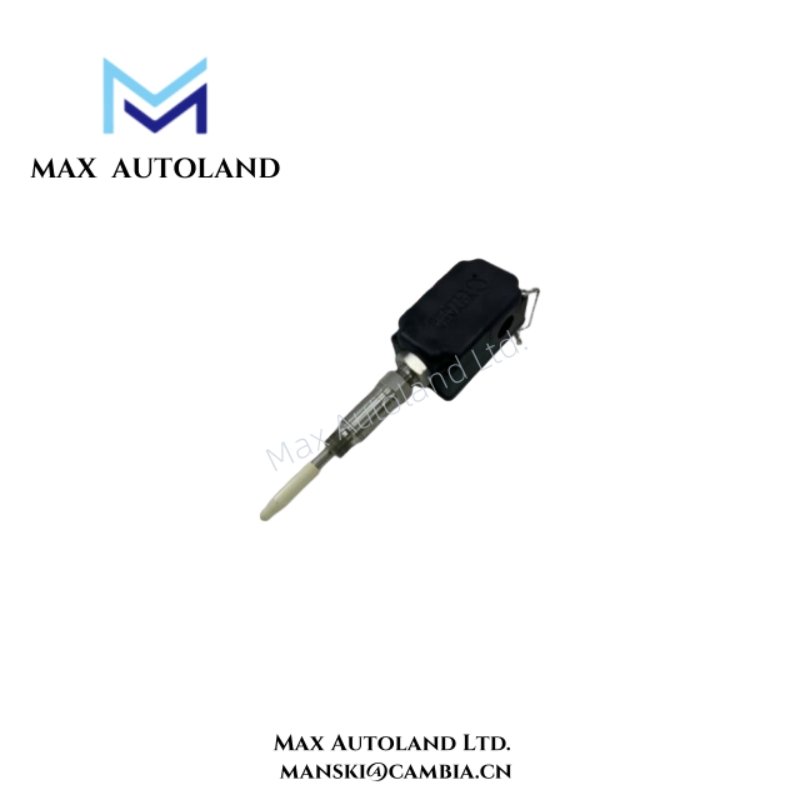

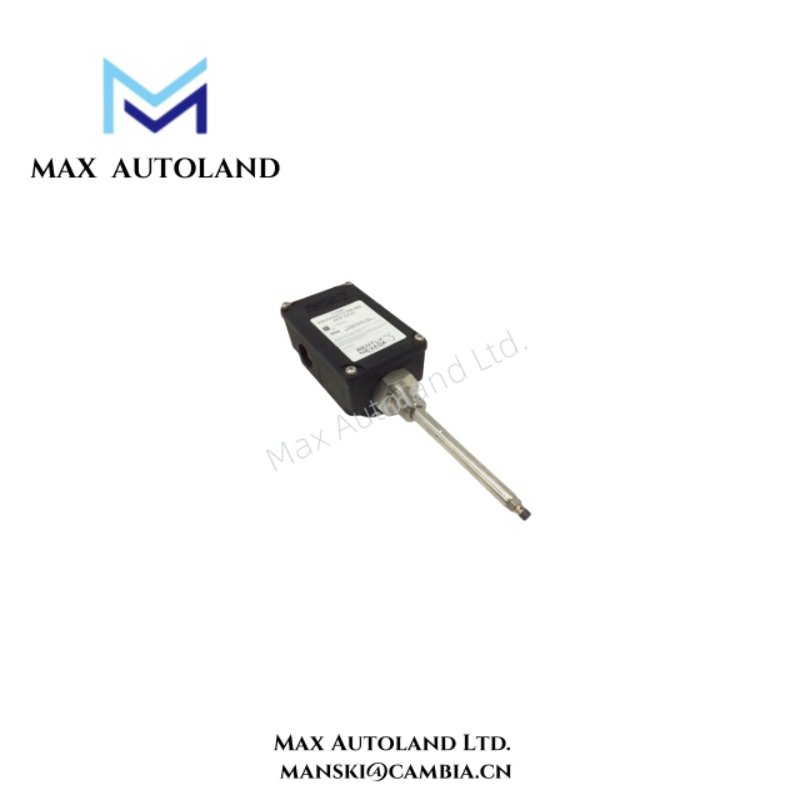

Overview
Engineered with high-strength polyphenylene sulfide (PPS) thermoplastic and corrosion-resistant stainless steel components, this housing delivers long-term reliability even in high-temperature or harsh chemical environments. In addition, its modular design is compatible with 3300 XL proximity probes and various conduit fittings, allowing integration with existing monitoring systems. Therefore, engineers can deploy this assembly confidently for critical applications in turbines, compressors, pumps, and other rotating machinery.
The 32000 series housing complies with API 670 standards and supports intrinsically safe configurations when used with approved transducer systems and appropriate barriers. Its environmental ratings, including CSA Type 4X, IP66/NEMA 4X, and EN50014 electrostatic dissipation compliance, guarantee robust performance in industrial settings.
Specification
| Parameter | Specification |
|---|---|
| Model | 32000-28-05-08-060-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Material | Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic |
| Sleeve Material | AISI 304 stainless steel |
| Outer Sleeve & Screws | AISI 303 stainless steel |
| O-Ring Material | Neoprene |
| Probe Compatibility | 3300 XL 8 mm proximity probes |
| Environmental Rating | CSA Type 4X, IP66/NEMA 4X, EN50014 compliant |
| Temperature Range | -51 °C to +105 °C (-60 °F to +221 °F) |
| Hot Water / Steam Exposure | Up to 1 week at 95 °C (203 °F) without significant strength loss |
| Recommended Torque (Retaining Nut) | 29.4 N·m (260 in·lb) |
| Housing Strength | Supports 912 N (205 lb) at 38 mm (1.5 in) from unsupported end |
| Housing Impact Strength | Certified for 4 Joule impact at -39 °C & 115 °C; 7 Joule at ambient |
| Weight | 1.2 kg (2.6 lb) typical |
| Fittings | Two plugs, one M20 fitting; one cable seal grip with grommets for armored probe cable |
| Mounting Thread Option | 3/4-14 NPT (Required if ordering Standoff Adapter Option) |
| Probe with Connector | 3300 XL 8 mm probe, multiple approvals |
| Probe Cable Length | 0.5 m (20 in) |
FAQ
A1: Yes, it supports temperatures up to +105 °C (221 °F) and brief exposure to steam up to one week.
Q2: Which probes are compatible with this housing assembly?
A2: It supports 3300 XL 8 mm proximity probes and can integrate with selected 3500 series probes.
Q3: What certifications does this housing have?
A3: It meets CSA Type 4X, IP66/NEMA 4X, and EN50014 standards for environmental and electrostatic protection.
Q4: Can the probe be serviced without disassembling the machine?
A4: Yes, external access to the probe and cable allows easy adjustments or replacement.
