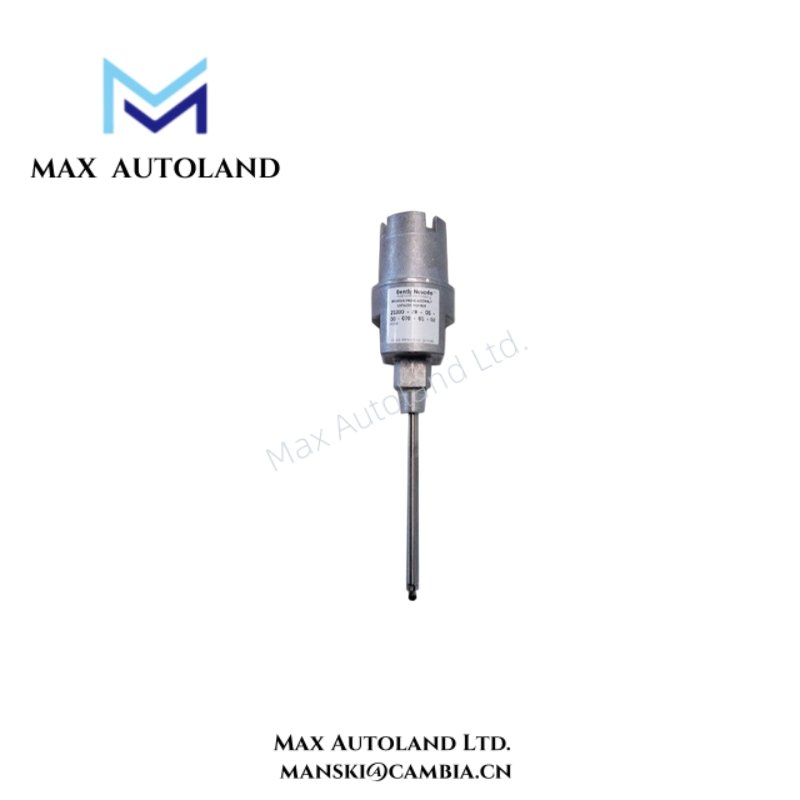

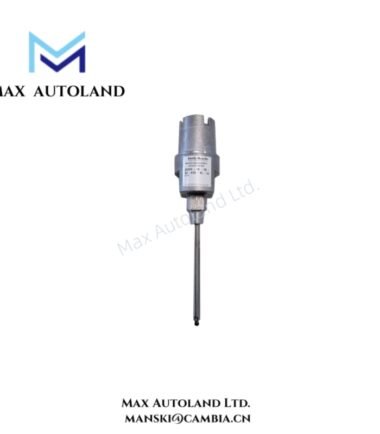

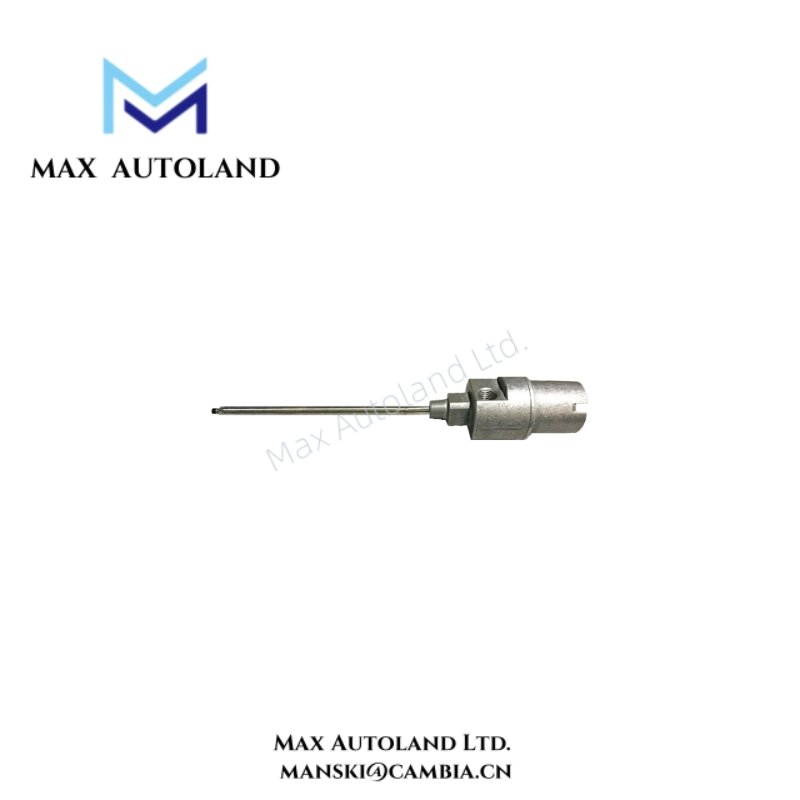

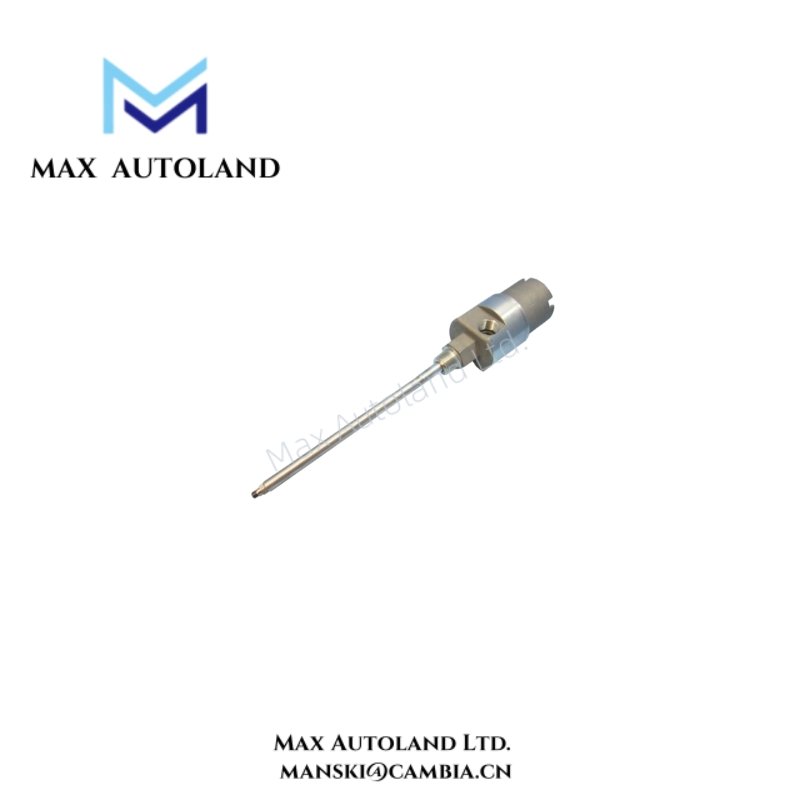

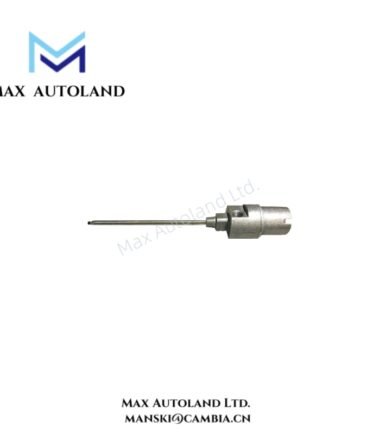

Overview
Constructed from corrosion-resistant materials, this housing assembly supports long-term reliability in turbines, compressors, and other rotating machinery. Furthermore, its modular design simplifies field installation and maintenance while offering broad compatibility with Bently Nevada proximity probe systems, including the 3300 and 3500 series. Therefore, engineers can deploy this assembly confidently in demanding industrial applications.
Specification
| Parameter | Specification |
|---|---|
| Model | 24701-28-10-00-040-00-02 |
| Product Type | Proximity Housing Assembly |
| Material Options | Stainless steel or anodized aluminum |
| Probe Mounting Compatibility | Compatible with Bently Nevada 3300 and 3500 series proximity probes |
| Environmental Rating | Weather-resistant and dust-tight; suitable for harsh industrial use |
| Mounting Style | Flanged base or stud-mount configuration |
| Cable Entry | Side or top entry (depending on configuration) |
| Sealing Type | O-ring sealed cover for enhanced environmental protection |
| Temperature Range | -29°C to +177°C (-20°F to +350°F) |
| Pressure Resistance | Designed for standard machinery enclosure pressure ratings |
| Certifications | CSA and CE options available (based on configuration) |
| Probe with Connector | 3300 XL 8 mm, with approval option |
| Probe Cable Length | 39 in (1.0 m) |
| Fittings | Two 3/4-14 NPT explosion-proof fittings |
FAQ
A1: It is optimized for Bently Nevada probes; compatibility with other brands should be verified case-by-case.
Q2: What is the maximum temperature the housing can withstand?
A2: The assembly operates reliably between -29°C and +177°C (-20°F to +350°F).
Q3: Does the housing provide environmental sealing?
A3: Yes, it includes O-ring seals and rugged construction to protect probes from oil, moisture, and dust.
Q4: Is the housing suitable for hazardous areas?
A4: CSA-approved models are available for classified environments; confirm configuration before installation.
Q5: Can the probe be replaced without removing the entire housing?
A5: Yes, the design allows convenient probe access and replacement, minimizing equipment downtime.
