Overview
Specification
| Parameter | Specification |
|---|---|

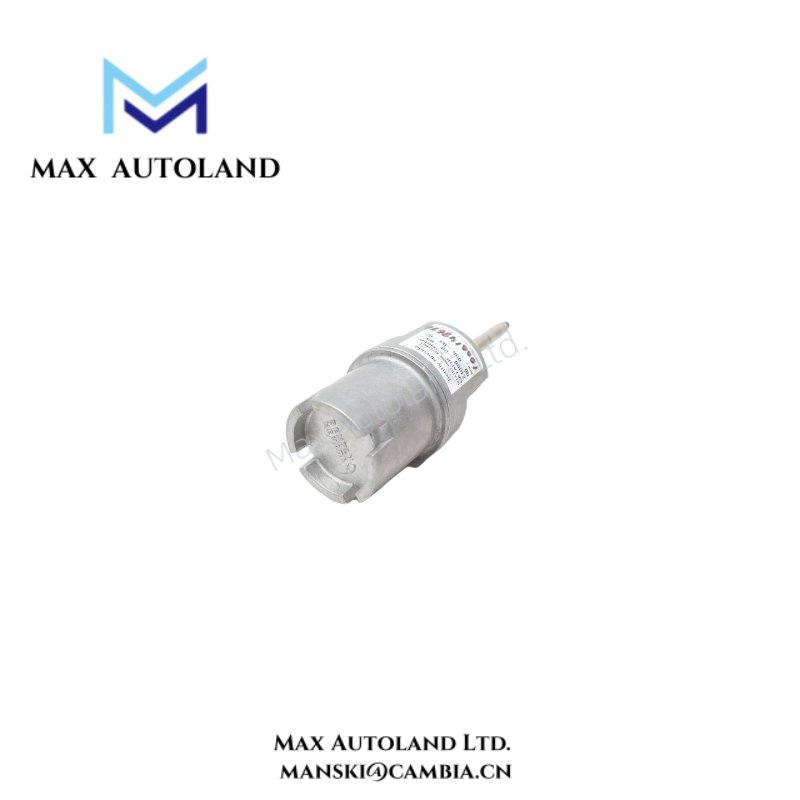

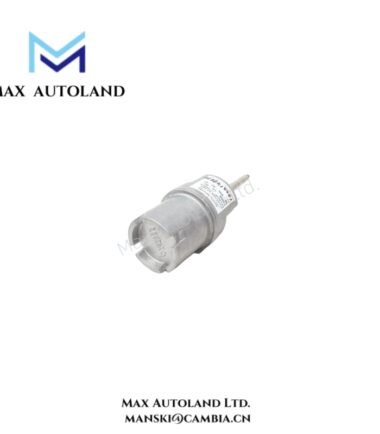

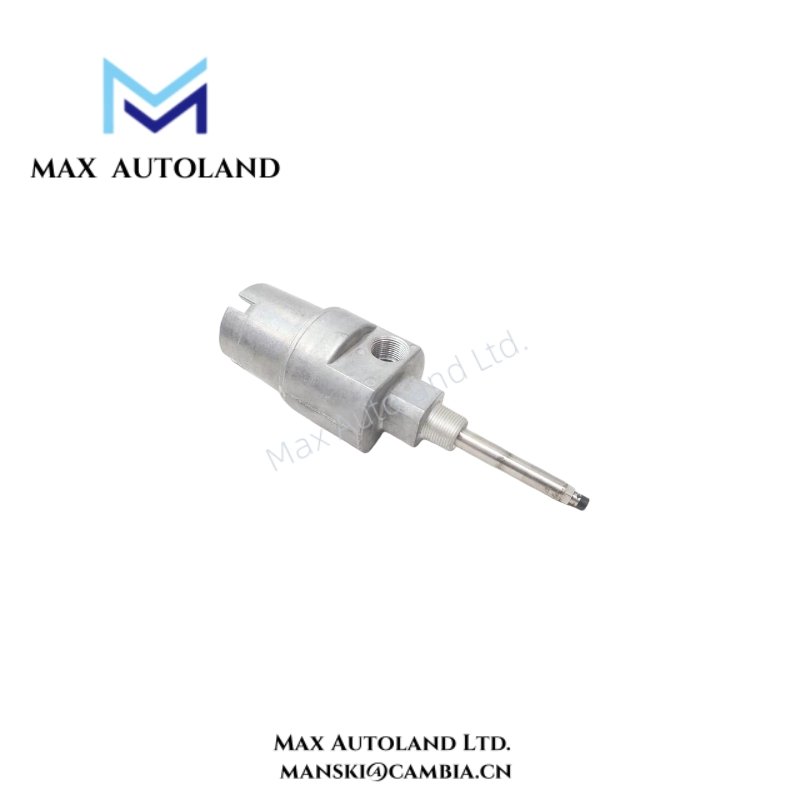

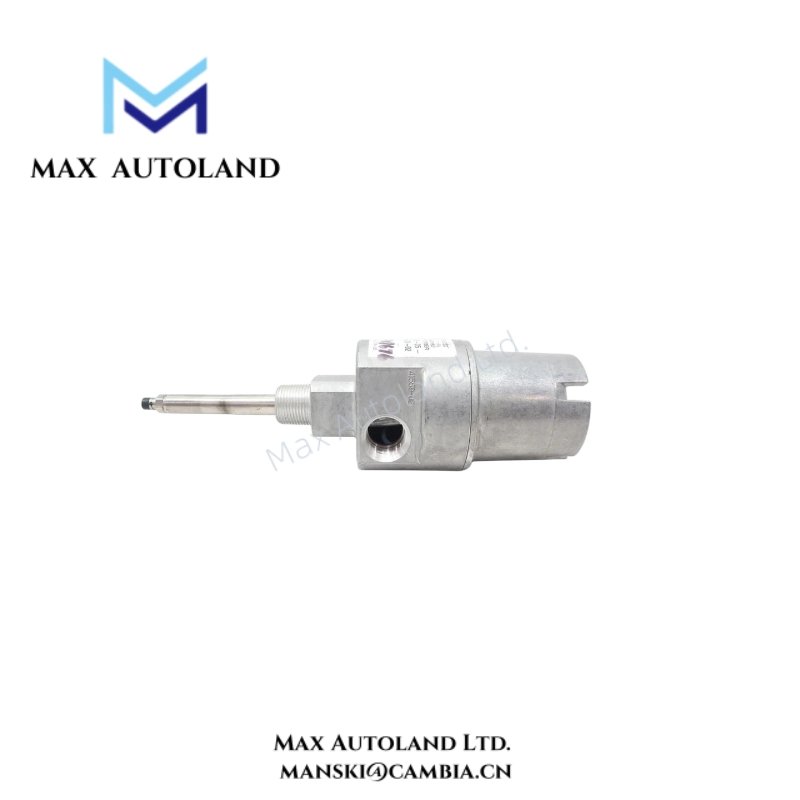

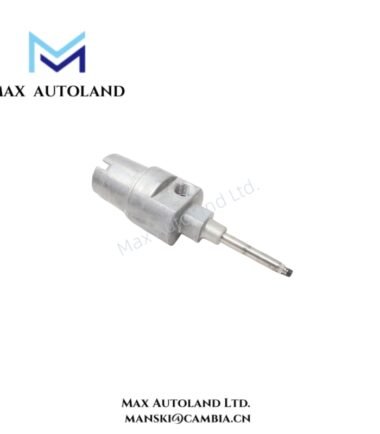

| Models | 21000 (Aluminum), 24701 (Stainless Steel), 164818 |
| Housing Material | Aluminum or Stainless Steel |
| Probe Compatibility | Bently Nevada Proximity Probes, 3300 XL 8mm probe |
| Probe with Connector | 3300 XL 8mm probe |
| Probe Cable Length | 1.0 m (39 in) |
| Mounting Options | Standard mount, Reverse mount, Optional standoff adapter |
| Standoff Adapter (Option C) | Minimum length 1.5 in (38 mm) |
| Mounting Thread | 3/4-14 NPT |
| Environmental Protection | Explosion-proof, CSA-certified |
| Optional Accessories | Conduit fittings, Probe sleeves of variable length, Thread seal |
| Fittings Included | One 3/4-14 NPT plug, One 3/4-14 to 1/2-14 NPT reducer, Cable seal grip with grommets for cable sizes: 1/8–3/16 in, 1/4–5/16 in, 5/16–3/8 in |
| Installation Type | External mounting on rotating machinery |
| Cover Type | Screw-in dome cover |
| Threaded Ports | For conduit connections |
| O-Rings | Included for sealing and environmental protection |
| Reverse Mount Probe | Included |
| Recommended Upgrade | 31000/32000 assemblies for flexible, non-explosion-proof installations |
FAQ
A1: Yes, the assemblies are CSA-certified and rated explosion-proof for hazardous environments.
Q2: What is the difference between the 21000 and 24701 housings?
A2: The 21000 is aluminum for lightweight durability, while the 24701 is stainless steel for enhanced corrosion resistance.
Q3: Are these housings compatible with 3300 XL probes?
A3: Yes, they fully support 3300 XL 8mm proximity probes for accurate vibration monitoring.
Q4: What optional accessories are available?
A4: Optional accessories include standoff adapters, conduit fittings, variable-length probe sleeves, and thread seals.
