Overview
Specification
| Parameter | Specification |
|---|---|

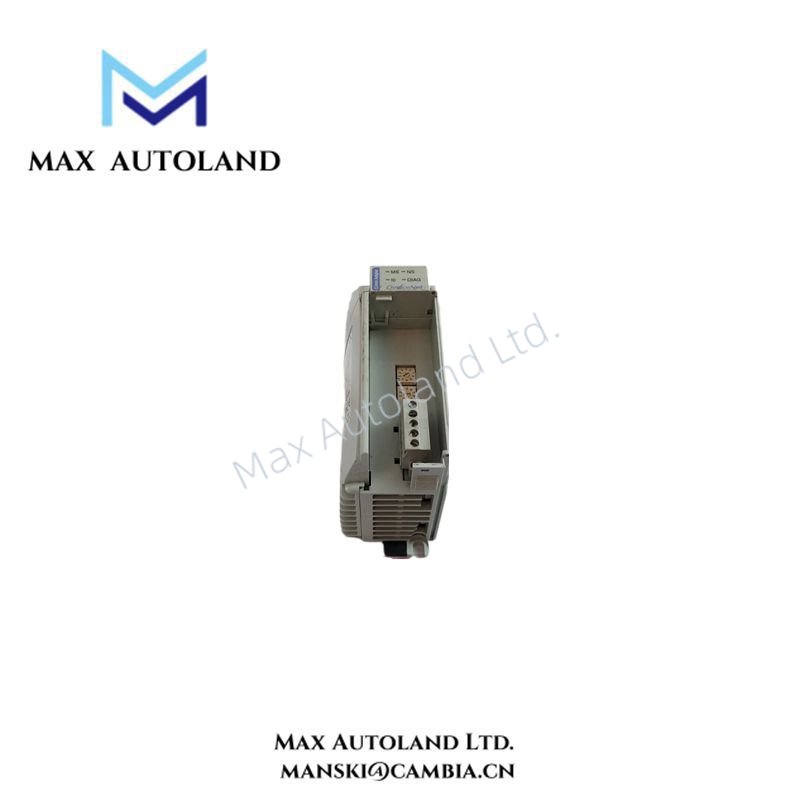

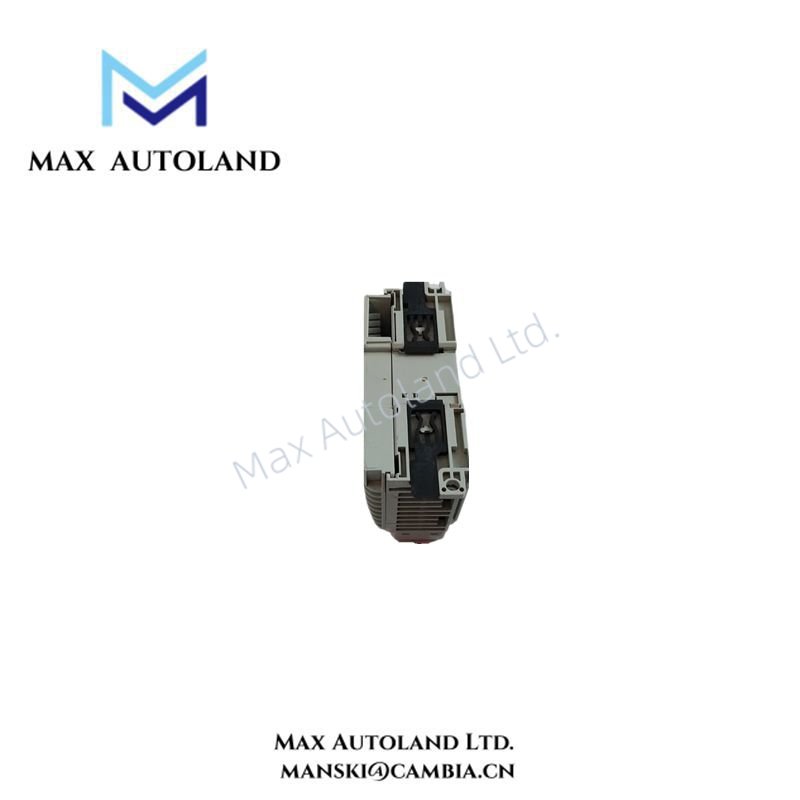

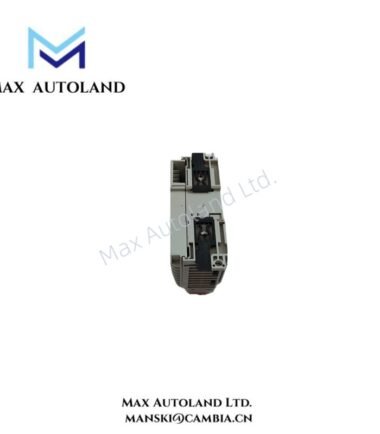

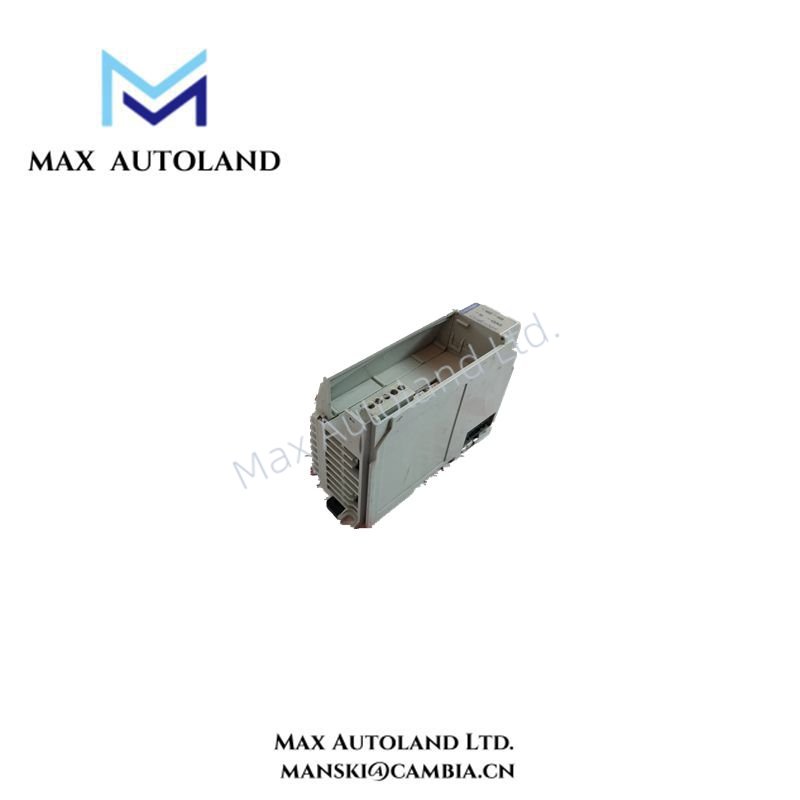

| Module Type | Compact I/O DeviceNet Adapter Module |
| Model | 1769-ADN |
| Manufacturer | Rockwell Automation |
| Network Protocol | DeviceNet |
| Data Transfer Rate | 125, 250, or 500 kbps |
| Maximum Nodes | Up to 64 DeviceNet devices |
| Mounting | 1769 CompactLogix chassis |
| Power Supply | 5 V DC via backplane |
| Dimensions | 90 mm × 35 mm × 100 mm |
| Weight | 0.25 kg |
| Response Time | ≤ 5 ms typical |
| Diagnostic Features | Network LEDs, error reporting, status monitoring |
| Operating Temperature | 0°C to +55°C |
| Certifications | UL, CE compliant |
| Energy Storage | Not required; powered via backplane |
FAQ
Yes, 1769-ADN is 100% original Rockwell Automation, factory-sealed.
How fast is the shipping?
Inventory is in stock and ships within 3 days to 2 weeks depending on order size.
Which logistics companies are used?
We typically use DHL, FedEx, and UPS for secure and timely delivery.
What if there is a quality issue?
We support returns within 30 days for any quality-related issues.
How many DeviceNet nodes can the 1769-ADN support?
The 1769-ADN supports up to 64 DeviceNet devices on a single network.
Does this module provide real-time diagnostics?
Yes, it provides status LEDs and error reporting for quick network troubleshooting.
