Overview
Specification
| Parameter | Specification / Description |
|---|---|

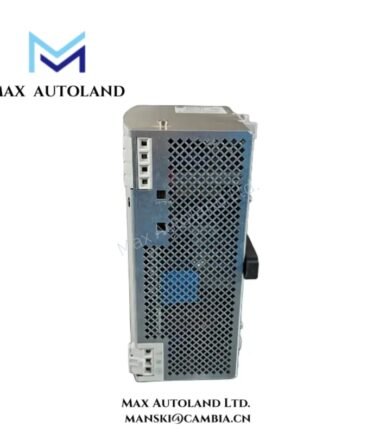

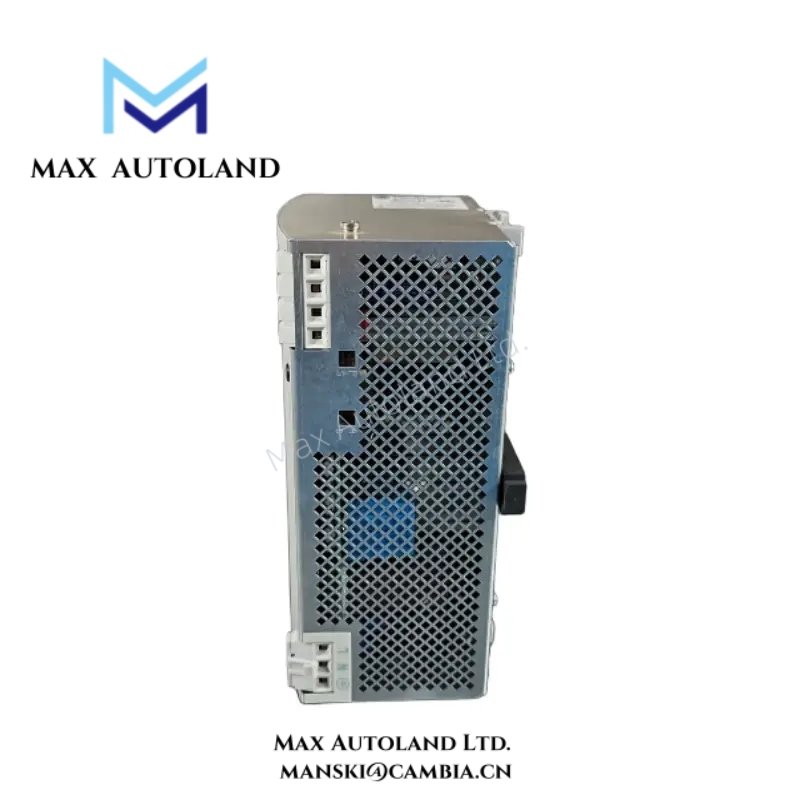

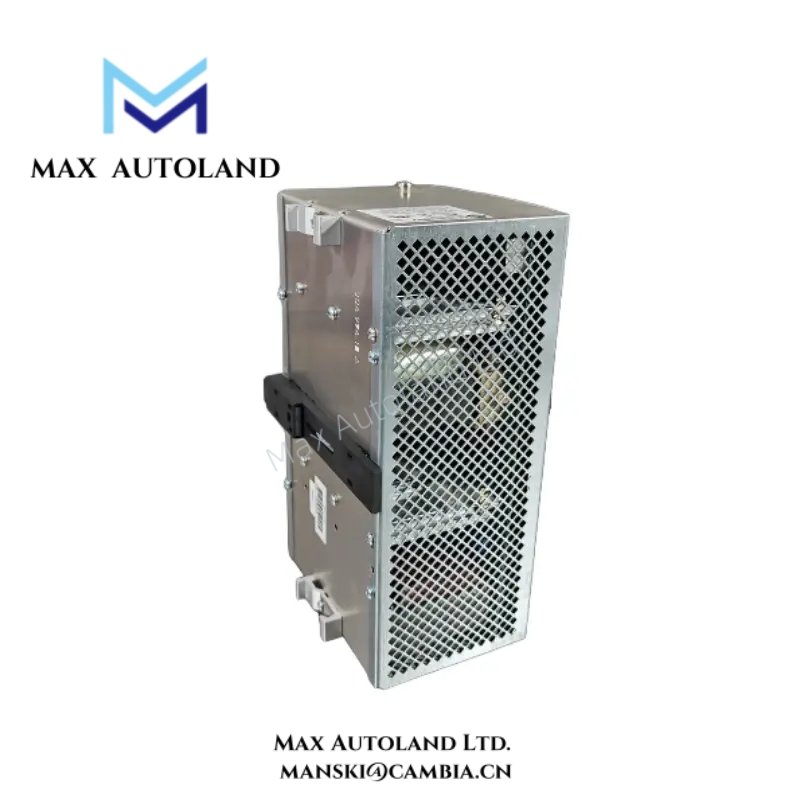

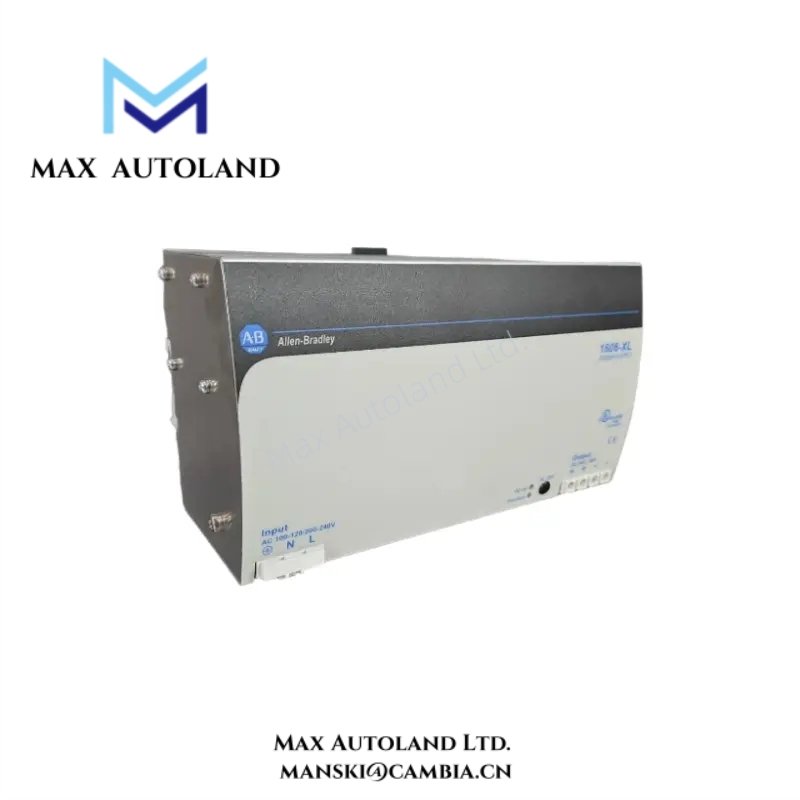

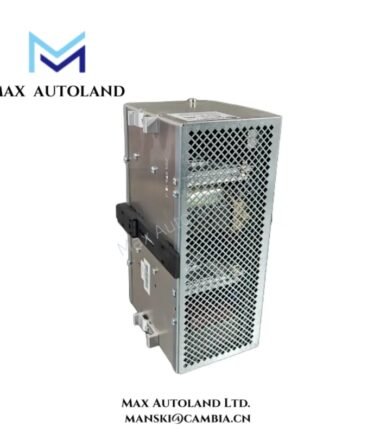

| Model Number | 1606-XL480EP |
| Module Type | Power Supply Module |
| Output Voltage | 24–28 V DC, adjustable via front panel potentiometer |
| Output Power | 480 W continuous, 600 W short-term |
| Output Current | 20 A continuous, 25 A short-term |
| Output Ripple | <20 mVpp typical |
| Efficiency | 90% typical |
| Input Voltage | AC 100–120V / 200–240V, 47–63Hz, auto-select |
| Input Current | <10 A (115V), <5 A (230V) |
| Inrush Current | <37 A at AC 264V, cold start |
| Overload Protection | Hiccup mode or continuous current, selectable |
| Short-Circuit Protection | Electronic limiting |
| Ambient Temperature | 0°C to 70°C operation, –25°C to 85°C storage |
| Hold-Up Time | 30 ms at 24V/20A, AC 230V |
| Mounting | DIN rail or panel mount |
| Dimensions | 220 × 124 × 102 mm |
| Weight | 2.5 kg |
| Certifications | CE, UL, CSA, EN 61000-3-2 compliance |
FAQ
A1: The module provides an adjustable DC output between 24–28V for flexible system requirements.
Q2: Can multiple modules be operated in parallel?
A2: Yes, up to ten modules can be connected in parallel to increase redundancy and load capacity.
Q3: How does the module handle overload conditions?
A3: It uses selectable hiccup mode or continuous current limiting to protect against overloads.
Q4: What is the operating temperature range?
A4: The module operates safely from 0°C to 70°C with proper derating above 60°C.
Q5: Does the 1606-XL480EP include diagnostic indicators?
A5: Yes, front panel LEDs show output status, overload conditions, and operational health.
Q6: What mounting options are supported for this module?
A6: The module supports both DIN rail and panel mounting for flexible installation in control systems.
