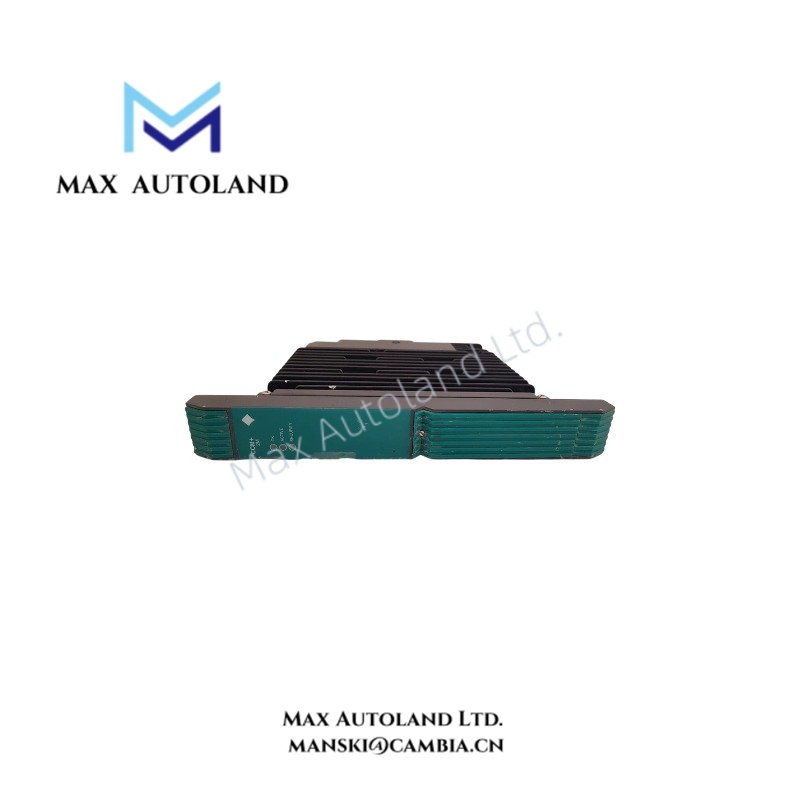

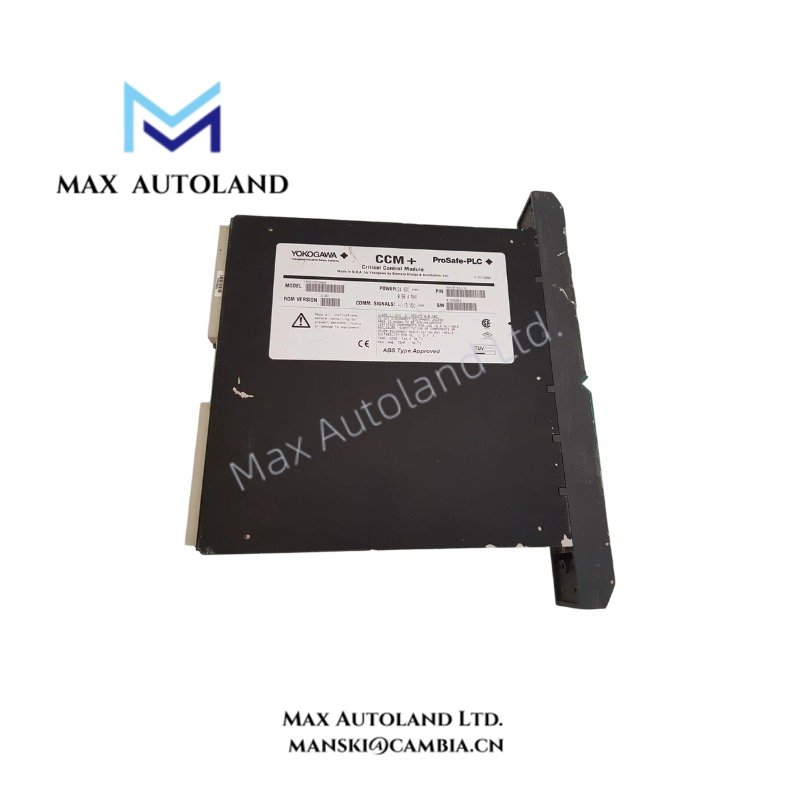

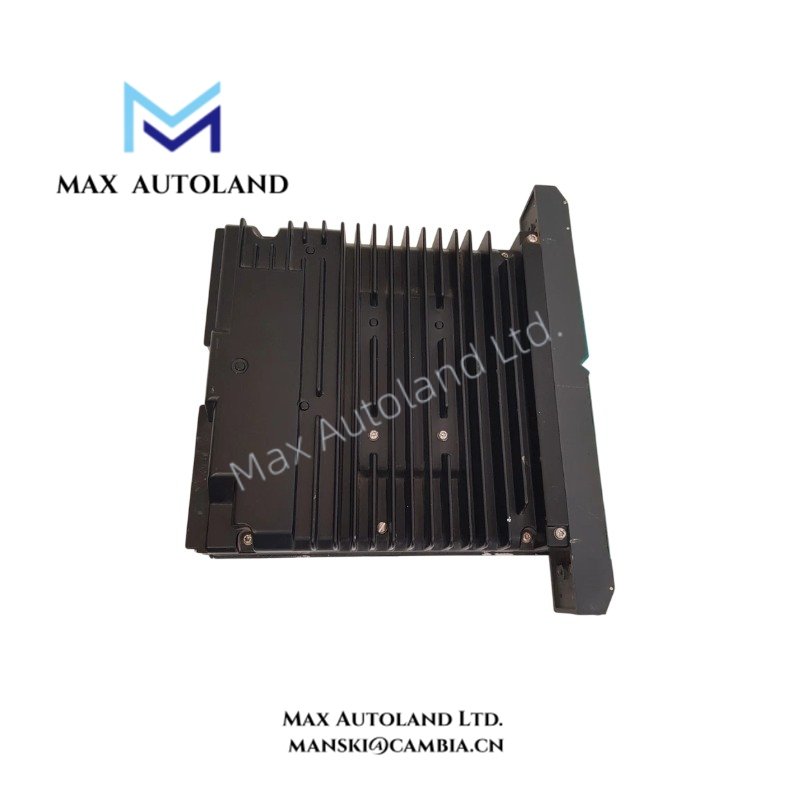

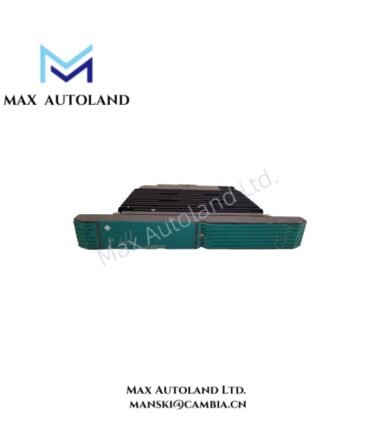

Yokogawa PSCCM22AAN Critical Control Module

Hardware Specifications

Dedicated Control Communication and Electrical Characteristics

The PSCCM22AAN functions as a processor-level control component. Its electrical interface operates from a 24 VDC supply, while its dedicated communication circuitry supports specified +/-15 VDC signal lines.

For installation and maintenance, technicians should verify the module’s power connections and communication wiring against the applicable Yokogawa system documentation. Furthermore, technicians should separate communication conductors from high-voltage switching circuits to reduce electrical interference.

The available specifications do not identify a specific communication protocol, channel count, isolation rating, or supported network topology. Therefore, these parameters require confirmation from the manufacturer’s documentation.

Frequently Asked Questions

Q: What is the operating voltage and maximum current consumption of the PSCCM22AAN?

A: The module operates at 24 VDC and draws a maximum current of 0.60 A. This corresponds to a calculated maximum input power of 14.4 W.

Q: Does the PSCCM22AAN support dedicated communication signals?

A: Yes. The supplied specifications identify dedicated communication signals, including +/-15 VDC communication lines. However, they do not specify the communication protocol or transmission rate.

Q: What operating temperature range does the module support?

A: The specified operating temperature range is 0 deg C to +60 deg C. Maintain the installation environment within this range.

Field Installation Guidelines

1. Power Verification: Confirm that the supply provides 24 VDC before connecting the module. Check polarity and terminal assignments against the manufacturer’s wiring documentation.

2. Current Budget: Allow for a maximum module current consumption of 0.60 A when calculating the power supply load.

3. Communication Wiring: Identify the dedicated communication terminals before connecting signal conductors. Follow the manufacturer’s wiring diagrams for the specified +/-15 VDC communication lines.

4. Grounding and Shielding: Apply the system’s designated grounding and cable-shield termination practices. Avoid unintended ground loops between communication shields and cabinet structures.

5. Environmental Conditions: Maintain ambient operating temperature between 0 deg C and +60 deg C. Provide sufficient cabinet ventilation and avoid obstructing heat dissipation paths.

6. Mechanical Installation: Verify mounting dimensions and connector alignment before securing the module. Do not force connectors or apply mechanical loads to circuit boards.

7. Commissioning: Inspect power and communication connections before energizing the system. Confirm module status through the applicable system diagnostics and manufacturer procedures.
