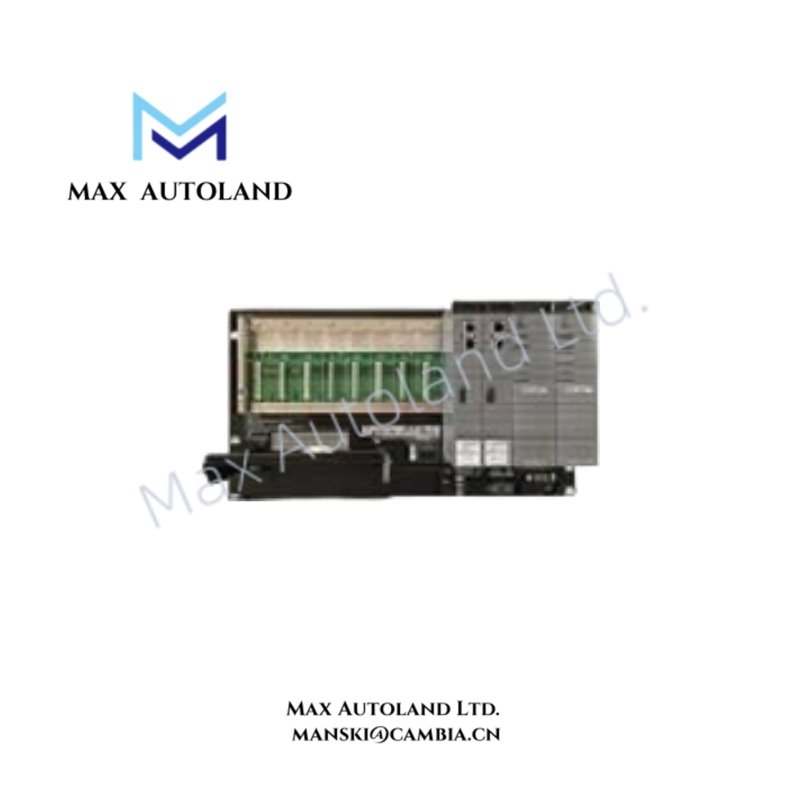

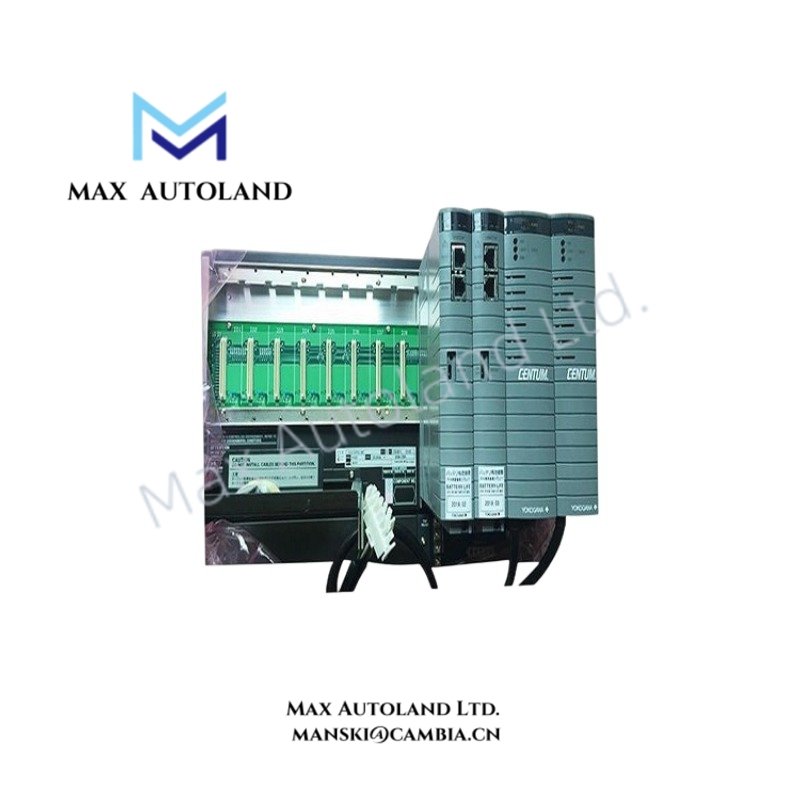

Yokogawa AFV30D-A41251 Duplexed Field Control Unit

Hardware Specifications

DCS Process Control Interface and Signal Connectivity

The Yokogawa AFV30D-A41251 integrates CENTUM VP field control functions with Vnet/IP communication and FIO processing. The unit supports distributed I/O handling through ESB Bus expansion and maintains communication paths through dual-redundant network interfaces.

Furthermore, the FCU architecture supports Yokogawa process control features including FOUNDATION Fieldbus and Profibus PA connectivity when compatible I/O modules are installed. The system design also supports channel-to-channel isolation through dedicated I/O hardware configurations, which separates field signal paths and reduces interference between measurement channels.

The duplex configuration continuously monitors processor status, communication paths, and power module conditions. Therefore, the control unit can maintain operation by switching processing paths when a redundant module detects a hardware fault.

Frequently Asked Questions

Q: Does the AFV30D-A41251 support redundant processor operation?
A: Yes. The AFV30D-A41251 uses dual-redundant CP471 processor modules to maintain control execution through a standby processing path.

Q: How does the unit communicate with external control components?
A: The FCU communicates through dual-redundant Vnet/IP interfaces and supports ESB Bus connections for additional Node Unit expansion.

Q: What power configuration does the AFV30D-A41251 use?
A: The unit uses dual-redundant power supply modules with a 220 to 240 V AC input range.

Field Installation Guidelines

1. Install the AFV30D-A41251 in a standard 19-inch rack enclosure and secure the unit using the specified rack mounting hardware.
2. Connect Vnet/IP communication cables according to Yokogawa network installation requirements. Keep communication wiring separated from high-voltage power cables to reduce electromagnetic interference.
3. Ground the rack enclosure and cable shields according to industrial grounding practices. Verify that shield termination prevents unwanted noise currents from entering signal circuits.
4. Confirm the AC power input rating before energizing the unit. Check redundant power supply connections and verify module status indicators during commissioning.
5. Install ESB Bus and Optical ESB Bus connections with appropriate cable routing to prevent mechanical stress and excessive bending of communication cables.
