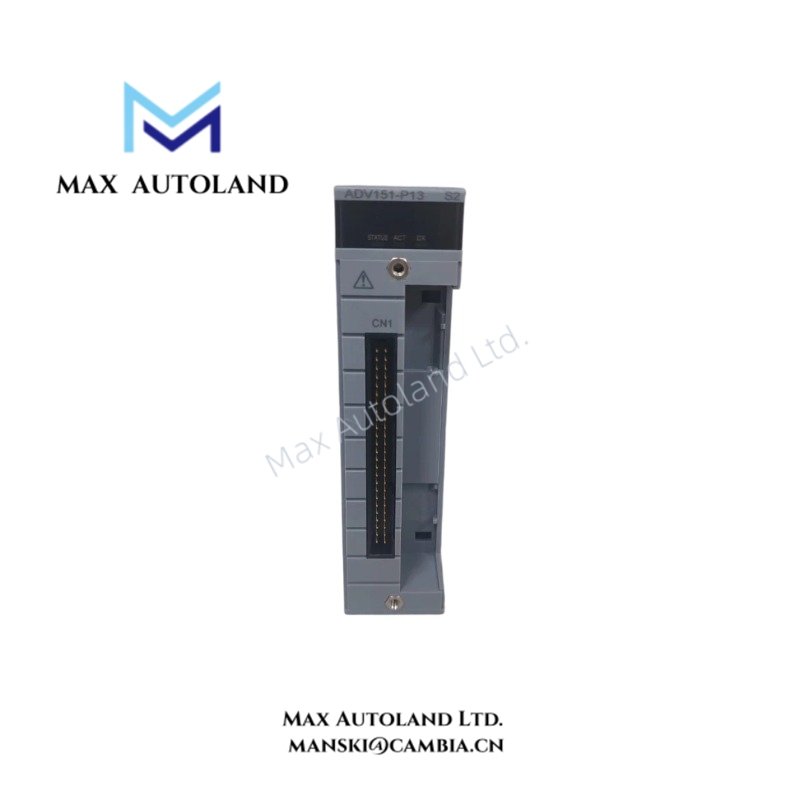

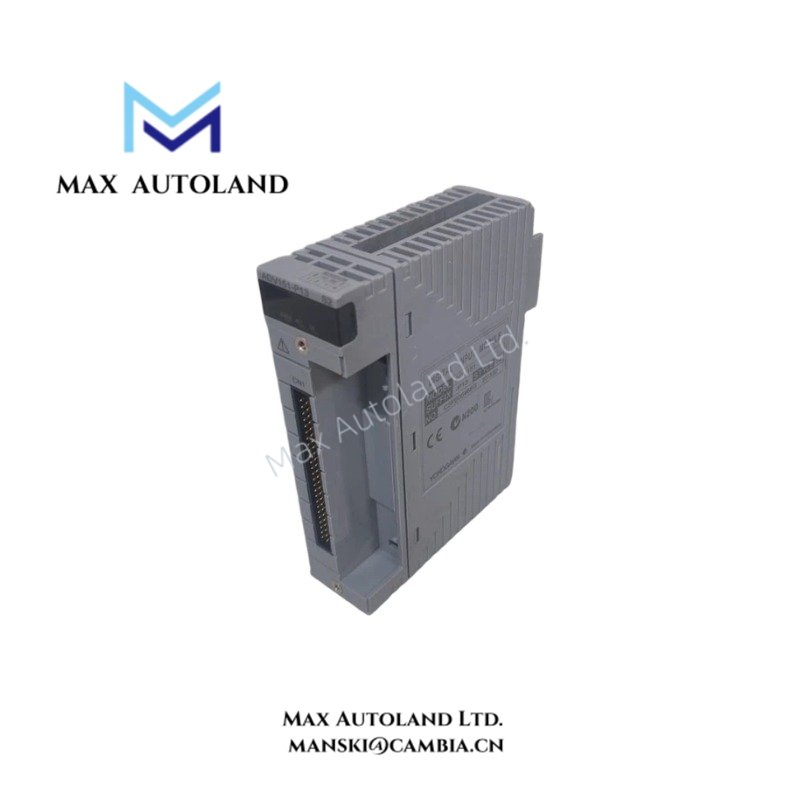

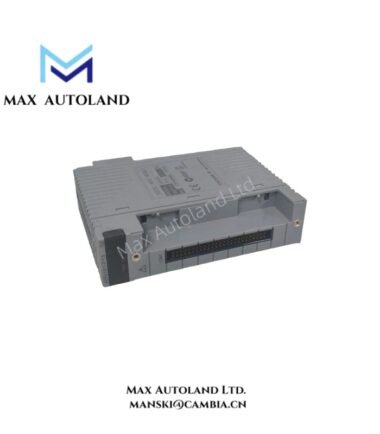

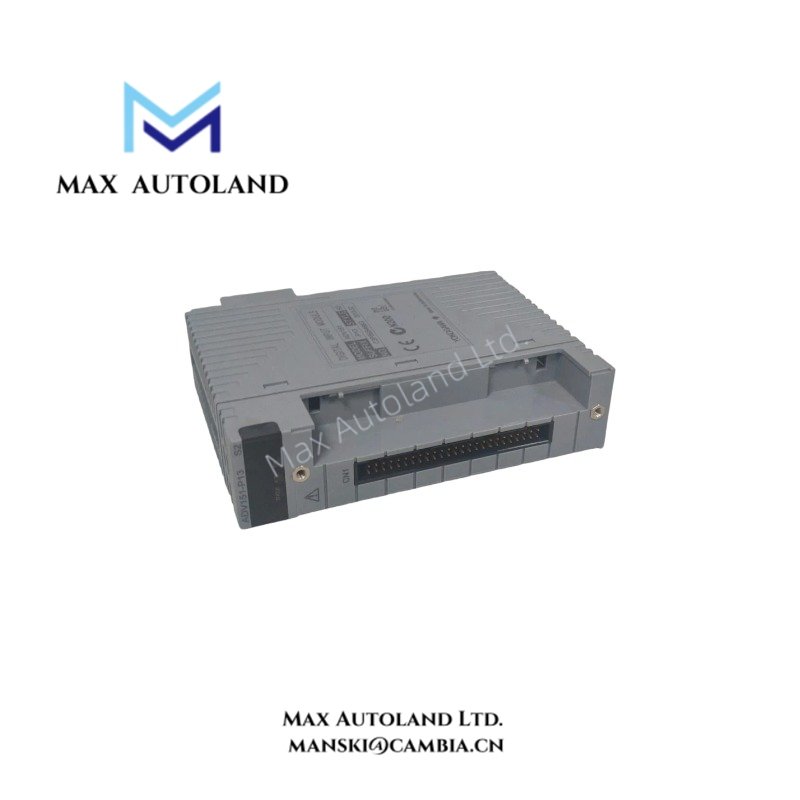

Overview
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-P13 |
| Brand | Yokogawa |
| Product Type | Digital Input Module |
| Number of Input Channels | 32 |
| Rated Input Voltage | 24 VDC |
| Input Type | Sink/Source |
| Input ON Voltage | 18 to 26.4 VDC |
| Input OFF Voltage | 5.0 VDC or less |
| Input Current | 4.1 mA +/- 20% per channel at rated input voltage |
| Status Input Function | Detects ON/OFF status |
| Pushbutton Input Function | Detects pushbutton edges |
| Input Response Time | 8 ms or less for status input |
| Minimum ON Detection Time | 20 ms for pushbutton input |
| Maximum ON/OFF Cycle | 25 Hz for pushbutton input |
| Maximum Current Consumption | 500 mA at 5 VDC; 350 mA |
| Weight | 0.3 kg |
| External Connection | Pressure clamp terminal, dedicated AKB331 cable, or MIL connector cable |

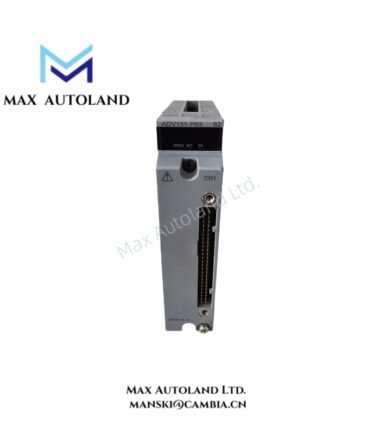

| Replacement Model | ADV151-P63 |
| Product Status | Discontinued |
Input Functions and Signal Handling
The module supports two input functions. Status input detects whether a digital signal is ON or OFF, while pushbutton input detects changes associated with pushbutton operation. These functions serve different monitoring requirements, so the configured input mode should match the intended signal behavior.
For status input, the response time is 8 ms or less. For pushbutton input, the minimum ON detection time is 20 ms, with a maximum ON/OFF cycle of 25 Hz. These timing limits should be considered when selecting the module for signals with short pulses or frequent state changes.
Ordering and Configuration
The ADV151 model family includes options for pushbutton input, sequence of events (SOE) capture, status indication, explosion protection, and terminal connection arrangements. However, the supplied ordering table does not clearly establish every suffix position in the complete model ADV151-P13. Verify the full nameplate code before selecting a replacement or ordering an option-specific version.
| Ordering Code | Description |
|---|---|
| -P | With pushbutton input |
| -E | With SOE capture |
| 5 | Without status display; no explosion protection |
| 6 | With status display; no explosion protection |
| E | Without status display; with explosion protection |
| F | With status display; with explosion protection |
| 0 | Basic type |
| 3 | With ISA Standard G3 option and temperature option of -20 to 70 deg C |
| /D5A00 | KSCable Interface Adapter for 32-channel digital input, model ATD5A-00 |
| /B5S00 | Pressure Clamp Terminal Block for Digital Input, model ATB5S-00 |
| /B5S10 | Pressure Clamp Terminal Block for Digital Input with surge absorber, model ATB5S-10 |
| /B5D00 | Dual Pressure Clamp Terminal Block for Digital Input, model ATB5D-00 |
| /B5D10 | Dual Pressure Clamp Terminal Block for Digital Input with surge absorber, model ATB5D-10 |
| /CCC01 | Connector cover for MIL cable, model ACCC01 |
Frequently Asked Questions
Q: What is the replacement model for the ADV151-P13?
A: The supplied information identifies the ADV151-P63 as the replacement model. Confirm the complete configuration and connection requirements before substituting it for an existing module.
Q: What is the difference between status input and pushbutton input?
A: Status input detects the ON/OFF state of a signal, while pushbutton input detects pushbutton edges. Their timing specifications differ, so select the appropriate function for the input signal and application.
Q: Which connection options are available?
A: The listed connection arrangements include a pressure clamp terminal, a dedicated AKB331 cable, and a MIL connector cable. Optional interface adapters and terminal blocks are also listed; confirm the required suffix and accessory model before ordering.
