Overview
In addition, the UR-6HH features a modular and hot-swappable design, which simplifies field replacement and system expansion. Technicians can easily install or upgrade the module without interrupting operations, thereby minimizing downtime and improving overall maintenance efficiency. Therefore, it plays a critical role in maintaining precise control, operational reliability, and long-term performance in modern substations, power distribution systems, and industrial automation networks.
Specification
| Parameter | Description |
|---|---|

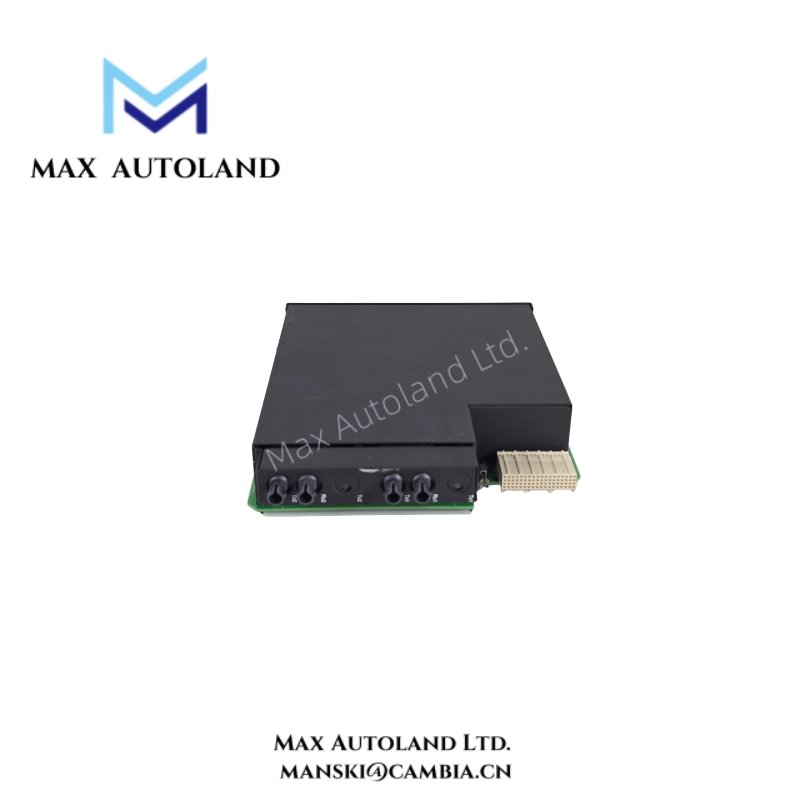

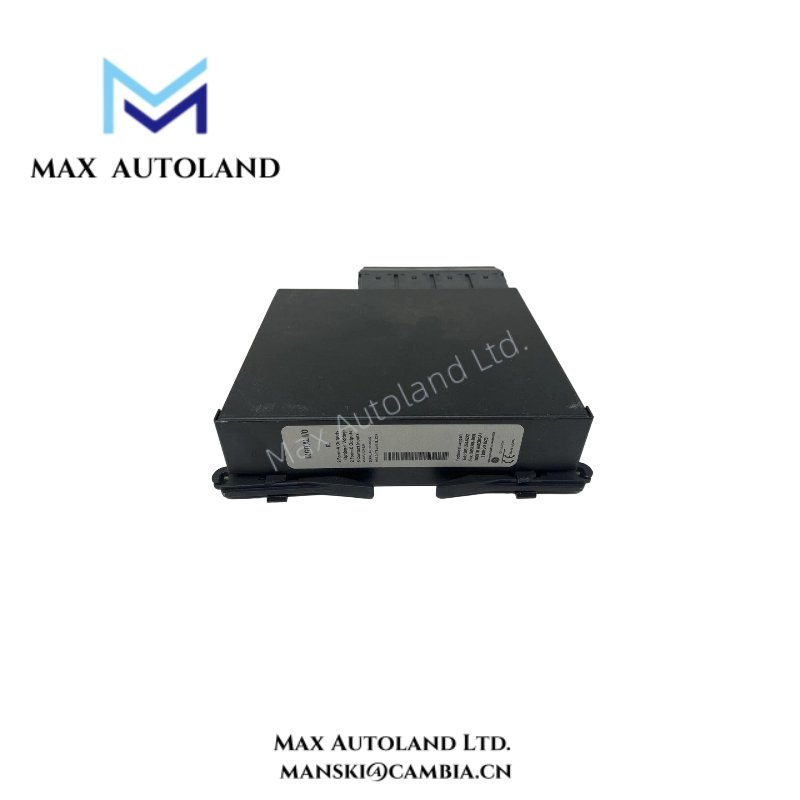

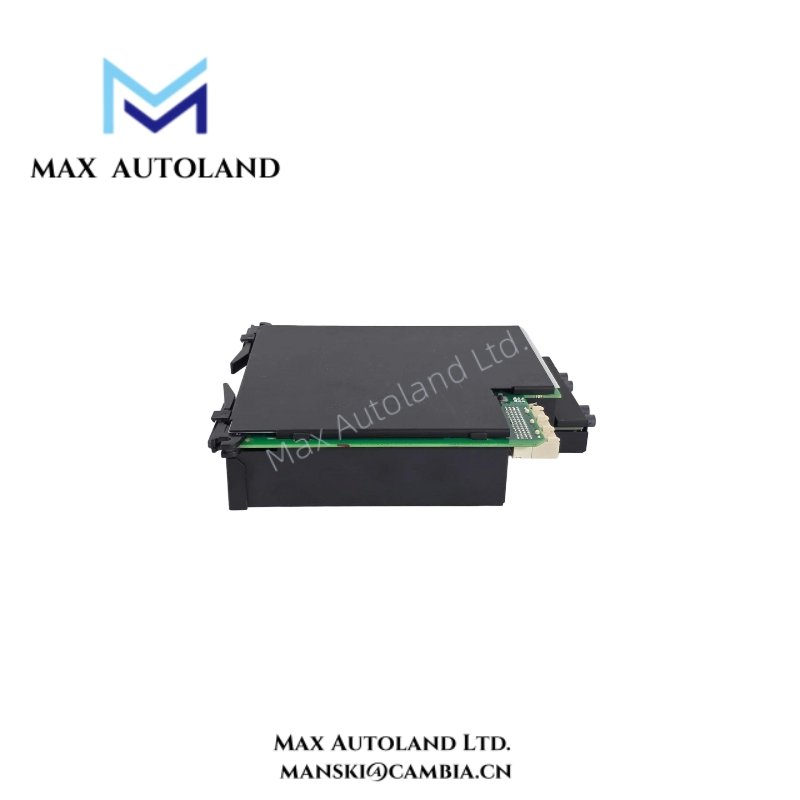

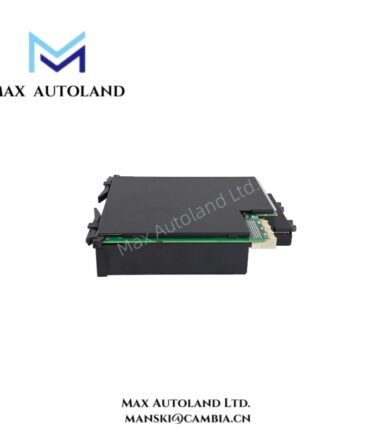

| Model | GE Fanuc Multilin UR-6HH |
| Module Type | Digital Input/Output (I/O) Module |
| Manufacturer | GE (General Electric) / Multilin |
| Input Channels | 16 optically isolated inputs |
| Output Channels | 8 Form-A or Form-C outputs |
| Input Voltage Range | 24–250 V DC nominal |
| Output Contact Rating | 250 V AC / 30 V DC at 5 A resistive |
| Response Time | <5 milliseconds |
| Isolation Voltage | 2000 Vrms between channels and logic |
| Communication Interface | UR Series backplane connection |
| Logic Functionality | Programmable via UR platform |
| Operating Temperature | –40°C to +70°C (–40°F to +158°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Humidity | 5–95% non-condensing |
| Mounting Type | Plug-in, hot-swappable |
| Diagnostics | Built-in self-test and event logging |
| Certifications | CE, UL, CSA, IEC compliant |
| Dimensions | Approx. 150 × 60 × 20 mm |
| Weight | Approx. 0.25 kg (0.55 lb) |
FAQ
It provides digital input and output interfaces for monitoring and controlling relay operations.
Q2: Can the UR-6HH be installed without powering down the relay system?
Yes. The UR-6HH supports hot-swappable installation, allowing safe module replacement during operation.
Q3: Is the module compatible with all UR Series relays?
Absolutely. It is designed for full compatibility with all GE Multilin UR relay platforms.
Q4: Does the UR-6HH support programmable logic?
Yes, it can execute programmable logic sequences through the UR relay’s internal processor.
