Overview

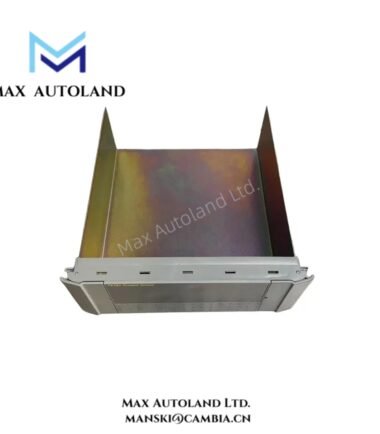

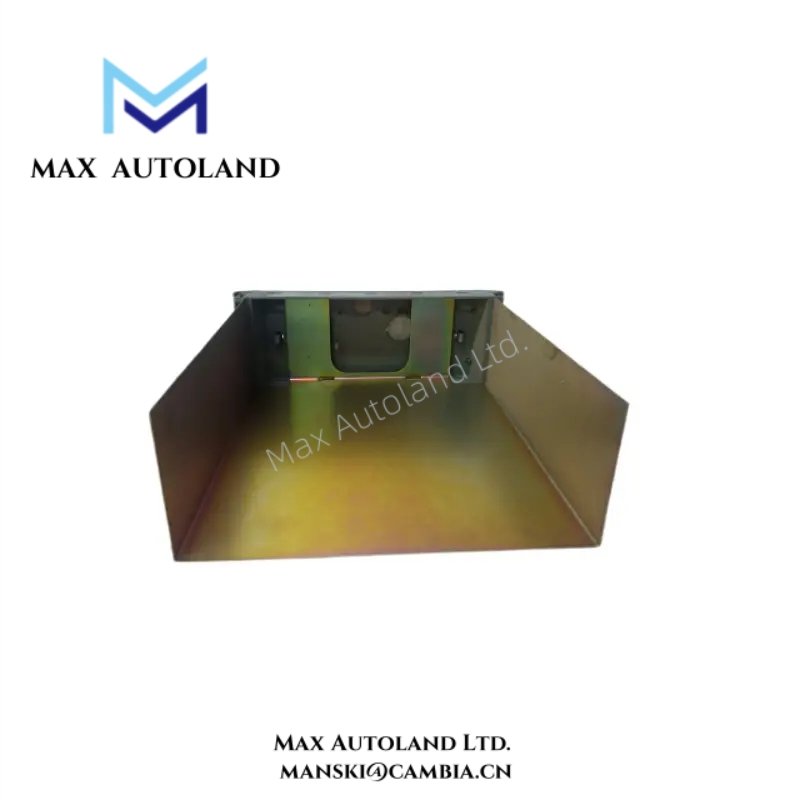

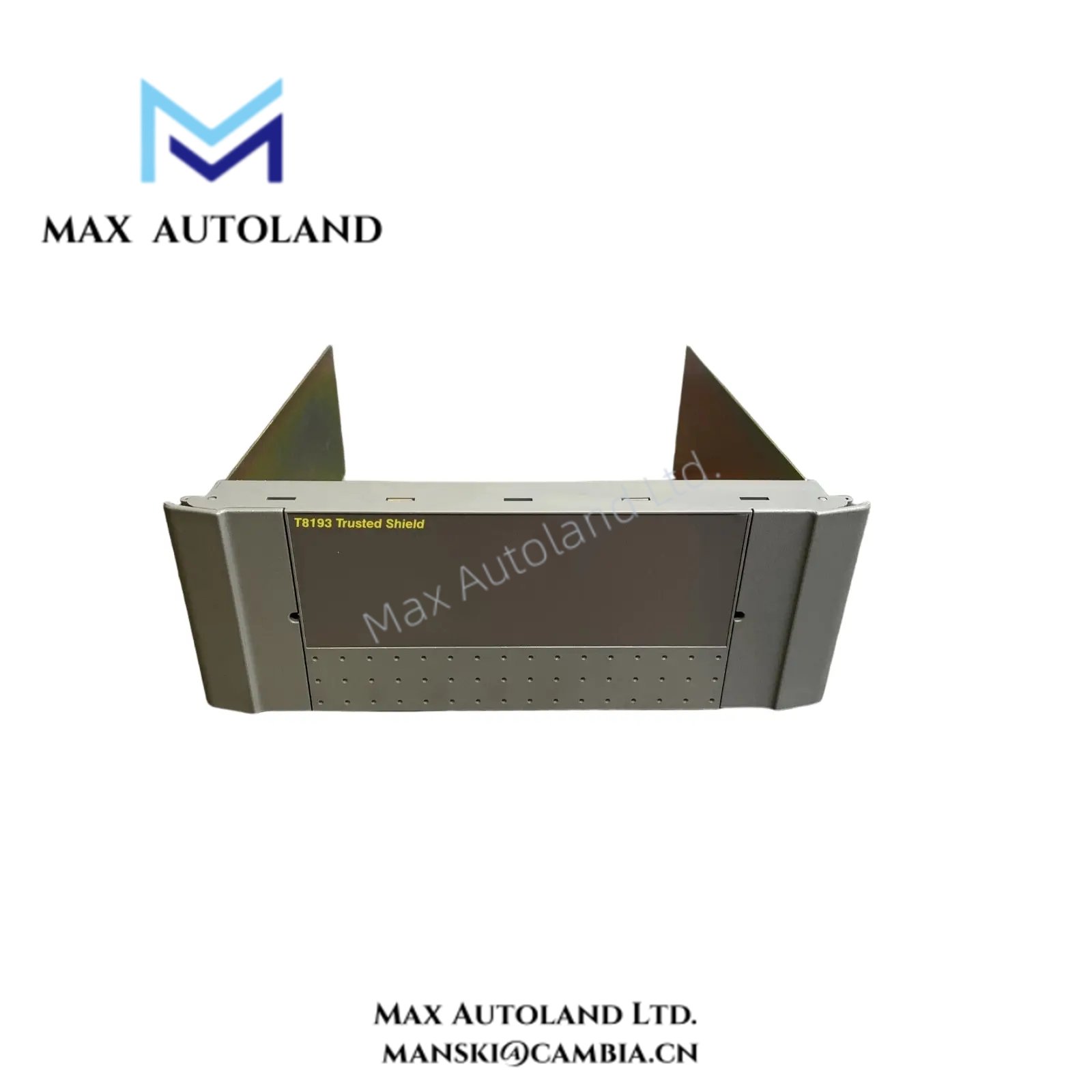

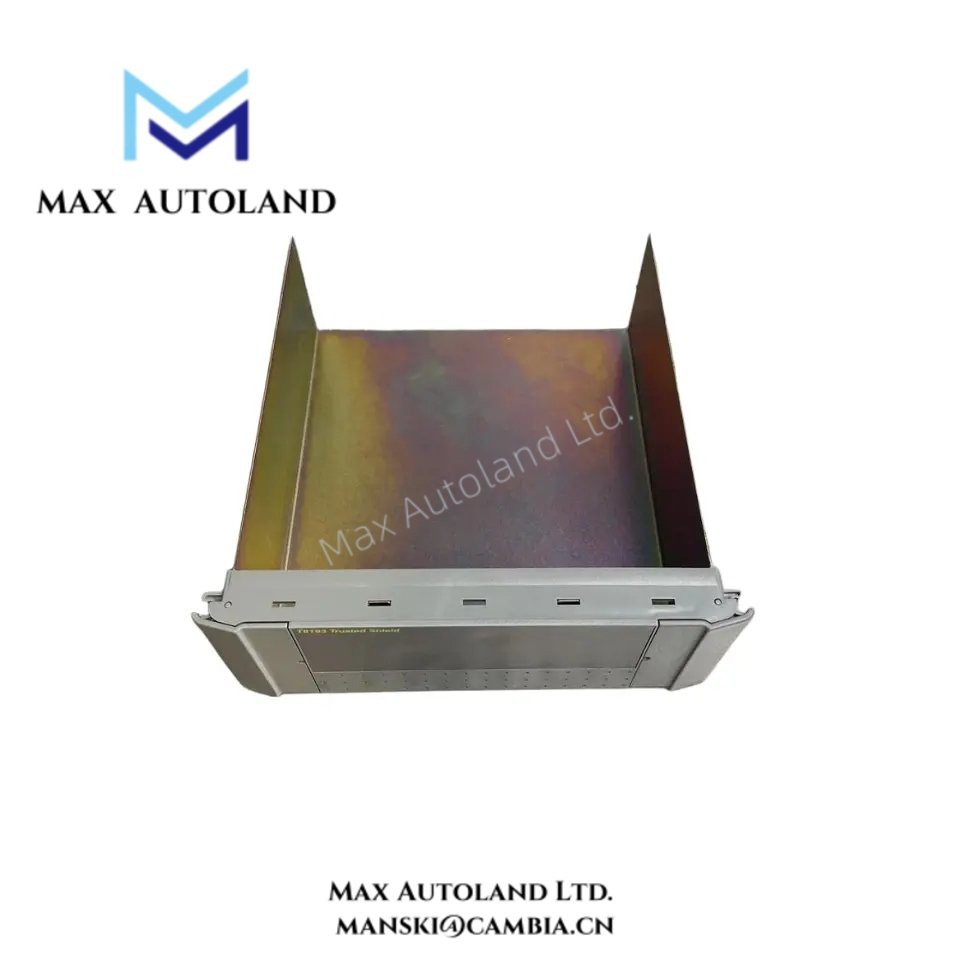

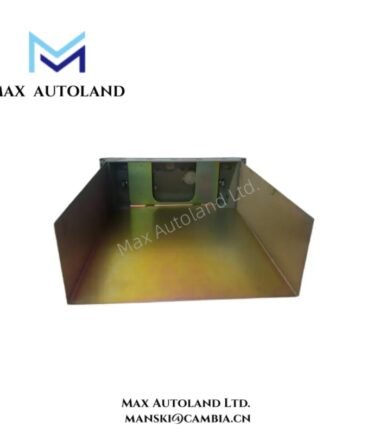

It occupies three slot widths and physically shields control hardware from electrical interference and environmental disturbances.
Moreover, this shield enhances system reliability by reducing noise coupling within safety-critical control cabinets.
Engineers specify the T8193 to maintain signal integrity in high-availability Trusted controller architectures.The design aligns precisely with Trusted system mechanics, therefore installation remains simple and repeatable.
In addition, the rigid construction supports long-term operation in harsh industrial control environments.
Specification
| Parameter | Description |
|---|---|
| Product Type | Trusted System Shield |
| Manufacturer | Rockwell Automation |
| Product Family | ICS Triplex Trusted |
| Model Number | T8193 |
| Shield Width | Three slot width |
| Primary Function | Electromagnetic and environmental shielding |
| Mechanical Compatibility | Trusted system chassis and modules |
| Installation Location | Control cabinet or Trusted rack |
| Construction Material | Industrial-grade metallic shielding |
| System Integration | Passive accessory, no electrical connections |
| Operating Environment | Industrial control and safety systems |
| Maintenance Requirement | No active maintenance required |
| Compliance | Trusted system mechanical specifications |
FAQ
A1: It provides electromagnetic shielding for Trusted system modules to protect signal integrity.
Q2: How many slots does the T8193 shield occupy?
A2: The T8193 occupies three slot widths within a Trusted system chassis.
Q3: Does the T8193 require electrical connections?
A3: No, it is a passive mechanical shield without electrical interfaces.
Q4: Is the T8193 compatible with all Trusted system modules?
A4: It is mechanically compatible with Trusted chassis configurations requiring three slot width shielding.
Q5: What industries typically use the T8193 shield?
A5: It is widely used in oil and gas, power generation, and process safety systems.
