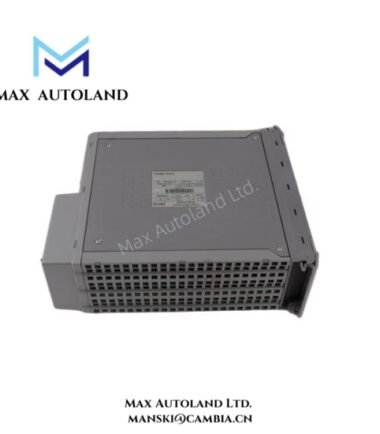

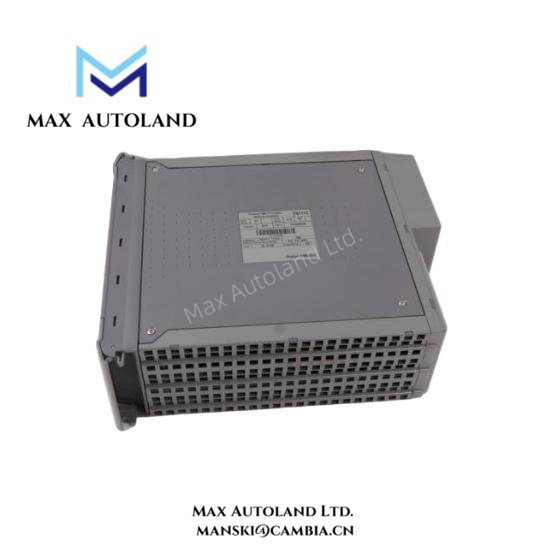

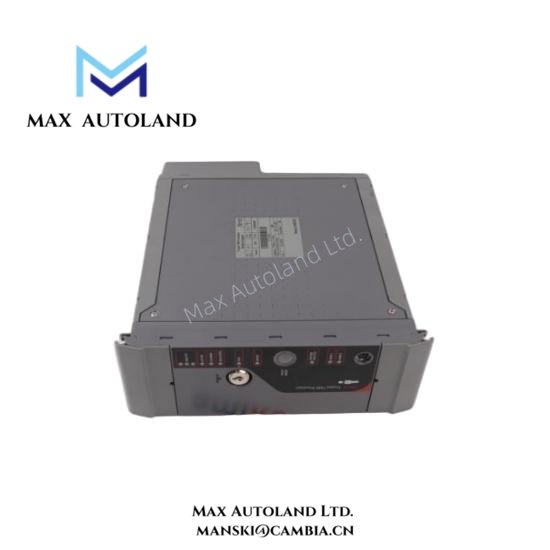

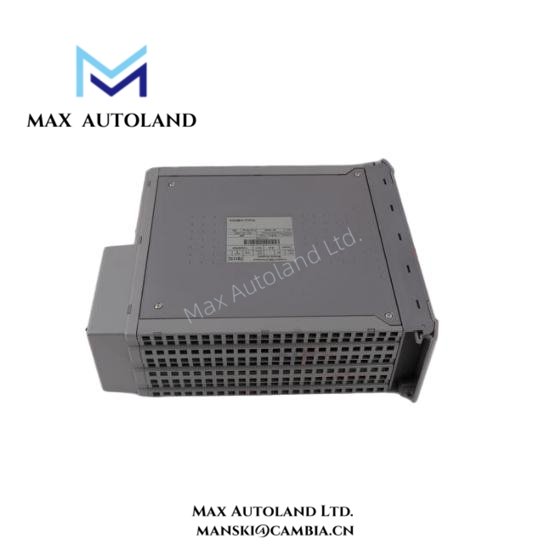

T8111 ICS Triplex Trusted TMR Processor Rockwell Automation

Hardware Specifications

TMR Safety Control Architecture

The ICS Triplex T8111 uses a Triple Modular Redundant (TMR) architecture with three synchronized processing channels operating in a lock-step configuration. The module integrates microprocessor units, NVRAM, FLASH, DRAM, EPROM, clock circuits, power supply management, bus interface, front panel interface, buffer memory, voter logic, and fault detection hardware.

The T8111C performs hardware-based fault detection and automatic fault handling without unnecessary alarm generation. In addition, the module records time-stamped fault history data for diagnostic analysis. The TMR voter mechanism compares processor outputs and maintains control execution when a single processing channel develops a fault.

The module supports dual redundant 24 VDC supply connection and inter-module bus communication within the Trusted system chassis. Furthermore, the hardware and software diagnostic routines provide rapid fault recognition and response.

SIL Safety Processing and Fault Isolation

The ICS Triplex T8111C applies TMR 2oo3 processing principles for safety control execution. Each processor channel operates independently and exchanges voting information through the internal architecture. Therefore, the system can continue operation after a single channel fault while maintaining deterministic output decisions.

The module supports fail-safe state execution through integrated voter and fault detector circuits. Moreover, the hardware fault isolation design separates processing failures from system-level control functions, reducing the impact of individual component faults.

Frequently Asked Questions

Q: Does the ICS Triplex T8111C support hot replacement?
A: Yes. The T8111C supports hot replacement procedures without requiring application program reload after module exchange.

Q: Which communication protocol does the T8111C provide?
A: The module supports Modbus RTU communication with selectable baud rates from 9600 baud to 115200 baud.

Q: How does the T8111C achieve fault tolerance?
A: The module uses a TMR 3-2-0 architecture with three synchronized processors, voter logic, and hardware fault detection circuits.

Field Installation Guidelines

• Install the T8111 only in the designated T8100 processor slot within the Trusted system chassis.
• Verify the backplane IMB supply range before energizing the module.
• Maintain correct chassis grounding and use appropriate shielding practices for communication wiring.
• Route serial communication cables separately from high-voltage power conductors to reduce electrical interference.
• Confirm module seating and backplane connector engagement before system startup.
• Check front panel diagnostic indicators after installation to verify processor status and communication operation.
• Follow the system engineering documentation for firmware compatibility and replacement procedures.
