Overview
Specification
| Parameter | Specification |
|---|---|

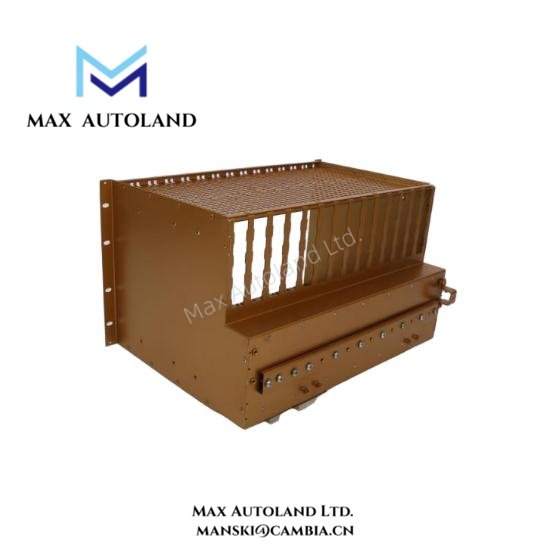

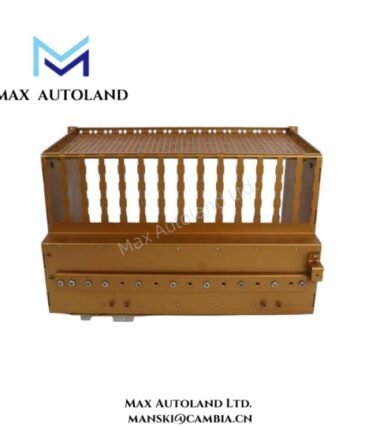

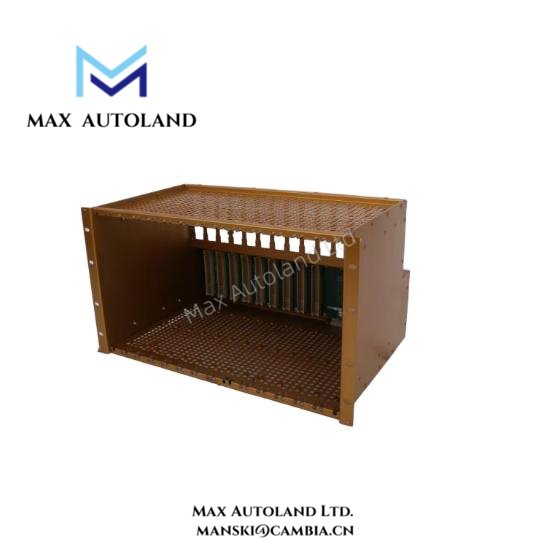

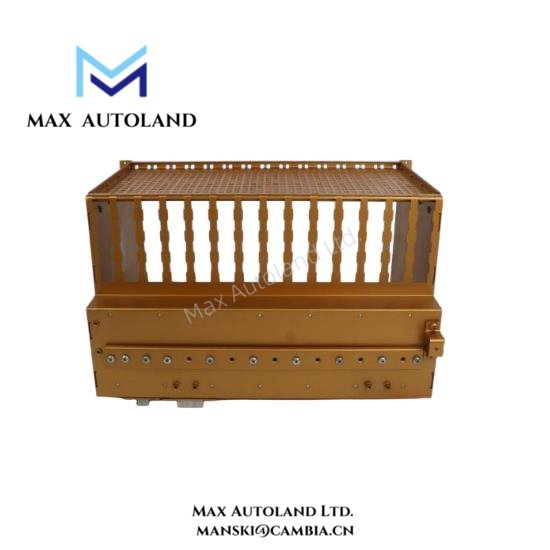

| Model | T8100 ICS Triplex Trusted Controller Chassis |
| Chassis Type | Half-Height Rack-Mountable |
| Module Capacity | Up to 6 standard ICS Triplex modules |
| Input Power | 24V DC standard, optional redundant power configuration |
| Power Consumption | Typical 50 W (dependent on module configuration) |
| Backplane | Redundant, high-integrity signal paths for fault tolerance |
| Cooling System | Integrated forced-air cooling with optimized airflow |
| Dimensions (W x H x D) | 483 mm x 177 mm x 300 mm |
| Weight | 12.5 kg (empty chassis) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Shock & Vibration | Meets IEC 60068-2 standards for industrial environments |
| Compliance / Certifications | IEC 61508, ISA 84, CE marking, UL recognized |
| Connectivity | Redundant backplane with high-integrity signal paths |
| Maintenance | Hot-swappable module slots; easy access for service |
| Applications | Power plants, chemical processing, manufacturing, critical industrial automation |
FAQ
A: The chassis supports standard ICS Triplex modules designed for high-reliability control.Q: Can the chassis operate in extreme temperatures?
A: Yes, it functions reliably between 0°C and 55°C, suitable for most industrial environments.Q: How does the chassis enhance system uptime?
A: Redundant backplane design and modular architecture allow maintenance without shutting down operations.
Q: Is the T8100 compatible with existing PLC and DCS systems?
A: Yes, it integrates seamlessly to support fault-tolerant industrial automation solutions.
Q: What safety standards does the chassis meet?
A: It complies with IEC 61508, ISA 84, and other industrial safety and reliability standards.
