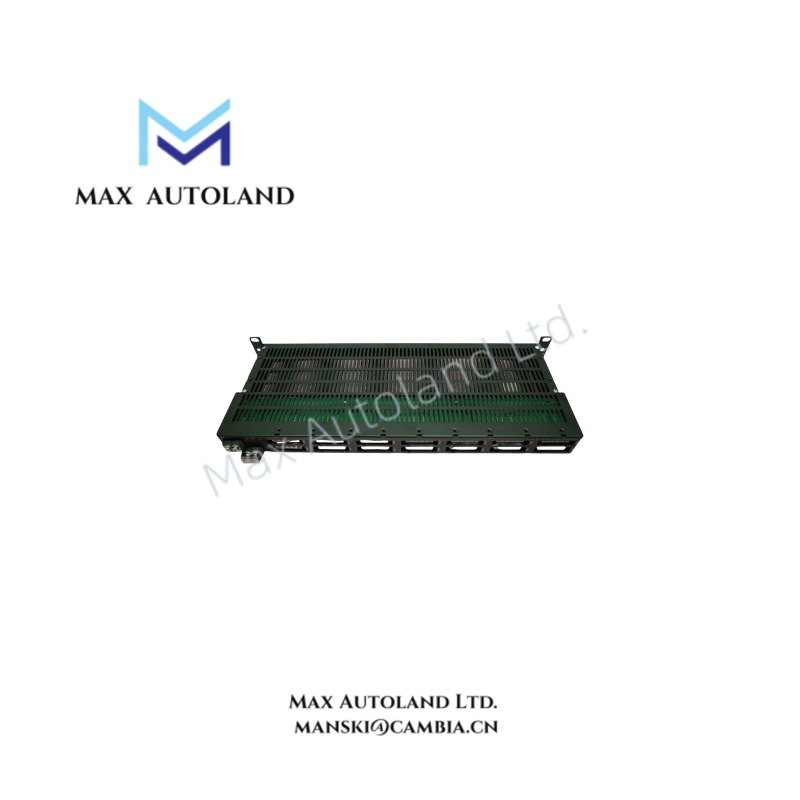

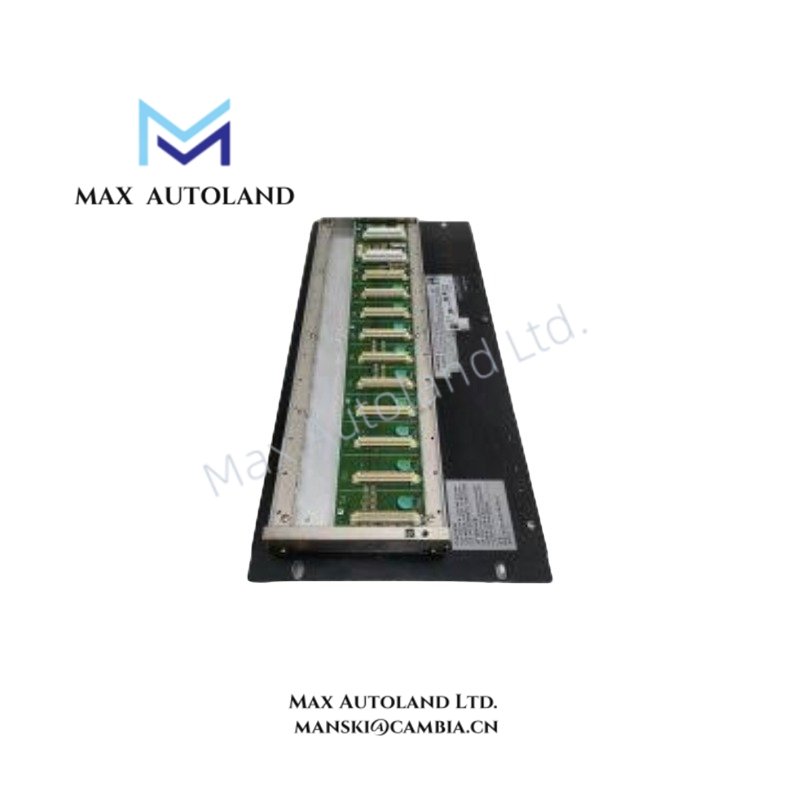

Primary Power Supply Bus Unit Yokogawa AEP7D-21

Hardware Specifications

Power Backplane Distribution Architecture (Yokogawa Process Control Integration)

The AEP7D-21 is aligned with Yokogawa process control cabinet power topology, supporting structured distribution of AC-derived power rails into modular control hardware stacks. Within Yokogawa DCS environments, the unit interfaces with channel-level power segmentation practices commonly associated with channel-to-channel isolation and controlled backplane energy routing. This design minimizes electrical coupling between downstream modules and maintains stable operating margins under variable cabinet load conditions.

Frequently Asked Questions

Q: Can the AEP7D-21 operate with a single AC input source?
A: The unit is designed for dual A/B input architecture. Operation with a single source is possible depending on system wiring, but redundant path functionality is not available under single-feed conditions.

Q: Does each output port have independent current limiting?
A: Output ports are grouped per input rail (7 ports per source). Current distribution is constrained by the per-port limit of 6 A and overall unit limit of 20 A.

Q: Is hot-swapping supported during live operation?
A: The unit is not specified as hot-swappable. Installation or replacement requires de-energized conditions in standard cabinet safety practice.

Field Installation Guidelines

The unit shall be installed on a standardized industrial cabinet backplane or mounting frame with secure mechanical fixation across all mounting points. Input wiring for A/B AC sources must be routed with separation to reduce cross-coupling between redundant feeds. Protective earth grounding must be established prior to energization.

All output conductors should be routed with controlled bend radius and segregated from signal cabling to prevent induced noise coupling into adjacent DCS modules. Torque tightening for terminal blocks must follow Yokogawa cabinet assembly standards where applicable.
