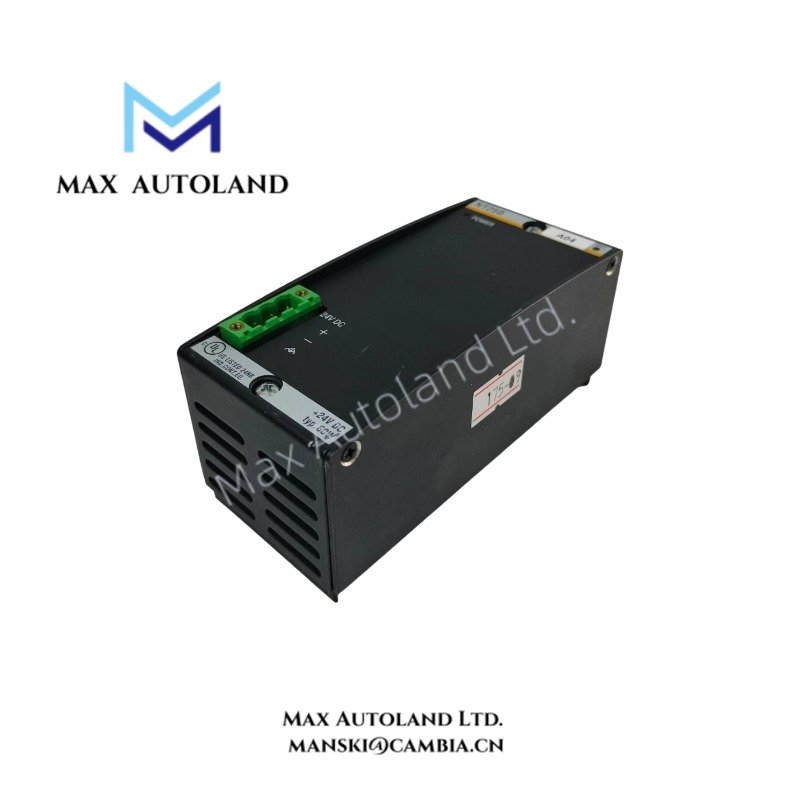

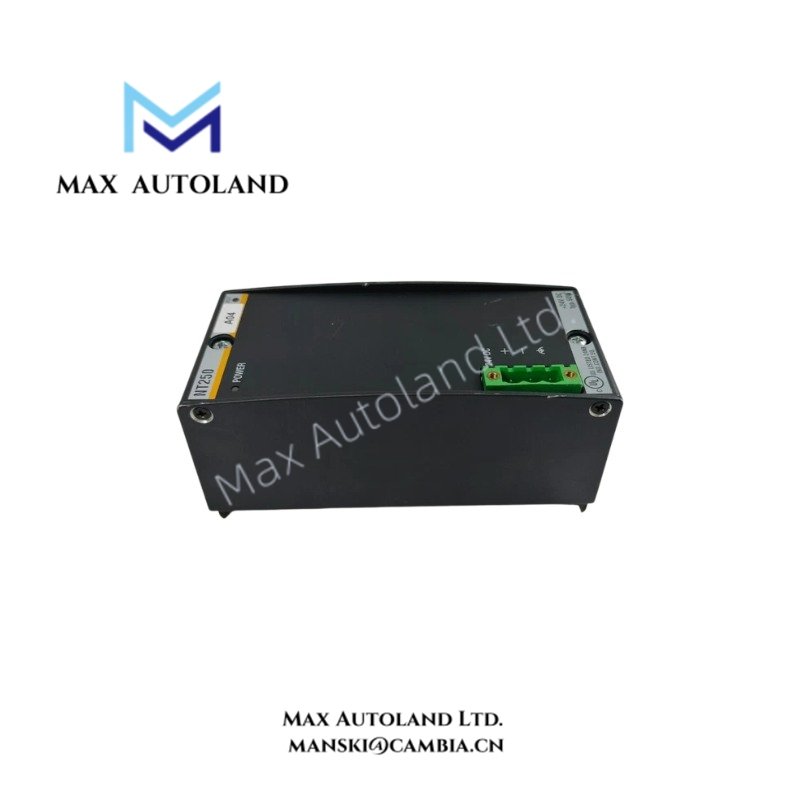

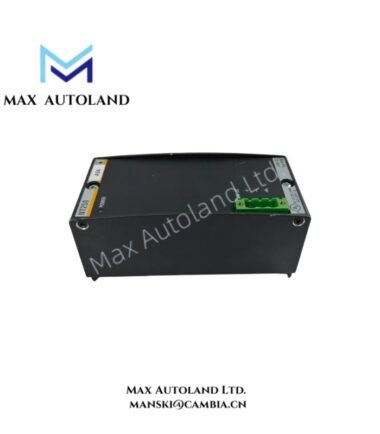

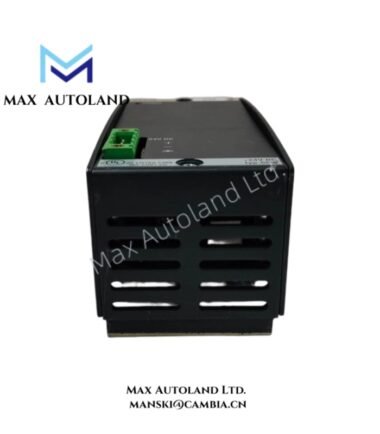

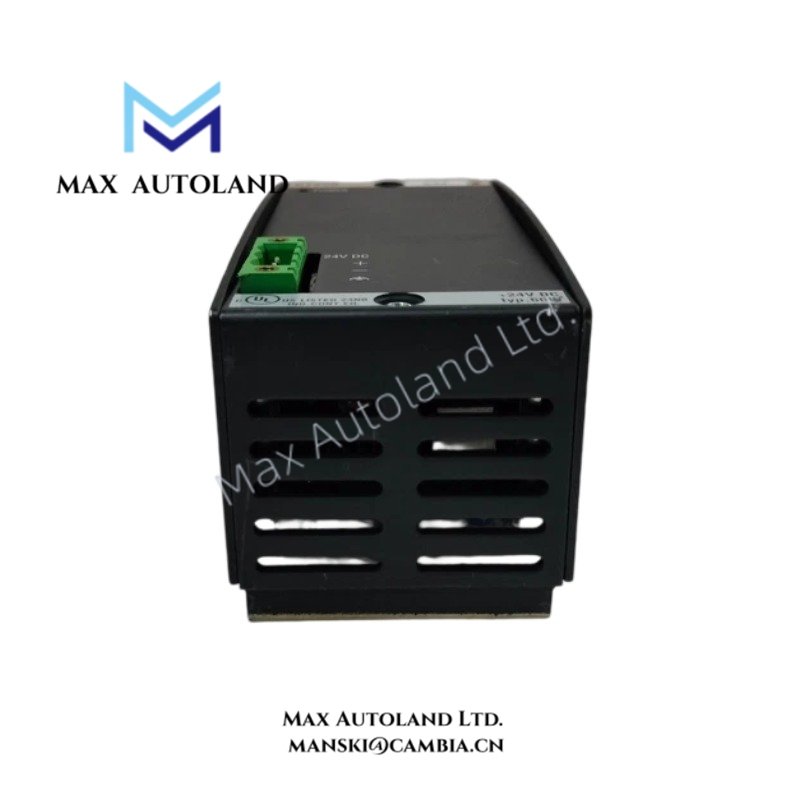

NT250 Bachmann Power Supply Module

Hardware Specifications

DC Output and Electrical Integration

The NT250 has a specified output voltage of 24 VDC and an output current rating of 6 A. The supplied information also lists a power rating of 60 W. These ratings should be checked against the manufacturer’s datasheet because 24 V multiplied by 6 A equals 144 W. The discrepancy must be resolved before determining the permissible continuous load.

During installation, verify the input voltage range, terminal assignments, output polarity, grounding requirements, and load characteristics. Confirm compatibility with the target Bachmann controller or hardware platform. Do not assume redundant power operation, hot-swap capability, galvanic isolation, or built-in overcurrent protection without supporting documentation.

Frequently Asked Questions

Q: What output voltage and current are specified for the Bachmann NT250?

A: The supplied product data lists 24 VDC and 6 A, alongside a 60 W power rating. Since these values do not agree mathematically, confirm the applicable rated output conditions with the manufacturer before connecting a load.

Q: Can the NT250 be replaced while the system remains energized?

A: Hot-swap support is not established by the available specifications. Isolate the relevant power sources and follow the manufacturer’s replacement procedure unless live replacement is explicitly permitted.

Q: Which electrical checks are required before commissioning?

A: Verify the module identity, input supply requirements, terminal assignments, output polarity, grounding, and load ratings. Measure the output under the manufacturer’s prescribed test conditions before connecting sensitive equipment.

Field Installation Guidelines

1. Confirm electrical ratings: Resolve the discrepancy between the listed 24 VDC, 6 A, and 60 W specifications before selecting the connected load.
2. Verify platform compatibility: Check the NT250 installation requirements and mounting interface against the applicable Bachmann system documentation.
3. Inspect wiring: Confirm terminal assignments, conductor ratings, polarity, and grounding before energizing the module.
4. Route cables appropriately: Keep power conductors separate from sensitive analog and communication wiring where practical.
5. Check the output: Measure the DC output using an appropriately rated meter and compare the result with the manufacturer’s specified limits.
6. Commission under controlled conditions: Energize the system according to the approved procedure and monitor for abnormal voltage variation, overheating, or unexpected shutdown.

The operating temperature range, input voltage range, isolation rating, protection functions, and hot-swap capability are not established by the supplied data. Obtain the applicable manufacturer documentation before finalizing the installation.
