Overview

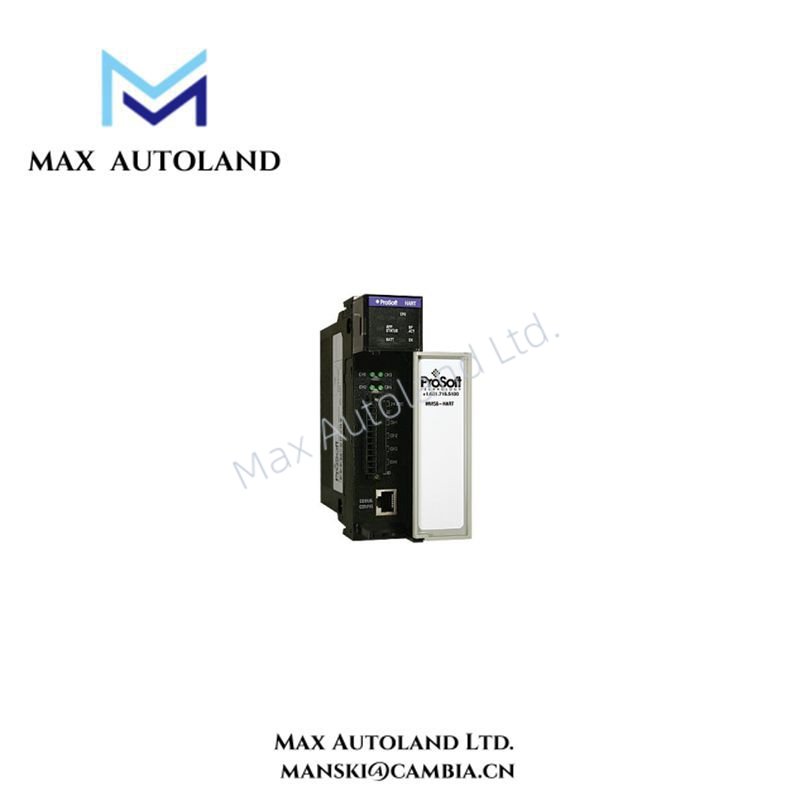

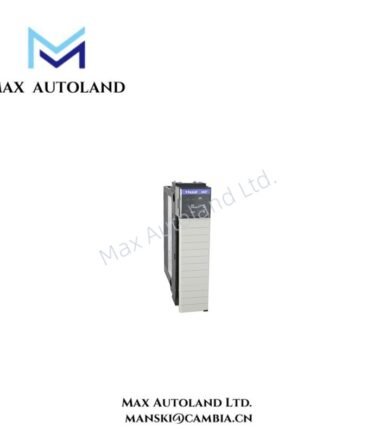

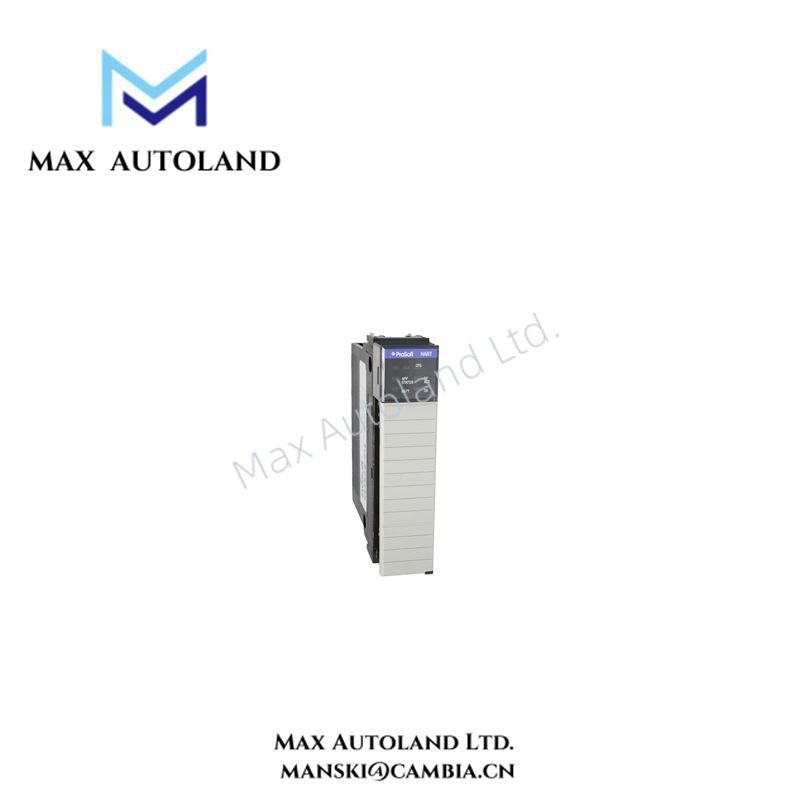

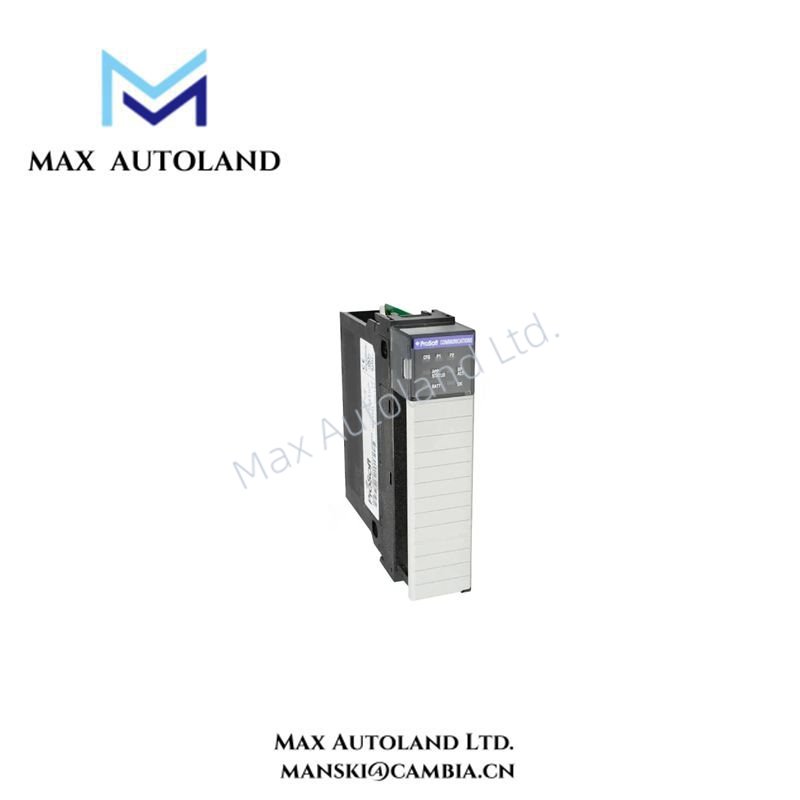

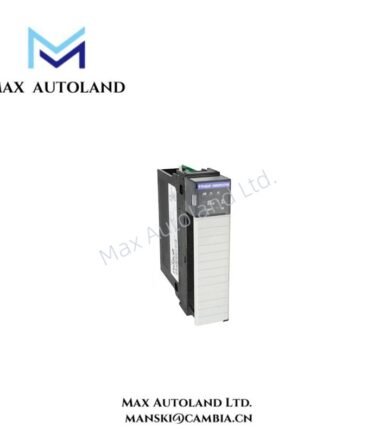

This module allows engineers to monitor, configure, and control up to 16 HART field devices per channel using a multi-drop network. With built-in diagnostics and advanced data mapping, the MVI56-HART enhances visibility and control over complex field operations. Furthermore, its modular design and rugged construction ensure consistent performance in harsh industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Model | MVI56-HART |
| Manufacturer | Rockwell Automation / ProSoft Technology |
| Number of Channels | 4 isolated channels |
| HART Devices per Channel | Up to 16 (multi-drop mode) |
| Communication Type | HART 5, 6, and 7 (Master/Slave) |
| Data Rate | 1200 bps |
| Power Supply | 5 VDC, 800 mA typical |
| Power Dissipation | 4 W typical |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity | 5% to 95%, non-condensing |
| Dimensions | 130 mm x 36 mm x 105 mm |
| Weight | 0.35 kg (0.77 lb) |
| Mounting Type | ControlLogix chassis slot |
| Certifications | CE, UL, C-Tick, and RoHS compliant |
FAQ
Yes, every MVI56-HART is 100% new, genuine, and factory-sealed.
Q2: How fast can you ship this product?
We have stock available. Orders typically ship within 3 days to 2 weeks, depending on quantity.
Q3: What shipping methods do you use?
We use DHL, FedEx, and UPS to ensure fast and reliable global delivery.
Q4: What if there is a quality issue?
We support a 30-day return policy for any product-related issues.
Q5: Can the MVI56-HART communicate with multiple HART devices simultaneously?
Yes, it supports up to 16 devices per channel across four channels, allowing up to 64 total devices in a single module.
