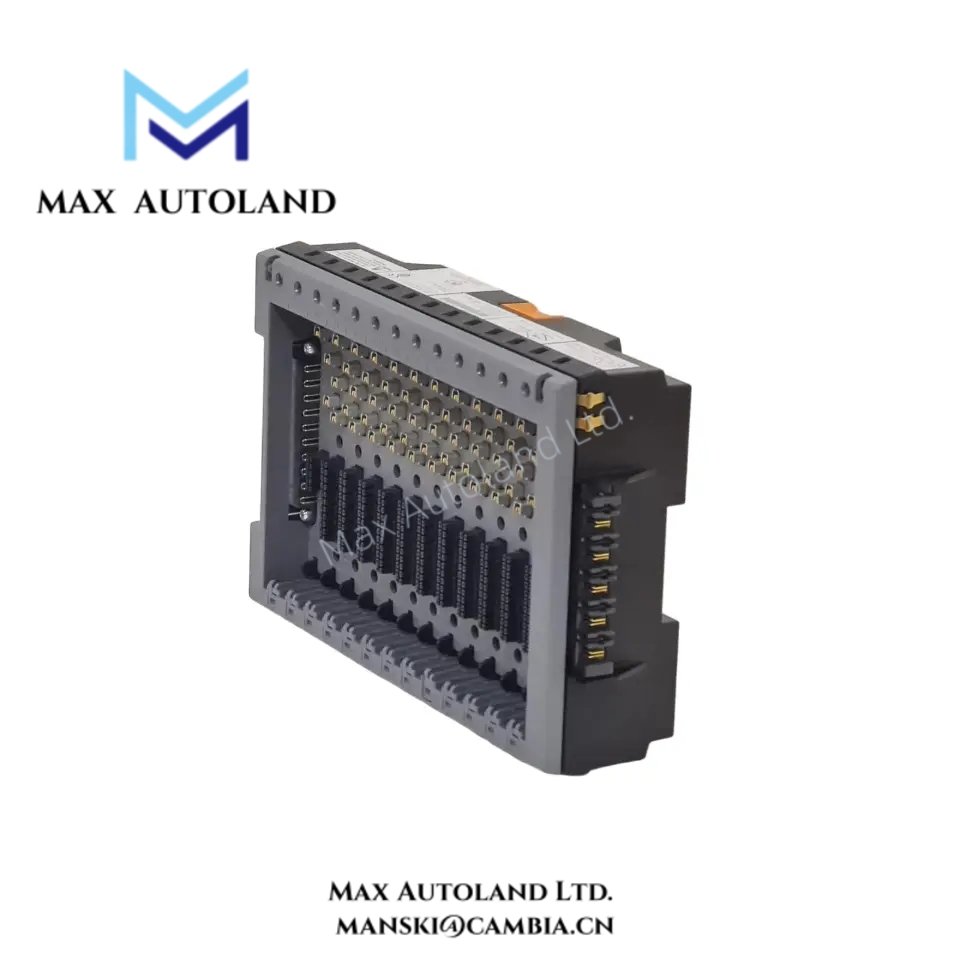

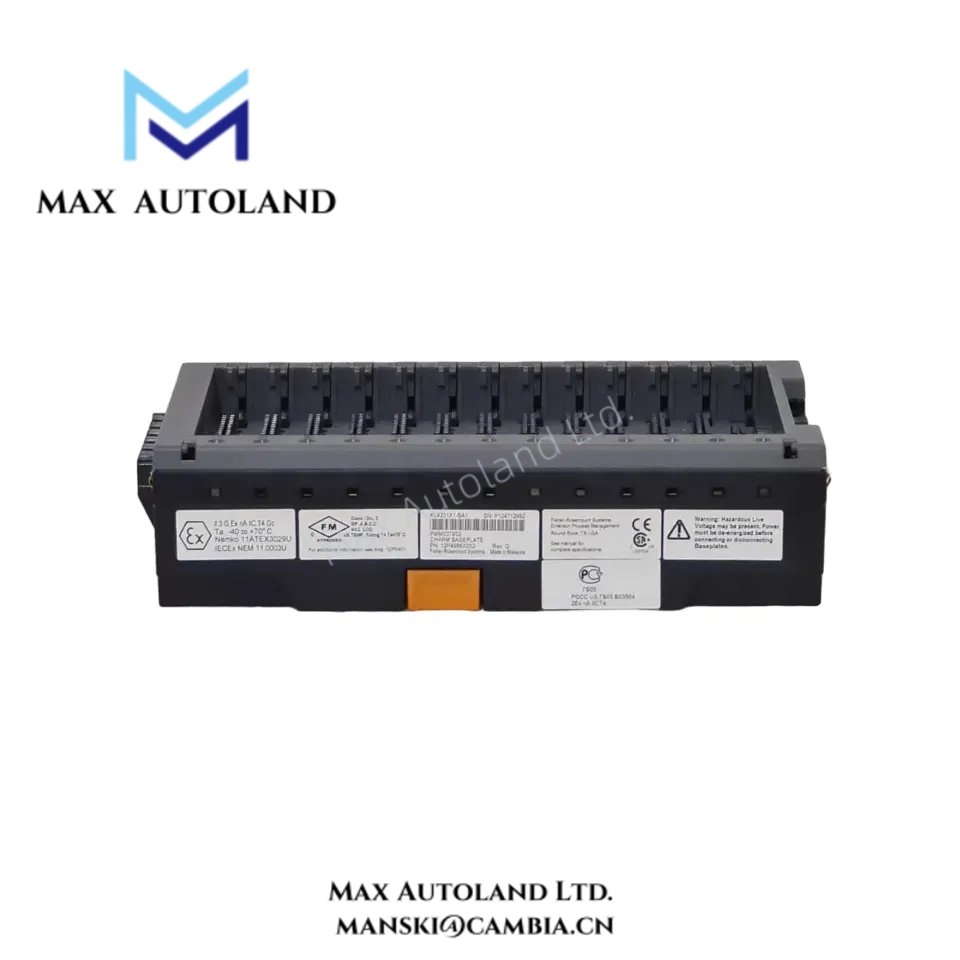

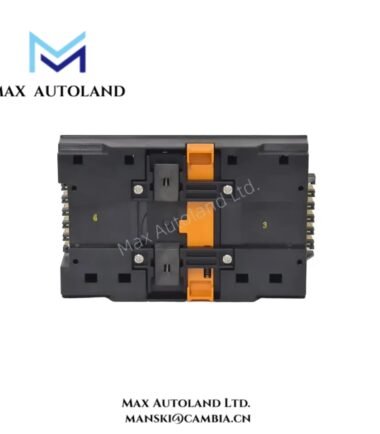

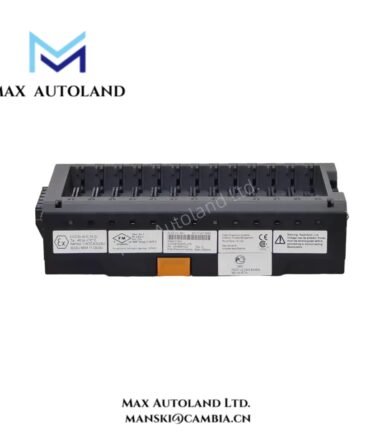

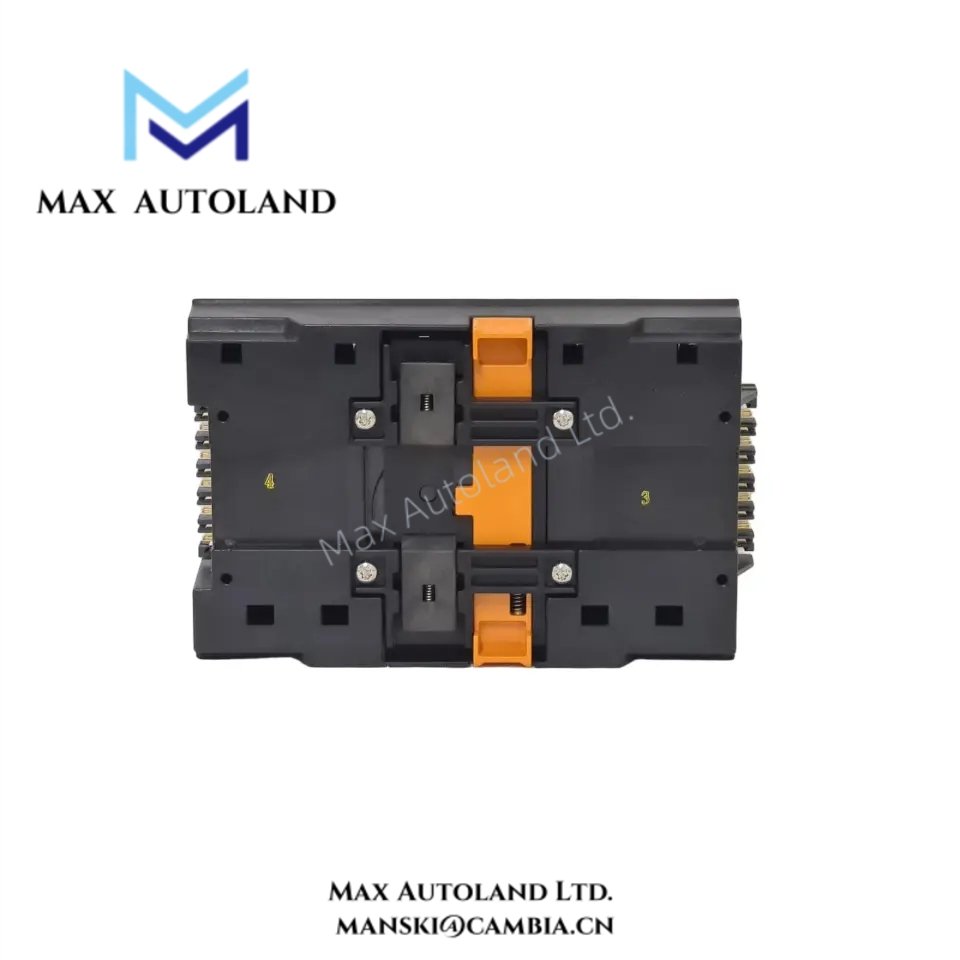

Overview
Designed specifically for DeltaV Electronic Marshalling systems, it ensures secure mechanical mounting and consistent electrical connectivity.
Moreover, the baseplate supports flexible system design, therefore enabling scalable I/O deployment without traditional marshalling complexity.
Specification
| Parameter | Specification |
|---|---|
| Brand | Emerson Automation Solutions |
| Model | KL4201X1-BA1 |
| Product Type | DeltaV CHARM Baseplate |
| System Platform | DeltaV Electronic Marshalling I/O Subsystem |
| Primary Function | Mechanical mounting and electrical interfacing for DeltaV CHARMs |
| Supported Modules | DeltaV Channel Characterization Modules (CHARMs) |
| CHARM Bus Supply | 6.3 V DC, up to 4 A (CHARM internal bus power) |
| Field Circuit Supply | 24 V DC, up to 10 A (field I/O power capacity) |
| Input Power Range | 18 V DC to 32 V DC |
| Typical Power Consumption | Approximately 50 W |
| Electrical Isolation | 1500 V AC isolation between bus and baseplate |
| Mounting Method | DIN rail or control cabinet mounting |
| Wiring Method | Direct termination to CHARM terminals |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5 % to 95 %, non-condensing |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Shock Resistance | 10 g, 11 ms, half-sine pulse |
| Airborne Contaminants | ISA-S71.04 Class G3 |
| Hazardous Area Rating | ATEX II 3G Ex ec IIC Gc (Zone 2) |
| Certifications | ATEX, IECEx, FM, UKEX (configuration dependent) |
| Channels per Baseplate | Typically supports up to 12 CHARM channels |
| Installation Location | Control cabinets or approved industrial enclosures |
| Design Concept | Modular and scalable electronic marshalling architecture |
| Service Life | Designed for continuous long-term industrial operation |
| Typical Use Case | Flexible I/O deployment in DeltaV process automation systems |
FAQ
A1: It provides mechanical mounting and electrical connection for DeltaV CHARMs within Electronic Marshalling systems.Q2: Is this baseplate compatible with all DeltaV CHARMs?
A2: Yes, it supports standard DeltaV Channel Characterization Modules used across DeltaV I/O configurations.
Q3: Can the baseplate be installed in hazardous areas?
A3: Yes, it is designed to meet applicable hazardous-area and ATEX-related installation requirements when properly configured.
Q4: How does this baseplate simplify system expansion?
A4: Engineers can add or change CHARMs without cabinet rewiring, therefore reducing downtime and modification costs.
Q5: Which industries typically use this CHARM Baseplate?
A5: It is commonly used in oil and gas, chemicals, power generation, and large-scale process manufacturing facilities.
