Overview

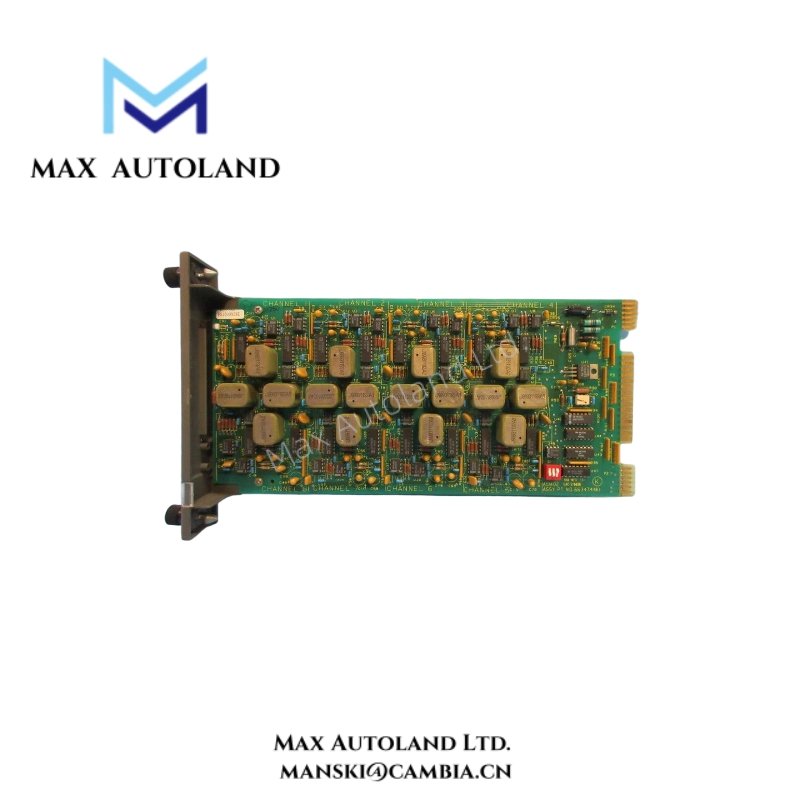

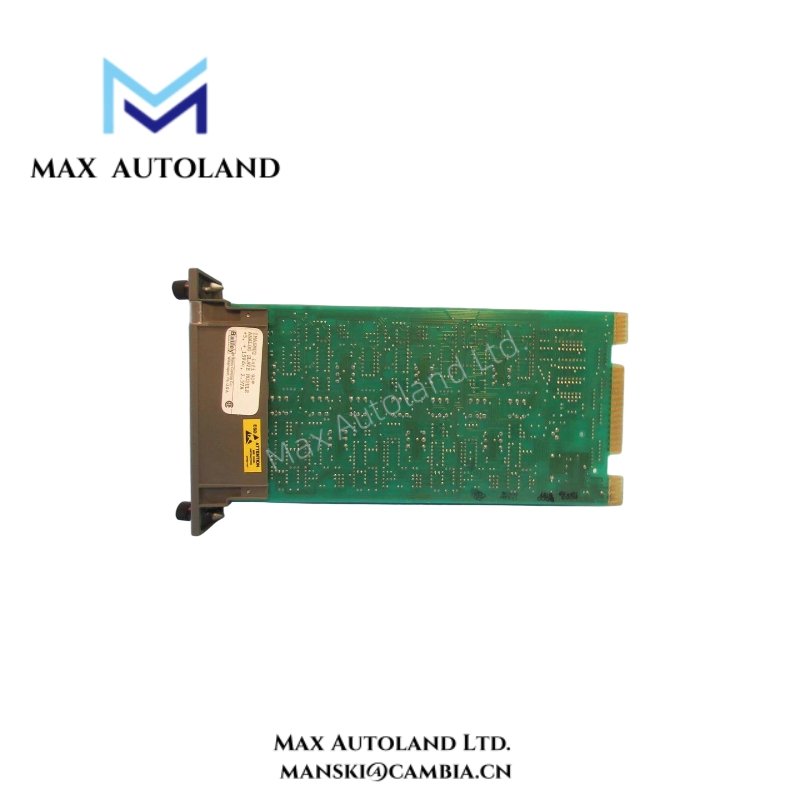

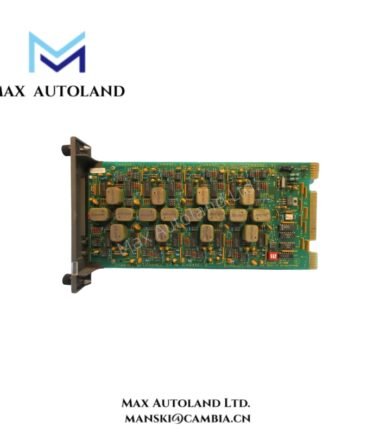

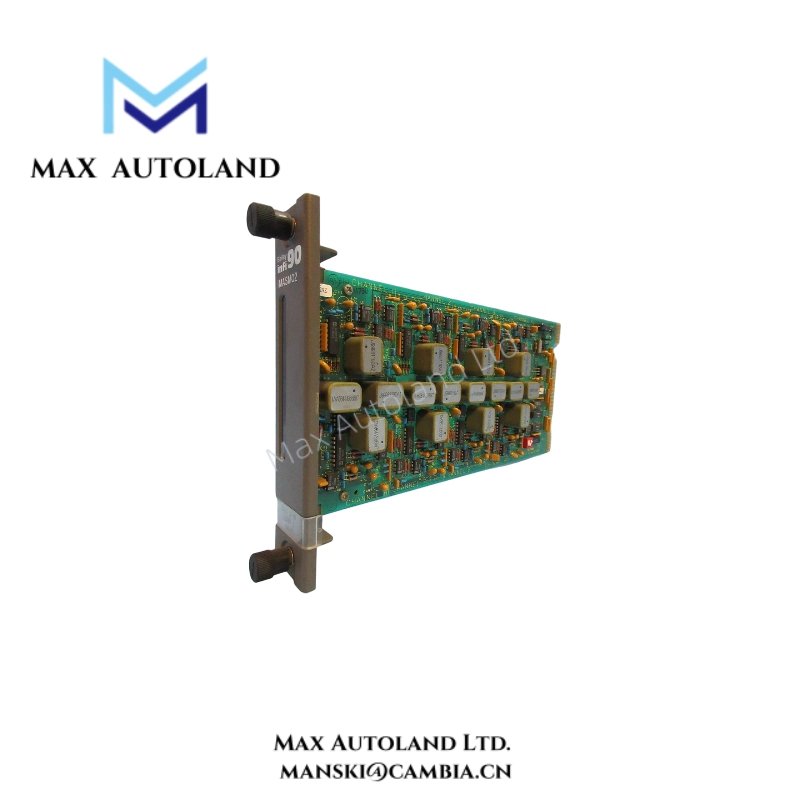

The ABB IMASM02 Analog Slave Module ensures reliable analog signal acquisition and conversion for Infi 90 and Net 90 systems. In addition, it allows multiple analog field signals to communicate seamlessly with distributed control systems. Moreover, its compact design facilitates easy installation within control racks while maintaining clear channel organization. Engineers appreciate this module because it improves signal accuracy and simplifies system wiring. Furthermore, its rugged construction guarantees consistent performance in demanding industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Model | IMASM02 |
| Brand | ABB Bailey Infi 90 / Net 90 |
| Module Type | Analog Slave Module |
| Input Channels | Multiple analog input channels (4–20 mA) |
| Output Type | Digital output to DCS / controller |
| Signal Conversion | Analog-to-digital conversion with high precision |
| Accuracy | ±0.1% of full scale |
| Resolution | 12-bit ADC |
| Communication Protocol | Compatible with Infi 90 / Net 90 bus systems |
| Power Supply | 24 V DC nominal |
| Power Consumption | 4 W typical |
| Mounting | Rack-mounted or panel-mounted |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -20–70°C (-4–158°F) |
| Humidity | 5–95% RH non-condensing |
| LED Status Indicators | Yes, for power and channel activity |
| Isolation | Channel-to-channel isolation for signal integrity |
| Dimensions (HxWxD) | 150 x 80 x 120 mm |
| Weight | 1.1 kg |
| Certifications | CE, UL, CSA compliant |
| Environmental Compliance | RoHS and REACH |
FAQ
Q1: What type of signals does the IMASM02 support?
It supports multiple 4–20 mA analog input channels and provides digital output to the DCS.
Q2: Is the module compatible with Infi 90 and Net 90 systems?
Yes, it integrates seamlessly with both ABB Infi 90 and Net 90 distributed control systems.
Q3: Can it handle multiple analog channels simultaneously?
Yes, the module supports multiple analog input channels for comprehensive process monitoring.
Q4: Are there status indicators for diagnostics?
Yes, LED indicators provide real-time operational and channel activity information.
Q5: Is the module suitable for harsh industrial environments?
Yes, it is built to maintain reliable operation in demanding conditions.
