Overview

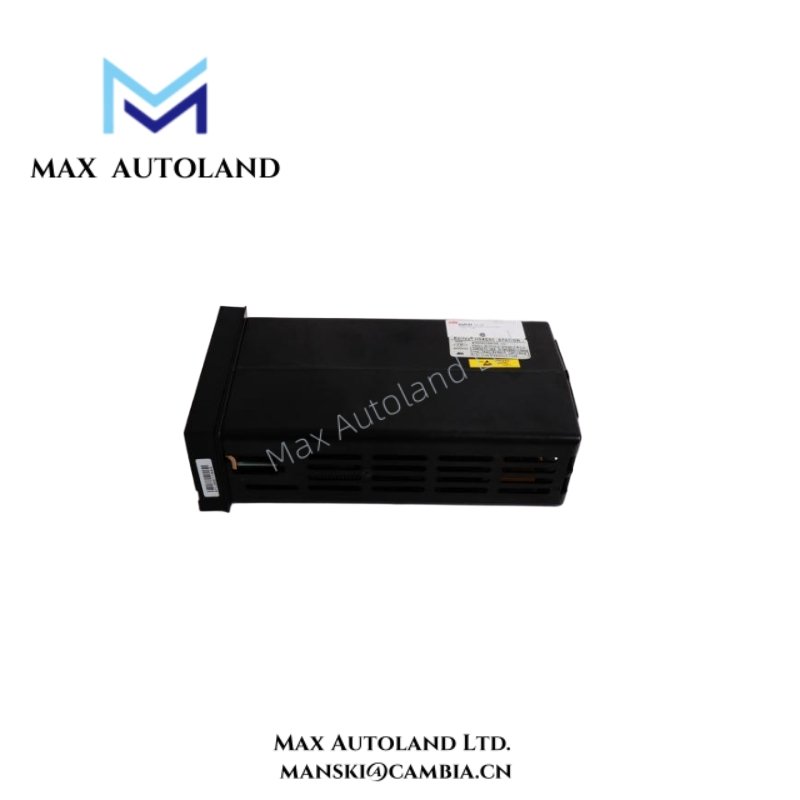

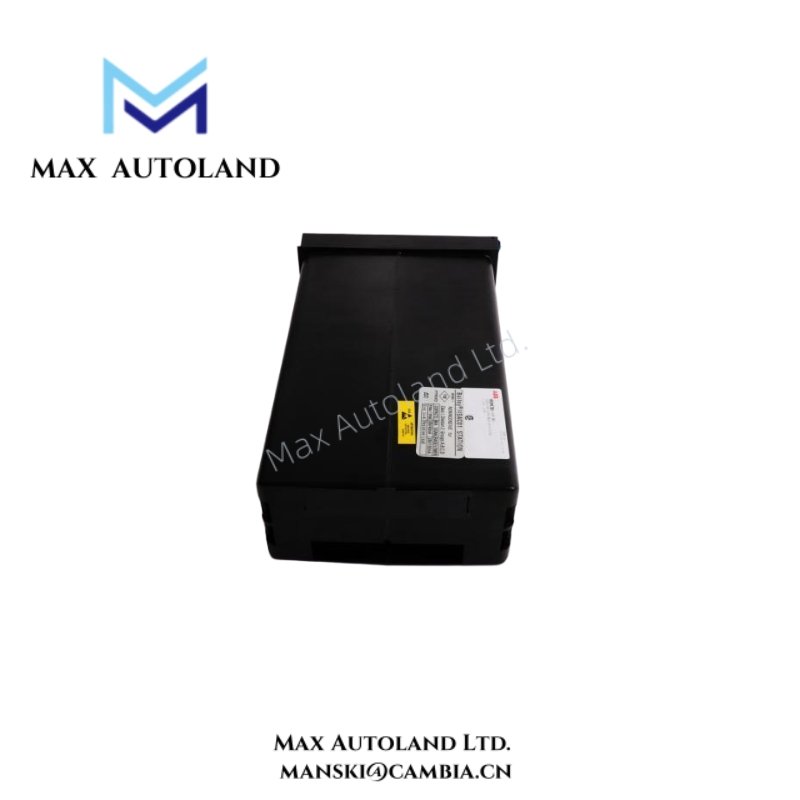

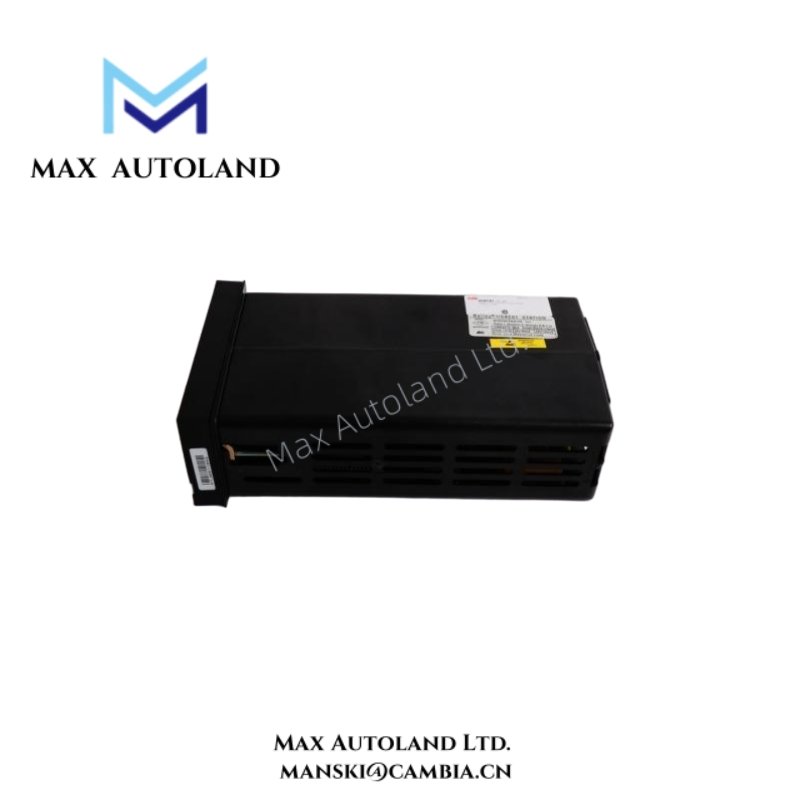

The ABB IISAC01 Analog Control Station provides reliable analog control for Infi 90 and Net 90 systems. In addition, it allows operators to monitor and adjust process variables directly from the control panel. Moreover, its modular design ensures straightforward installation and easy integration into existing racks or distributed control systems. Engineers value this station because it enhances operational efficiency while maintaining precise analog control. Furthermore, the robust construction guarantees consistent performance in demanding industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Model | IISAC01 |
| Brand | ABB Bailey Infi 90 / Net 90 |
| Module Type | Analog Control Station |
| Input Channels | Up to 12 analog input channels |
| Output Type | 4–20 mA analog control signals |
| Operator Interface | Push buttons, rotary knobs, and adjustable setpoints |
| Power Supply | 24 V DC nominal |
| Power Consumption | 5 W typical, 6 W maximum under full load |
| Mounting | Rack-mounted or panel-mounted |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -20–70°C (-4–158°F) |
| Humidity | 5–95% RH non-condensing |
| Response Time | <50 ms typical per channel |
| Accuracy | ±0.1% of full scale |
| Resolution | 12-bit analog-to-digital conversion |
| Isolation | Channel-to-channel and power isolation for signal integrity |
| LED Status Indicators | Yes, for channel and system status |
| Dimensions (HxWxD) | 150 x 120 x 80 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, CSA compliant for industrial safety |
| Enclosure Type | IP20 rated, industrial panel housing |
| Environmental Compliance | RoHS and REACH compliant |
FAQ
Q1: How many analog channels does the IISAC01 support?
It supports up to 12 analog input channels for process monitoring and control.
Q2: What type of output signals does it provide?
It provides analog control signals in the 4–20 mA range.
Q3: Can it be integrated with existing Infi 90 or Net 90 systems?
Yes, it integrates seamlessly with both Infi 90 and Net 90 distributed control systems.
Q4: Does the module include indicators for status monitoring?
Yes, LED indicators provide real-time channel and system status.
Q5: Is it suitable for harsh industrial environments?
Yes, the IISAC01 is designed for reliable operation in demanding conditions.
