Overview

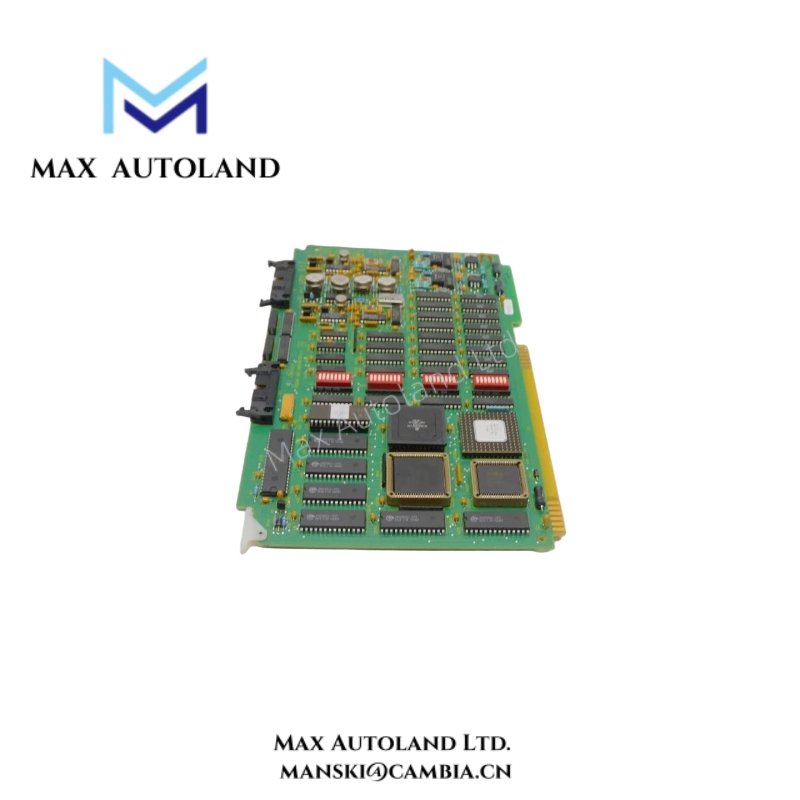

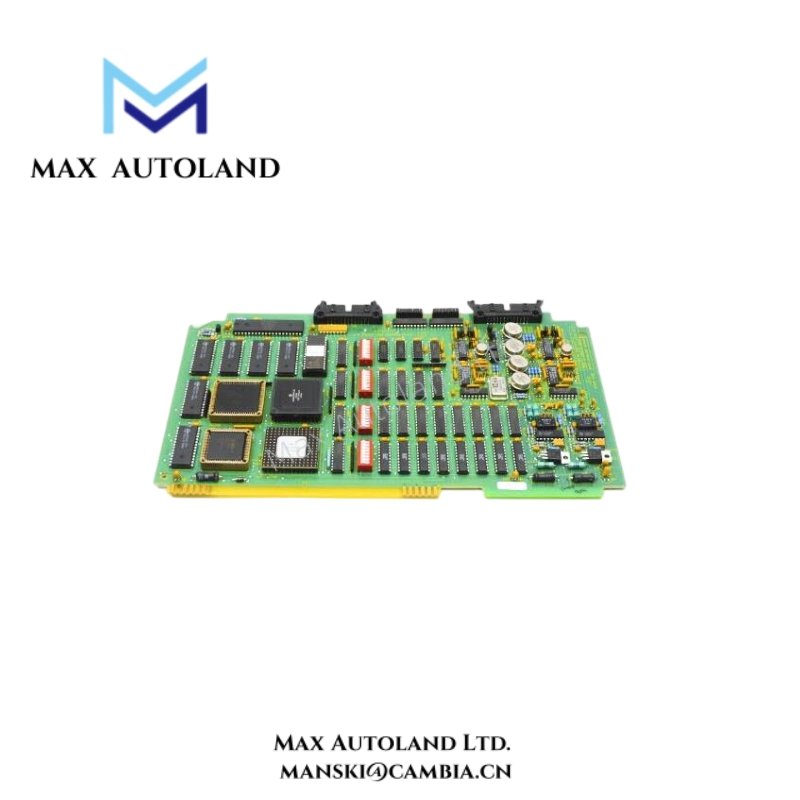

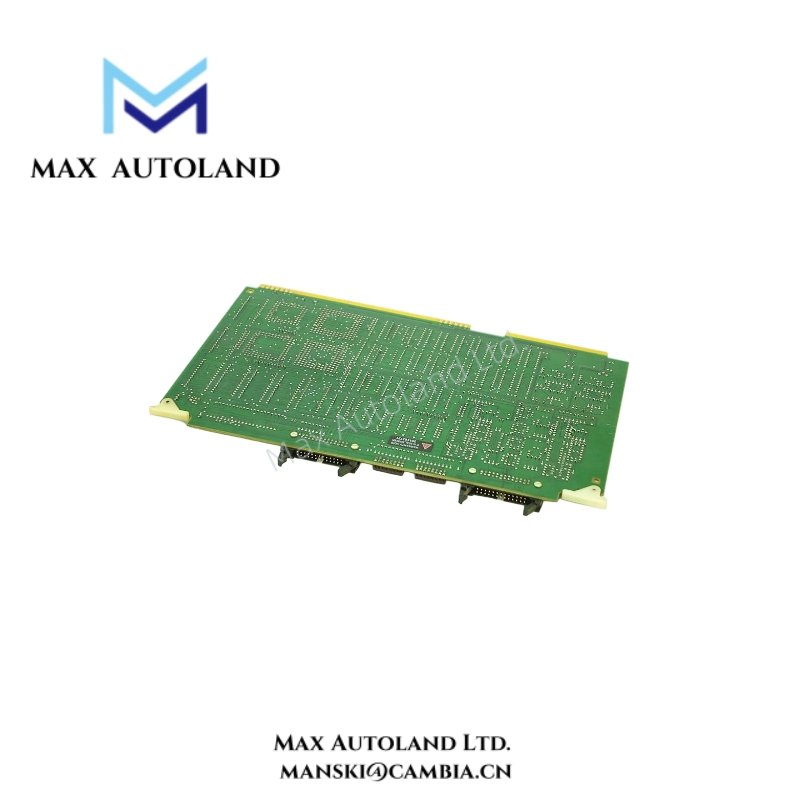

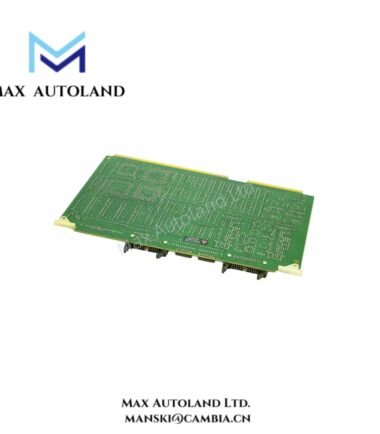

The ABB IIMLM01 Loop Interface Module provides seamless communication and analog signal management for Infi 90 and Net 90 systems. In addition, it facilitates accurate interface between field devices and the distributed control system. Moreover, its compact and modular design allows straightforward integration into control racks. Engineers value this module because it simplifies loop wiring and ensures precise analog signal conversion. Furthermore, its robust construction supports reliable performance under harsh industrial conditions.
Specification
| Parameter | Specification |
|---|---|
| Model | IIMLM01 |
| Brand | ABB Bailey Infi 90 / Net 90 |
| Module Type | Loop Interface Module |
| Input Channels | Supports multiple 4–20 mA analog input loops |
| Output Channels | Provides corresponding analog outputs for DCS |
| Signal Conversion | 4–20 mA to digital and back with high precision |
| Accuracy | ±0.1% of full scale |
| Resolution | 12-bit analog-to-digital conversion |
| Communication Protocol | Compatible with Infi 90 / Net 90 bus systems |
| Power Supply | 24 V DC nominal |
| Power Consumption | 4 W typical |
| Mounting | Rack-mounted or panel-mounted |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -20–70°C (-4–158°F) |
| Humidity | 5–95% RH non-condensing |
| LED Status Indicators | Yes, for power and loop activity |
| Isolation | Channel-to-channel isolation for signal integrity |
| Dimensions (HxWxD) | 150 x 80 x 120 mm |
| Weight | 1.1 kg |
| Certifications | CE, UL, CSA compliant |
| Environmental Compliance | RoHS and REACH |
FAQ
Q1: What type of signals does the IIMLM01 handle?
It handles 4–20 mA analog input and output signals for process loops.
Q2: Is the module compatible with Infi 90 and Net 90 systems?
Yes, it integrates seamlessly with both ABB Infi 90 and Net 90 distributed control systems.
Q3: Can it monitor multiple analog loops simultaneously?
Yes, it supports multiple analog input and output channels.
Q4: Are there indicators for diagnostics?
Yes, LEDs show power status and loop activity for easy monitoring.
Q5: Is it suitable for harsh industrial environments?
Yes, the module is designed for reliable operation under demanding industrial conditions.
