Overview

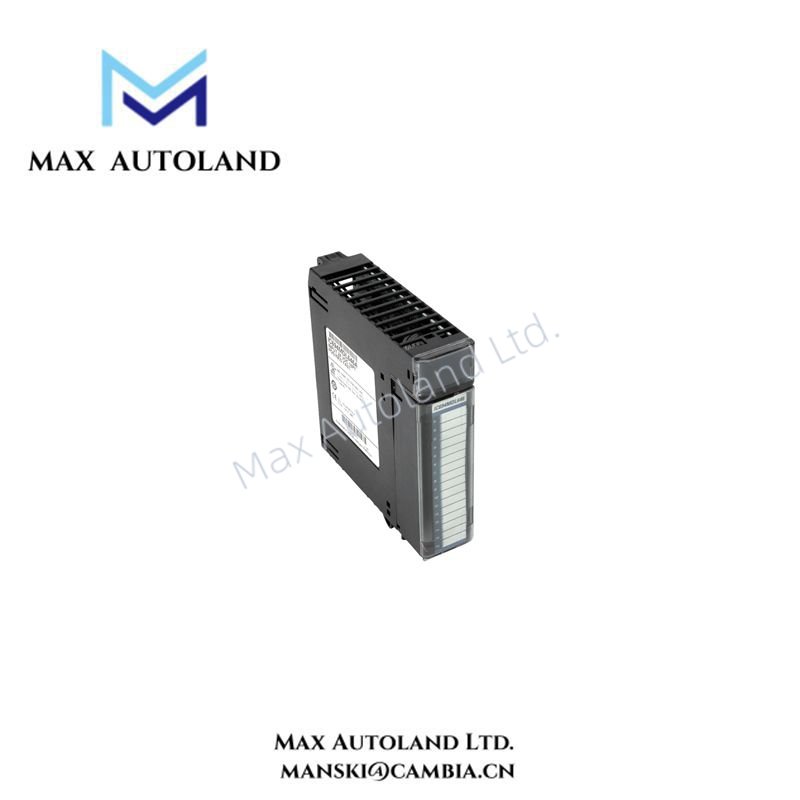

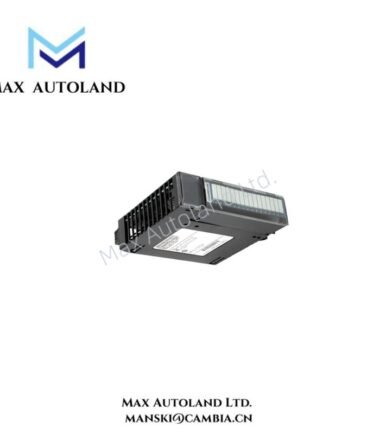

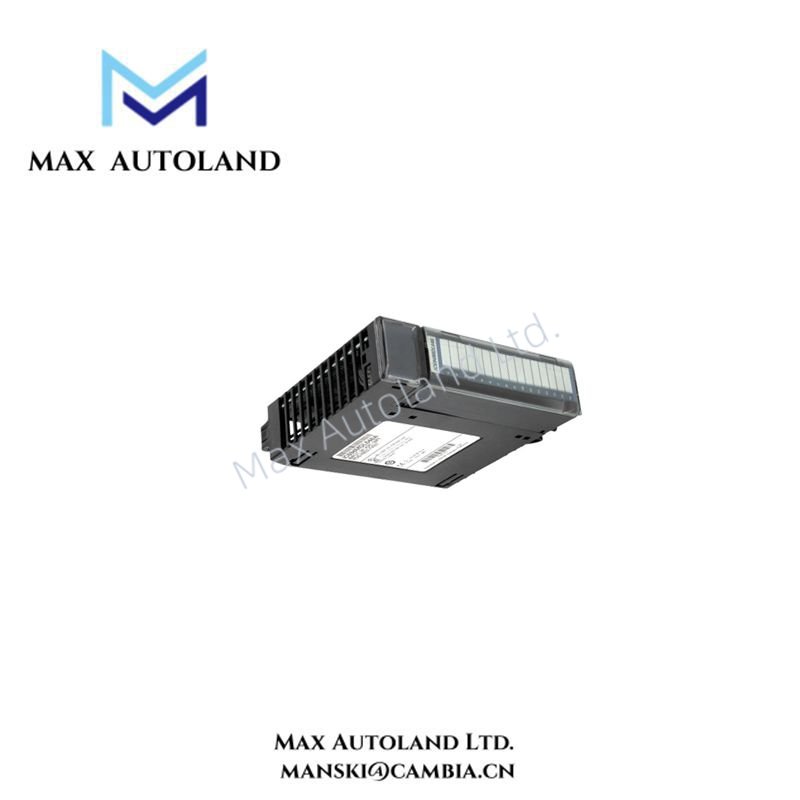

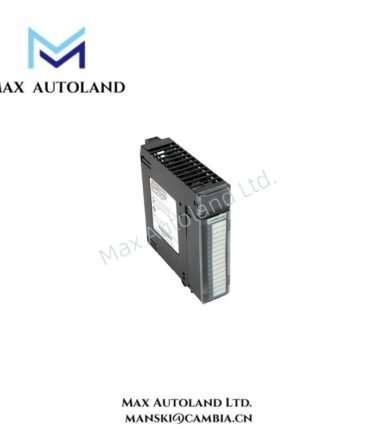

Engineered for demanding environments, the IC694MDL646 ensures accurate input detection while minimizing noise interference. Furthermore, the module provides rapid response times, making it highly suitable for fast-paced control operations where precise data acquisition is essential.
Specification
| Specification | Detail |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Model | IC694MDL646 |
| Series | RX3i / Field Control |
| Module Type | DC Voltage Input |
| Input Points | 32 channels |
| Input Voltage Range | 0 to 30 VDC |
| Rated Input Voltage | 24 VDC nominal |
| Logic Type | Supports positive and negative logic |
| Input Current | 7 mA at 24 VDC |
| Isolation | 250 V RMS between field side and logic side |
| Response Time | Less than 1 ms typical |
| Connector Type | Terminal block interface |
| Dimensions (W × H × D) | 130 mm × 100 mm × 35 mm (5.1 × 3.9 × 1.4 in) |
| Weight | Approx. 0.45 kg (1.0 lb) |
| Operating Temperature | 0 °C to 60 °C |
| Compatibility | PACSystems RX3i, IC694 Series |
FAQ
A: Yes, every unit we provide is factory-sealed and original from the manufacturer.
Q: Do you stock the IC694MDL646 DC input module?
A: Yes, we keep it in inventory, with delivery times ranging from 3 days to 2 weeks based on order size.
Q: Which shipping carriers do you use for this product?
A: We usually ship with DHL, UPS, or FedEx to ensure timely global delivery.
Q: How many input channels does the IC694MDL646 support?
A: The module includes 32 channels, suitable for dense automation systems.
Q: What is the isolation rating of this module?
A: The IC694MDL646 provides 250 V RMS isolation between field and logic sides.
Q: Can I return the module if it fails during use?
A: Yes, we support returns within 30 days for confirmed quality-related issues.
